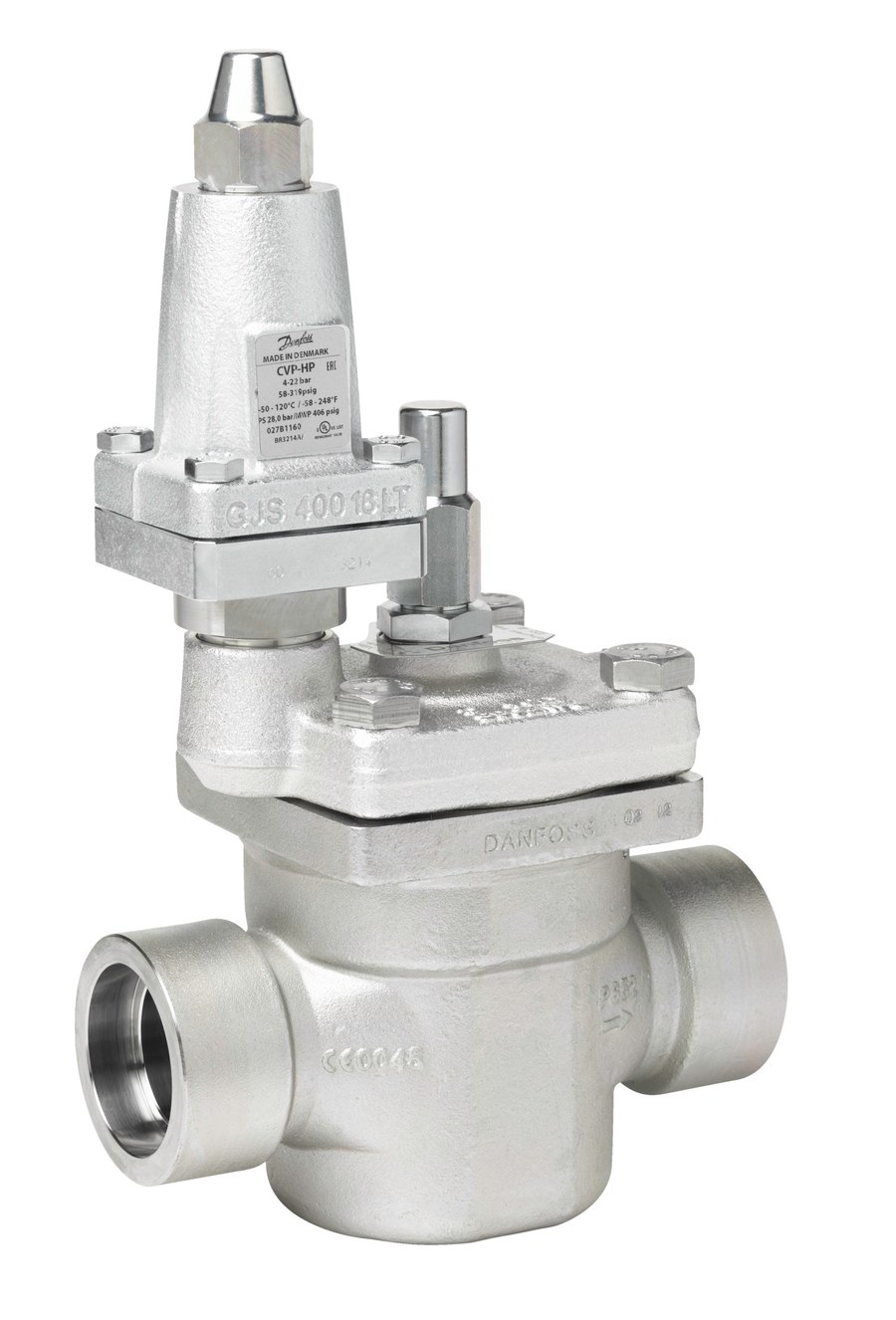

Danfoss ICS1 32 pilot-operated servo valve, 32 mm (1 1/4 in) butt weld (EN 10220), steel, Kv 17 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICS1 32 pilot-operated servo main valve (code 027H3020) for industrial refrigeration. Straightway steel body with butt weld connections both ends, 32 mm (1 1/4 in), to EN 10220; flow coefficient Kv 17 m³/h (Cv 20 gal/min). The ICS 1 main valve carries a single pilot function module on its top cover, setting one control function (constant pressure, solenoid on/off, differential-pressure or other pilot, ordered separately). Maximum working pressure 65 bar (943 psig); media temperature -60 to +120 °C (-76 to 248 °F). Suitable for R717 (ammonia), R744 (CO₂), HFC and hydrocarbon refrigerants and their oils. Specifications per Danfoss store code 027H3020.
Technical Specifications
- Type
- ICS1 32 pilot-operated servo valve
- Code number
- 027H3020
- Size
- 32 mm (1 1/4 in)
- Direction
- Straightway
- Inlet/outlet connection
- Butt weld, steel, EN 10220
- Inlet/outlet connection size
- 32 mm (1 1/4 in)
- Kv value
- 17 m³/h (Cv 20 gal/min)
- Body material
- Steel
- Connection material
- Steel
- Surface coating
- Zn (TLP)
- Valve operation
- Pilot operated (single pilot function module on top cover)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 °C (-76 to 248 °F)
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R410A, R22, R290, R32, R1234ze(E) and other listed refrigerants
- PED category
- II
- Approvals
- EAC (LLC CDC EURO-TYSK), TÜV, UL (Refrigerant Valve 53R0)
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428236027
- Net weight
- 5.258 Kilogram
- Product group
- Press. and temp. regul. valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection Code
- (2001:D26:32)
- Connection standard
- EN 10220
- Cv value [gal/min]
- 20 gal/min
- EU RoHS compliance
- Yes
- Ext pilot pressure connection
- Weld nipple (P2 Port)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/4 in
- Inlet connection size [mm]
- 32 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 17 m³/h
- Manual operation option
- Manual open spindle
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Opening configuration
- Closed (delta p=0 bar)
- Outlet connection size [in]
- 1 1/4 in
- Outlet connection size [mm]
- 32 mm
- Outlet connection type
- Butt weld
- Pressure gauge connection
- Int. thread with blind plug
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Top cover
- 1 function module
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 32 mm (1 1/4 in)
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss ICS 1 single-pilot servo main valve for industrial refrigeration. Function is set by the pilot module(s) fitted to the top cover. Select by Kv/cone (ICS1 32) and connection (Butt weld EN 10220); the butt-weld, socket-weld and solder variants of the same cone are separate codes. Verify Kv, pilot configuration and refrigerant compatibility against your duty before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICS1 32 pilot-operated servo valve, 32 mm (1 1/4 in) butt weld (ASME B 36.10M Schedule 80), steel, Kv 17 m³/h
027H3021
Danfoss
Danfoss ICS3 32 pilot-operated servo valve, 32 mm (1 1/4 in) butt weld (EN 10220), steel, Kv 17 m³/h
027H3030
Danfoss
Danfoss ICS3 32 pilot-operated servo valve, 32 mm (1 1/4 in) butt weld (ASME B 36.10M Schedule 80), steel, Kv 17 m³/h
027H3031
Danfoss

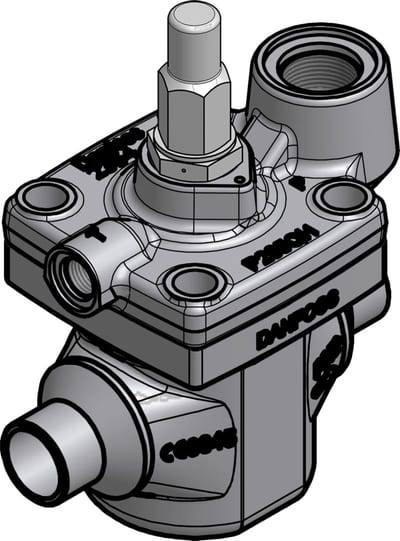

Danfoss ICS1 32 pilot-operated servo valve, butt weld DN32 (1¼ in), EN 10220, steel, Kv 17 m³/h
027H3144
Danfoss
Danfoss ICS1 40 pilot-operated servo valve, butt weld DN40 (1½ in), EN 10220, steel, Kv 27 m³/h
027H4144
Danfoss
Danfoss ICS1 50 pilot-operated servo valve, butt weld 2 in (50 mm), EN 10220, steel, Kv 44 m³/h
027H5144
Danfoss
Danfoss ICS1 65 pilot-operated servo valve, butt weld 2½ in (65 mm), EN 10220, steel, Kv 70 m³/h
027H6144
Danfoss

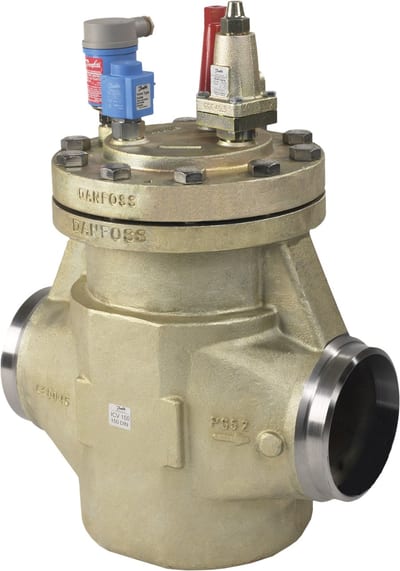

Danfoss ICS 100 pilot-operated servo valve, butt weld 4 in (100 mm), ASME B 36.10M Sch 40, steel, Kv 142 m³/h
