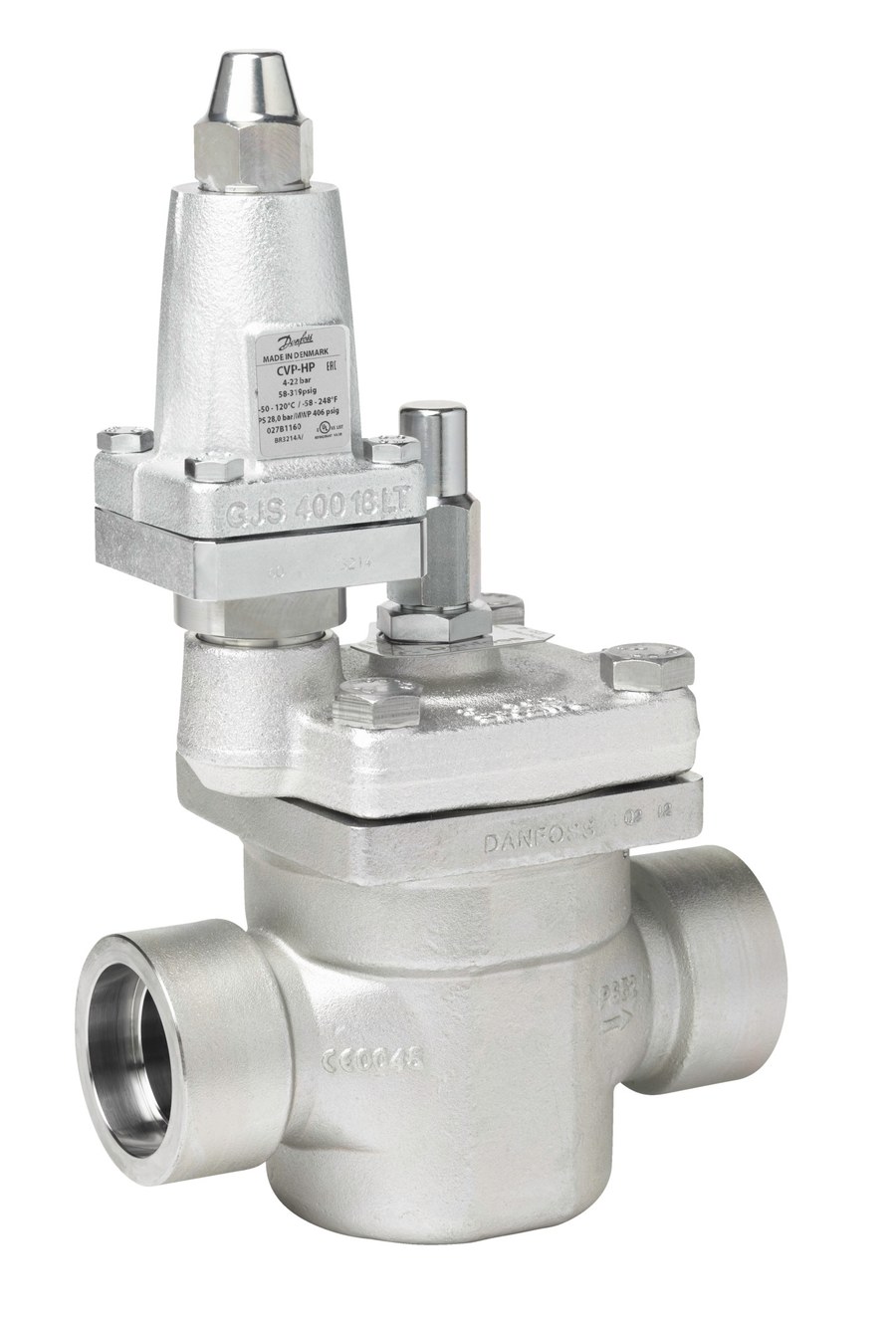

Danfoss ICS1 32 pilot-operated servo valve, 32 mm (1 1/4 in) butt weld (ASME B 36.10M Schedule 80), steel, Kv 17 m³/h (code 027H3021)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICS1 32 pilot-operated servo main valve (code 027H3021) for industrial refrigeration. Straightway steel body with butt weld connections both ends, 32 mm (1 1/4 in), to ASME B 36.10M Schedule 80; flow coefficient Kv 17 m³/h (Cv 20 gal/min). The ICS 1 main valve carries a single pilot function module on its top cover, setting one control function (constant pressure, solenoid on/off, differential-pressure or other pilot, ordered separately). Maximum working pressure 65 bar (943 psig); media temperature -60 to +120 °C (-76 to 248 °F). Suitable for R717 (ammonia), R744 (CO₂), HFC and hydrocarbon refrigerants and their oils. Specifications per Danfoss store code 027H3021.
Specifications
- Part number
- 027H3021
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 °C
- Standard
- ASME B 36.10M Schedule 80
- Standard size
- 32 mm (1 1/4 in)
Compatibility
Danfoss ICS 1 single-pilot servo main valve for industrial refrigeration. Function is set by the pilot module(s) fitted to the top cover. Select by Kv/cone (ICS1 32) and connection (Butt weld ASME B 36.10M Schedule 80); the butt-weld, socket-weld and solder variants of the same cone are separate codes. Verify Kv, pilot configuration and refrigerant compatibility against your duty before ordering.
Standards
- ASME B 36.10M Schedule 80
- EU RoHS
Approvals
