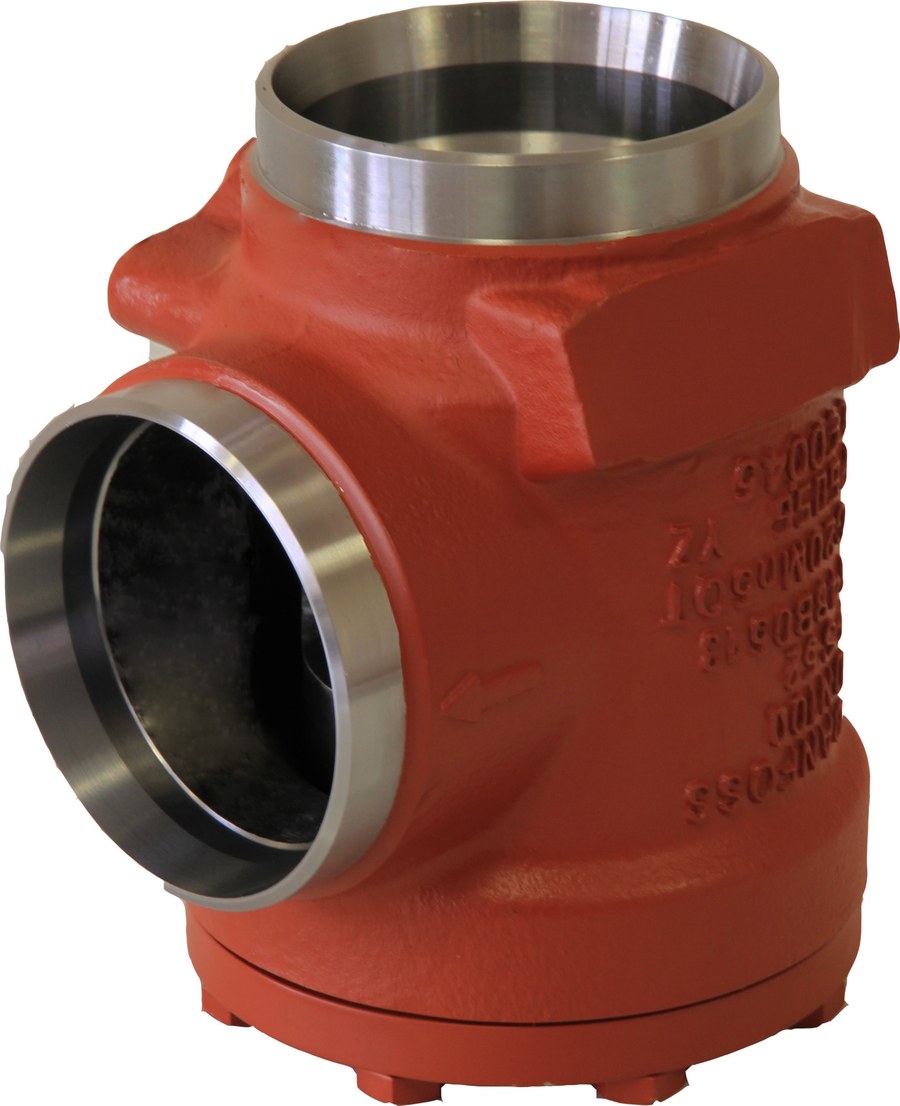

Danfoss FIA 100 angleway strainer housing, 100 mm (4 in) butt weld EN 10220, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 100 angleway strainer housing for industrial refrigeration, code 148B6006. Steel body with butt weld connections to EN 10220, nominal size 100 mm (4 in), used to protect valves, pumps and compressors from pipe-scale and debris. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient with standard µ150 plain insert Kv 162.4 m3/h (Cv 187.7 gal/min); higher Kv with pleated inserts. Filter insert ordered separately. Part of the Danfoss SVL Flexline programme; for R717 (ammonia), R744 (CO2) and fluorinated refrigerants.
Technical Specifications
- Type
- FIA 100 strainer housing (SVL Flexline)
- Code number
- 148B6006
- Series
- FIA
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- EN 10220
- Nominal size
- 100 mm (4 in)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value (µ150 plain insert)
- 162.4 m3/h (Cv 187.7 gal/min); higher with µ250/µ500 and pleated inserts
- Note
- filter insert ordered separately
- Applicable media
- R717 (ammonia), R744 (CO2), HCFC/HFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category II (DN 100)
- Approvals
- CE
- EAN
- 5702428476577
- Net weight
- 11.9 Kilogram
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2001:D36:100)
- Connection material
- Steel
- Cv value [gal/min] 100 plain
- 715.03 gal/min
- Cv value [gal/min] 100 pleated
- 883.22 gal/min
- Cv value [gal/min] 38 plain
- 774.9 gal/min
- Cv value [gal/min] 38 pleated
- 957.18 gal/min
- Cv value [gal/min] 72 plain
- 737.48 gal/min
- Cv value [gal/min] 72 pleated
- 910.95 gal/min
- Equipment
- Cover
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 4 in
- Inlet connection size [mm]
- 100 mm
- Inlet connection type
- Butt weld
- Kv value [m3/h] µ150 plain
- 162.4 m³/h
- Kv value [m3/h] µ150 pleated
- 200.6 m³/h
- Kv value [m3/h] µ250 plain
- 167.5 m³/h
- Kv value [m3/h] µ250 pleated
- 206.9 m³/h
- Kv value [m3/h] µ500 plain
- 176 m³/h
- Kv value [m3/h] µ500 pleated
- 217.4 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 4 in
- Outlet connection size [mm]
- 100 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 100 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA 100 strainer housing. Select by direction (angleway) and connection standard (EN 10220); order the filter insert (µ150 / µ250 / µ500, plain or pleated) separately. Shares the SVL Flexline platform with SVA-S/SVA-L, SCA-X/CHV-X and REG valves of the same nominal size.
