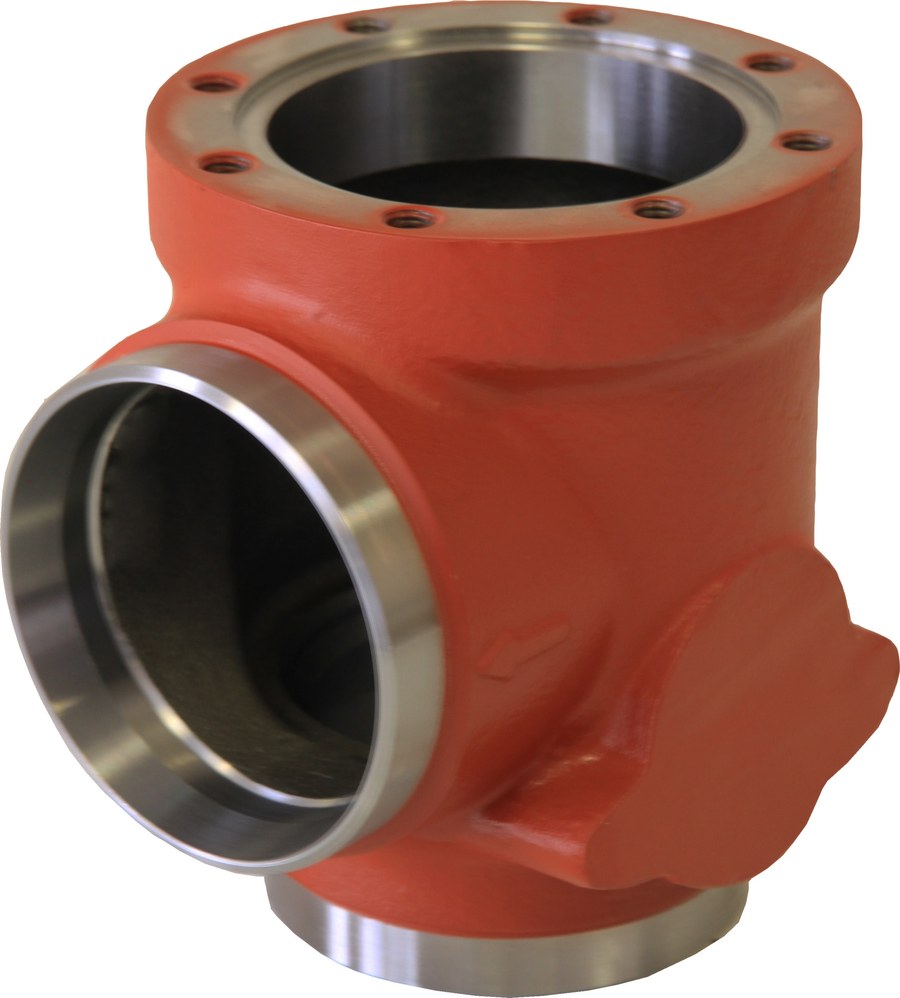

Danfoss SVL 100 multifunction valve body, angleway, 100 mm (4 in) butt weld ASME B 36.10M Schedule 40, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 100 multifunction valve body for industrial refrigeration, code 148B6016. Bare angleway valve housing with butt weld connections to ASME B 36.10M Schedule 40, nominal size 100 mm (4 in), steel body. The SVL housing is the common platform onto which SVA-S/SVA-L shut-off, SCA-X/CHV-X stop-check and FIA strainer function modules are fitted. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Bi-flow. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils.
Technical Specifications
- Type
- SVL 100 multifunction valve body (SVL Flexline)
- Code number
- 148B6016
- Series
- SVL 100
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.10M Schedule 40
- Nominal size
- 100 mm (4 in)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Flow direction
- Bi-flow
- Applicable media
- R717 (ammonia), R744 (CO2), HCFC/HFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE
- EAN
- 5702428485814
- Net weight
- 9 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection Code
- (2002:S40:100)
- Connection material
- Steel
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 4 in
- Inlet connection size [mm]
- 100 mm
- Inlet connection type
- Butt weld
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 4 in
- Outlet connection size [mm]
- 100 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 100
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 40
- Size / Series
- 100 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline 100 steel valve housing, ASME B 36.10M Schedule 40 weld ends. Accepts SVA-S/SVA-L, SCA-X/CHV-X and FIA function modules of the same nominal size. ASME and EN 10220 weld-end preparations are not interchangeable — the EN cell of this size is code 148B6014 (angleway). Select the straightway ASME version as code 148B6017.
