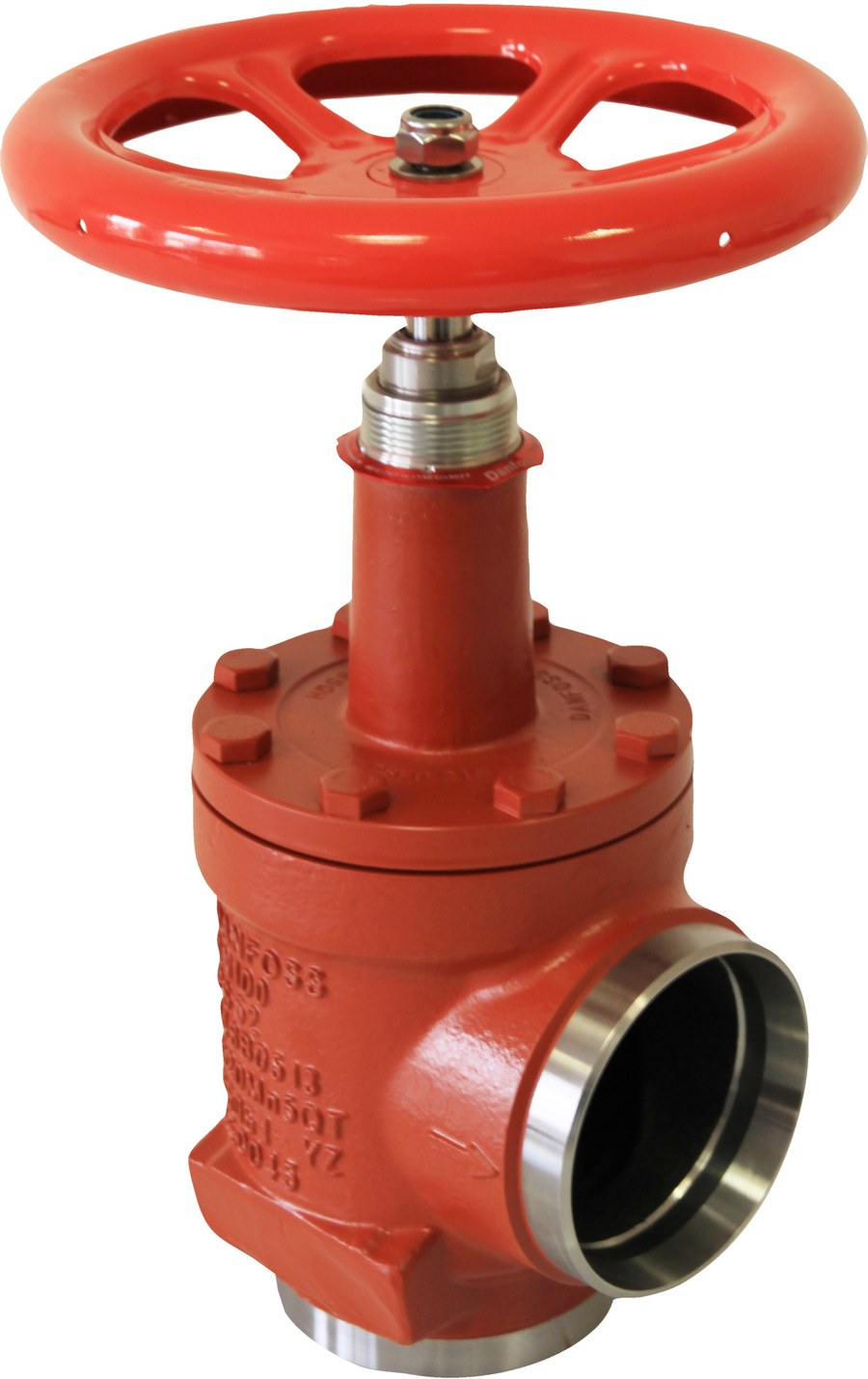

Danfoss SVA-S 100 angleway shut-off (stop) valve, handwheel, 100 mm (4 in) butt weld ASME B 36.10M Schedule 40, steel, 52 bar (code 148B6020)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 100 angleway shut-off (stop) valve for industrial refrigeration, code 148B6020. Steel body with butt weld connections to ASME B 36.10M Schedule 40, nominal size 100 mm (4 in), operated with a handwheel. Bi-directional (bi-flow) isolation of liquid, suction, hot-gas and oil lines. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 313 m3/h. Back-seating spindle allows the packing to be serviced with the plant in operation; part of the Danfoss SVL Flexline programme. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils.
Specifications
- Part number
- 148B6020
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.10M Schedule 40
- Standard size
- 100 mm
Compatibility
Danfoss SVL Flexline SVA-S 100 steel shut-off valve, ASME B 36.10M Schedule 40 weld ends. Select by direction (angleway), operator (handwheel) and connection standard. EN 10220 and ASME weld-end preparations are not interchangeable — the EN cell of this size is code 148B6000. The cap version of this cell is code 148B6021. SVA-S is the standard neck; SVA-L is the long-neck version.
Approvals
