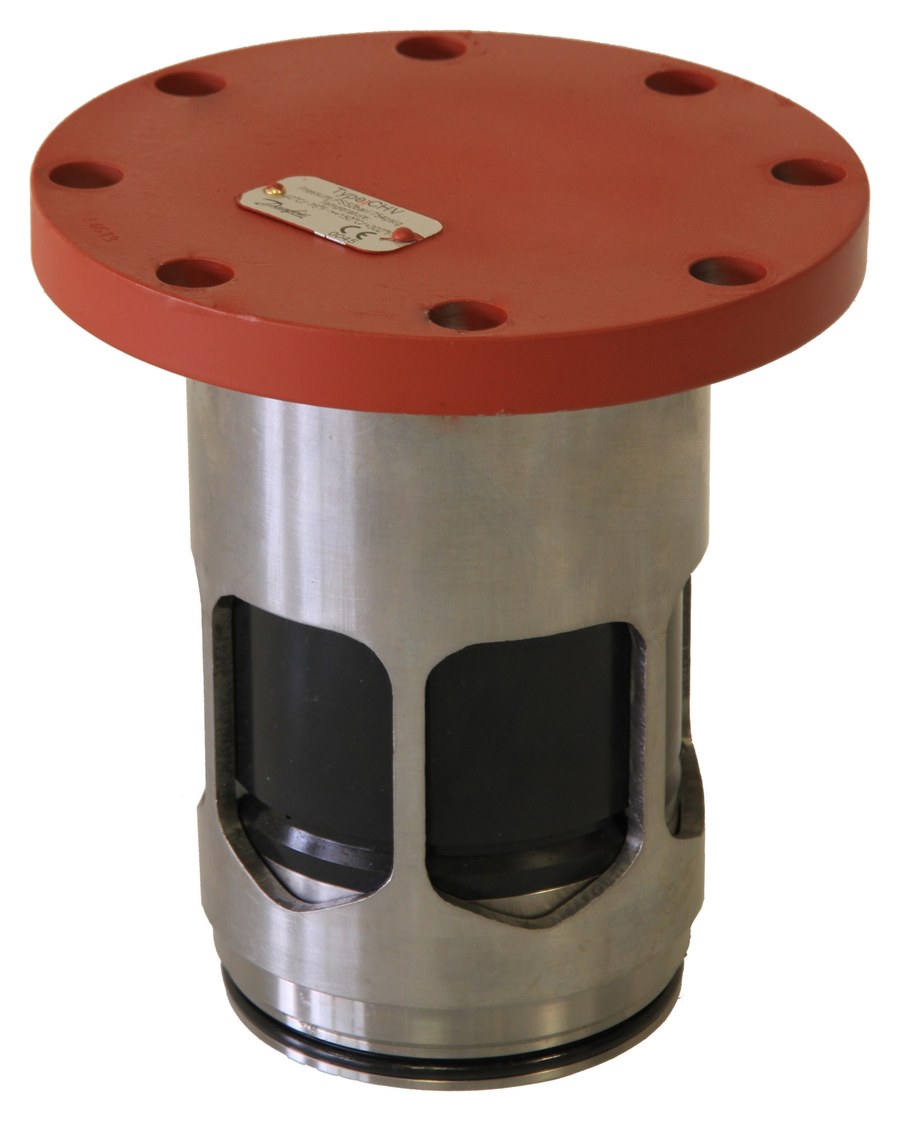

Danfoss CHV-X 100 function module (complete top part), fits 100 mm (4 in) SVL Flexline check valve housing, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CHV-X 100 function module (Top Complete) for industrial refrigeration, code 148B6022. Complete check-valve top part with cone, spring and seat that fits a 100 mm (4 in) SVL Flexline valve housing to build or convert it into a CHV-X 100 check valve. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Lets an installed SVL housing be re-functioned or serviced without cutting the body out of the line. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils.
Technical Specifications
- Type
- CHV-X 100 function module — Top Complete (SVL Flexline)
- Code number
- 148B6022
- Series
- CHV-X
- Function
- Check valve top part (cone + spring + seat)
- Fits
- 100 mm (4 in) SVL Flexline valve housing
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HCFC/HFC refrigerants and oils
- Approvals
- CE
- EAN
- 5702428486262
- Brand
- SVL Flexline
- Product group
- Check valves
- Type designation
- Top Complete
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 150 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R152a; R170; R22; R227ea; R236fa; R245fa; R290; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R452C; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a; R717; R744
- REACH candidate-list substances
- No
- Net weight
- 5.552 kg
- EU RoHS compliance
- Yes
- Approval
- CE
- China RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- CHV-X 100
Standards & Compliance
- Size / Series
- 100 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline CHV-X 100 function module (Top Complete). Fits the 100 mm SVL valve bodies 148B6014 (angleway EN), 148B6015 (straightway EN), 148B6016/148B6017 (ASME). The complete CHV-X 100 check valves are codes 148B6036 (EN) and 148B6037 (ASME). Function module is HS 8481.90 (valve part).
