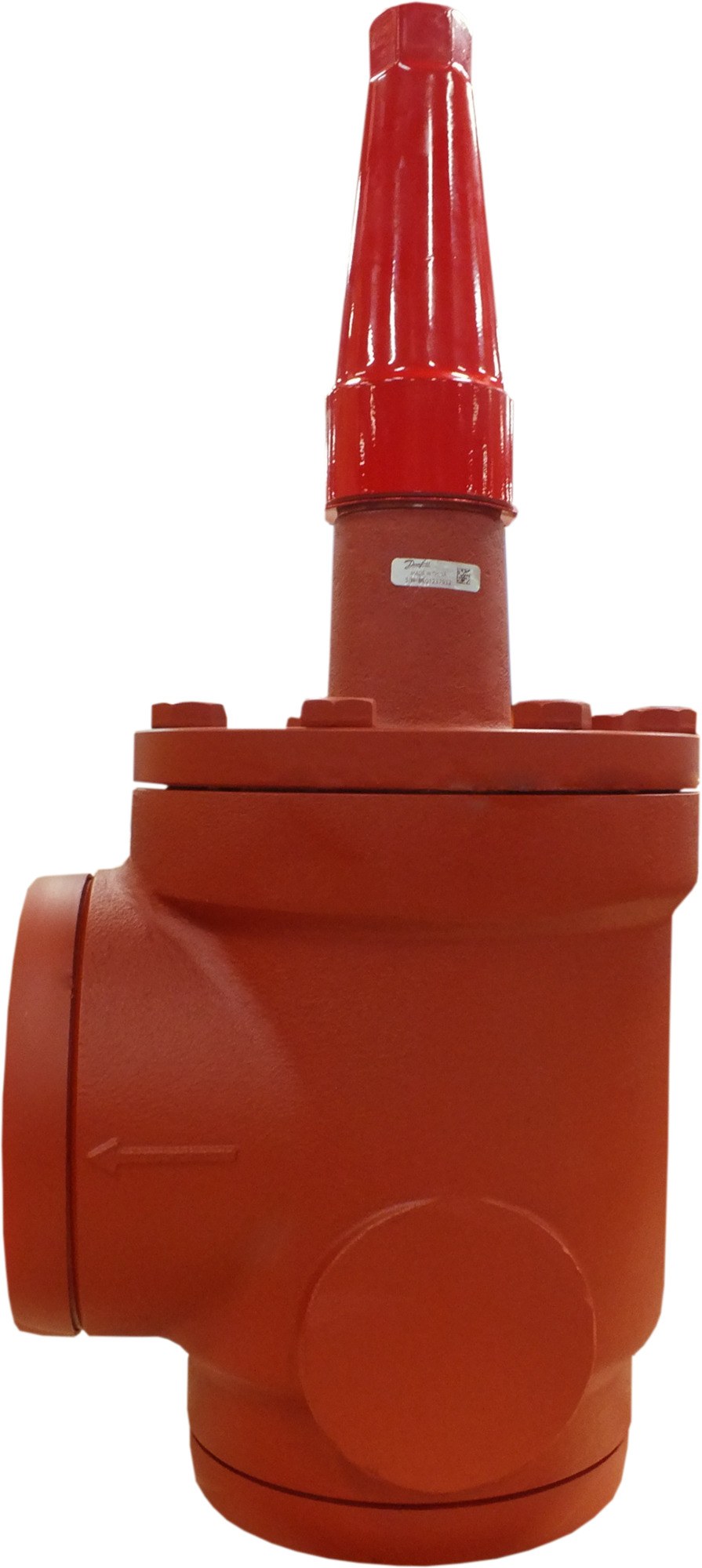

Danfoss SVA-S 125 angleway shut-off (stop) valve, cap, 125 mm (5 in) butt weld EN 10220, steel, 52 bar (code 148B6101)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 125 angleway shut-off (stop) valve for industrial refrigeration, code 148B6101. Steel body with butt weld connections to EN 10220, nominal size 125 mm (5 in), operated with a cap. Bi-directional (bi-flow) isolation of liquid, suction, hot-gas and oil lines. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 514 m3/h (Cv 596.24 gal/min). Back-seating spindle allows the packing to be serviced with the plant in operation; part of the Danfoss SVL Flexline programme. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils.
Specifications
- Part number
- 148B6101
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 125 mm
Compatibility
Danfoss SVL Flexline SVA-S 125 steel shut-off valve. Select by direction (angleway), operator (cap) and connection standard (EN 10220). EN 10220 and ASME weld-end preparations are not interchangeable — the ASME cell of this size is a separate code. SVA-S is the standard neck; SVA-L is the long-neck version. Shares the SVL Flexline platform with REG-SA/REG-SB, SCA-X/CHV-X and FIA of the same nominal size.
Approvals
