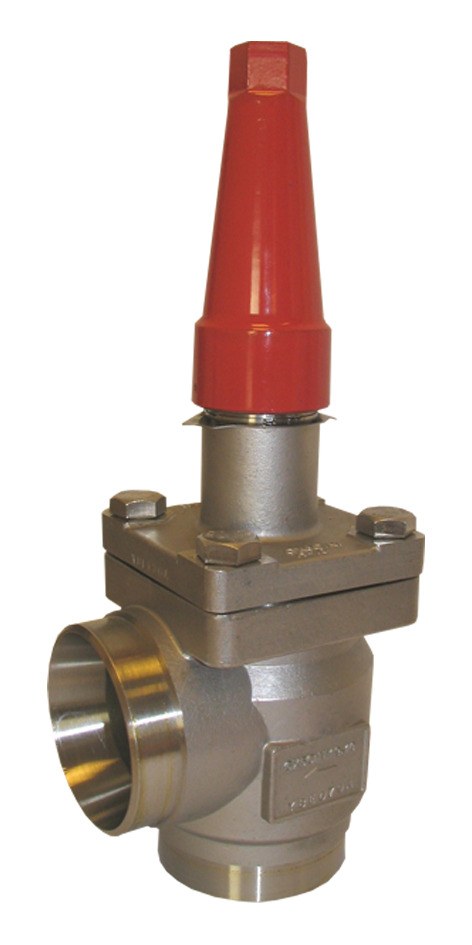

Danfoss SVA-S SS 100 angleway shut-off (stop) valve, cap, 100 mm (4 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 50 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S SS 100 angleway shut-off (stop) valve for industrial refrigeration, code 148B6035. Stainless steel body with butt weld connections to ASME B 36.19M Schedule 40, nominal size 100 mm (4 in), sealing cap over the spindle. Bi-directional (bi-flow) isolation of liquid, suction, hot-gas and oil lines. Maximum working pressure 50 bar (725 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 313 m3/h. The stainless variant suits corrosive environments and CO2 (R744) service. Part of the Danfoss SVL Flexline programme.
Technical Specifications
- Type
- SVA-S SS 100 shut-off valve (SVL Flexline)
- Code number
- 148B6035
- Series
- SVA-S SS / SVA-L SS
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.19M Schedule 40
- Nominal size
- 100 mm (4 in)
- Top equipment
- Cap
- Body material
- Stainless steel
- Maximum working pressure
- 50 bar (725 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 313 m3/h
- Flow direction
- Bi-flow
- Applicable media
- R717 (ammonia), R744 (CO2), HCFC/HFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category II (DN 100)
- Approvals
- CE, EAC
- EAN
- 5702428963169
- Net weight
- 15.3 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2502:S10S:100)
- Connection material
- Stainless steel
- Cv value [gal/min]
- 363 gal/min
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 4 in
- Inlet connection size [mm]
- 100 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 313 m³/h
- Max. Working Pressure [bar]
- 50 bar
- Max. Working Pressure [psig]
- 725 psig
- Neck
- Standard
- Outlet connection size [in]
- 4 in
- Outlet connection size [mm]
- 100 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.19M Schedule 40
- Size / Series
- 100 mm
- Material
- Stainless steel
- Pressure Rating
- 50 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S SS 100 stainless shut-off valve, ASME B 36.19M Schedule 40 weld ends (the stainless pipe schedule, distinct from the carbon-steel B 36.10M), angleway, cap. The EN 10220 stainless angleway cap cell is code 148B6032. Stainless bodies are rated 50 bar. SVA-S is the standard neck; SVA-L is the long-neck version.
