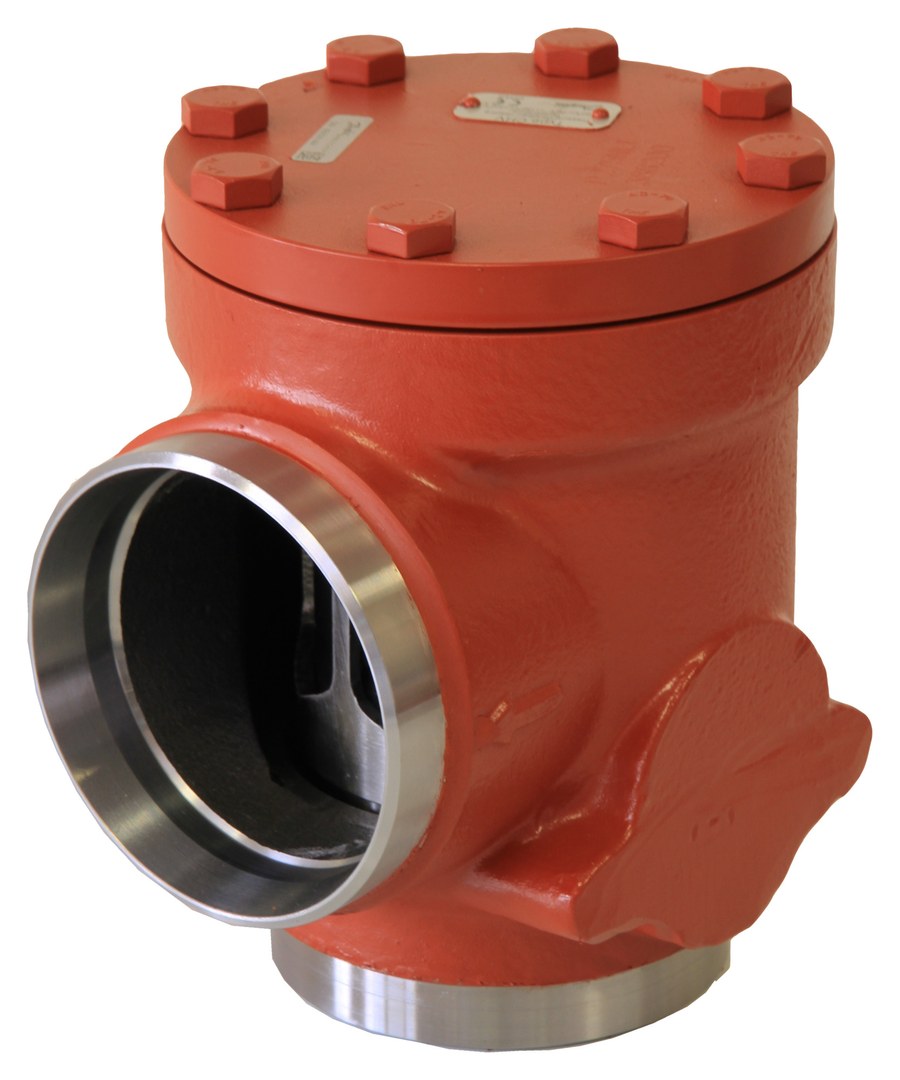

Danfoss CHV-X 100 angleway check valve, 100 mm (4 in) butt weld ASME B 36.10M Schedule 40, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CHV-X 100 angleway check valve for industrial refrigeration, code 148B6037. Steel body with butt weld connections to ASME B 36.10M Schedule 40, nominal size 100 mm (4 in). Prevents reverse flow in liquid, suction and hot-gas lines; the spring-loaded cone opens on forward flow and seats on reverse flow. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 196 m3/h. Serviceable with SVL Flexline spare parts. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils.
Technical Specifications
- Type
- CHV-X 100 check valve (SVL Flexline)
- Code number
- 148B6037
- Series
- CHV-X
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.10M Schedule 40
- Nominal size
- 100 mm (4 in)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 196 m3/h
- Applicable media
- R717 (ammonia), R744 (CO2), HCFC/HFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE
- EAN
- 5702428478335
- Net weight
- 14.102 Kilogram
- Product group
- Check valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2002:S40:100)
- Connection material
- Steel
- Connection size [in]
- 4 in
- Connection size [mm]
- 100 mm
- Cv value [gal/min]
- 232 gal/min
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [mm]
- 100 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 196 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- MinODP [bar]
- 0.04 bar
- MinODP [psi]
- 0.62 psi
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 40
- Size / Series
- 100 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SVL Flexline CHV-X 100 steel check valve, ASME B 36.10M Schedule 40 weld ends, angleway. The EN 10220 cell of this size is code 148B6036. CHV-X shares the SVL Flexline housing platform with SVA-S/SVA-L, SCA-X and FIA of the same nominal size.
