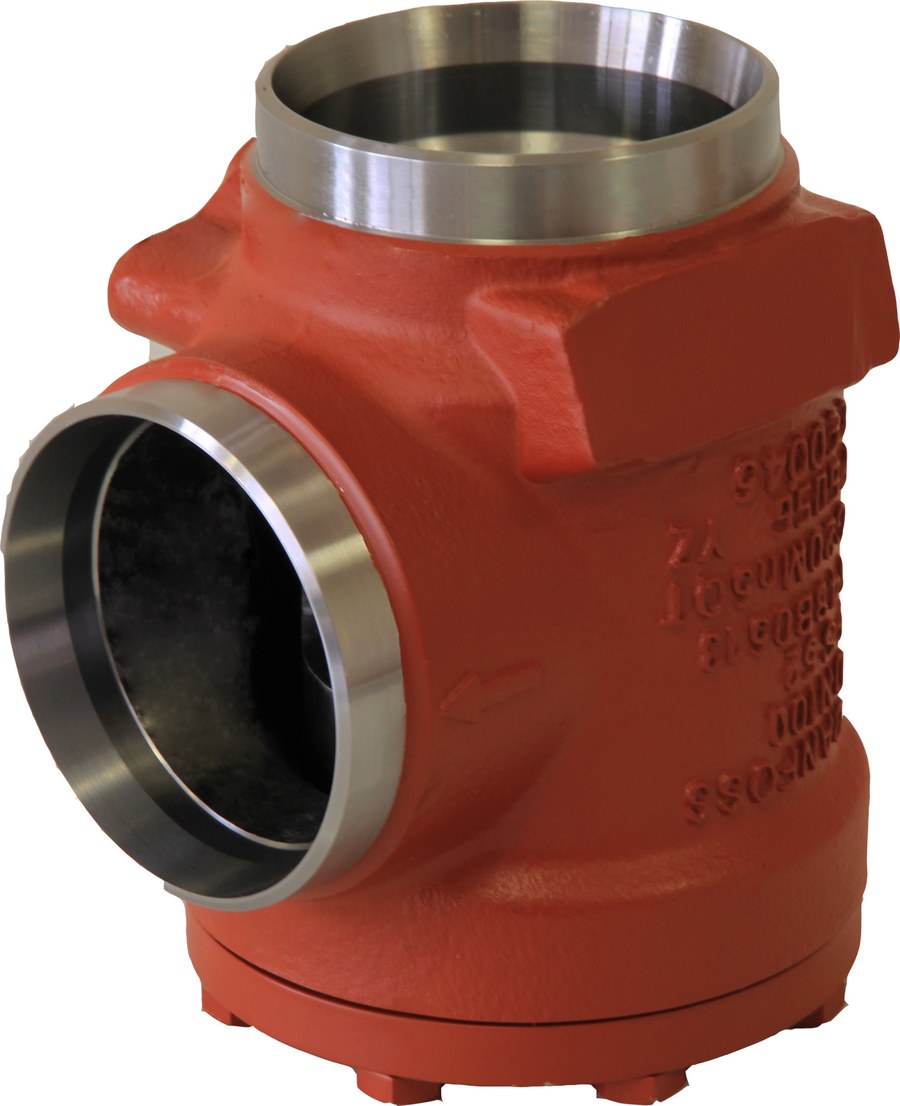

Danfoss FIA 100 angleway strainer housing, 100 mm (4 in) butt weld ASME B 36.10M Schedule 40, steel, 52 bar (code 148B6008)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA 100 angleway strainer housing for industrial refrigeration, code 148B6008. Steel body with butt weld connections to ASME B 36.10M Schedule 40, nominal size 100 mm (4 in), used to protect valves, pumps and compressors from pipe-scale and debris. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient with standard µ150 plain insert Kv 162.4 m3/h (Cv 187.7 gal/min); higher Kv with pleated inserts. Filter insert ordered separately. Part of the Danfoss SVL Flexline programme; for R717 (ammonia), R744 (CO2) and fluorinated refrigerants.
Specifications
- Part number
- 148B6008
- HS code
- 8421.39
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.10M Schedule 40
- Standard size
- 100 mm
Compatibility
Danfoss SVL Flexline FIA 100 strainer housing. Select by direction (angleway) and connection standard (ASME B 36.10M Schedule 40); order the filter insert (µ150 / µ250 / µ500, plain or pleated) separately. Shares the SVL Flexline platform with SVA-S/SVA-L, SCA-X/CHV-X and REG valves of the same nominal size.
Approvals
