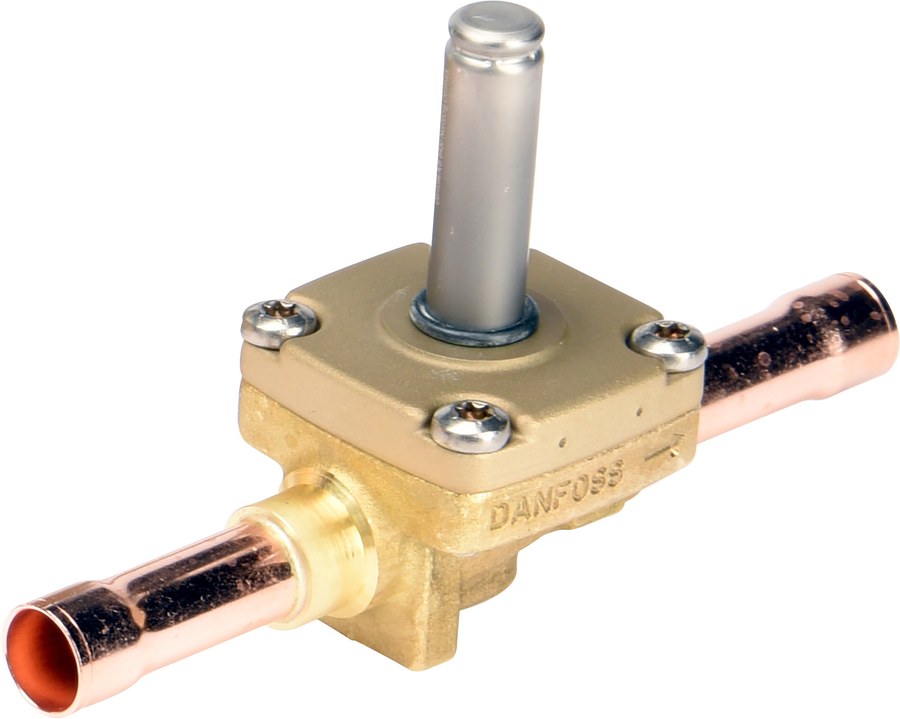

Danfoss EVR 20 Solenoid Valve 7/8 in ODF Solder NC Refrigeration (032L1240)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVR 20 normally closed servo-operated solenoid valve for refrigeration liquid, suction and hot-gas lines. 7/8 in ODF solder connections. Coil ordered separately. Provides on-off electrical control of fluid flow in refrigeration, hydraulic or pneumatic lines.
Technical Specifications
- Type
- 2-way normally closed servo-diaphragm solenoid valve
- Series
- EVR 20
- Connection
- 7/8 in ODF solder
- Kv
- 6.0 m³/h
- Max working pressure
- 45.2 bar
- Media temperature
- -40 to +105 °C
- Body
- brass
- Refrigerants
- R134a, R404A, R407C, R410A, R448A, R449A, R513A, R600a
- Function
- NC (normally closed)
- Coil
- ordered separately (clip-on)
- Code number
- 032L1240
- Product group
- Solenoid valves
- Type designation
- Solenoid valve, Solder
- Direction
- Straightway
- Valve operation
- Servo-diaphragm
- Inlet connection type
- Solder, ODF
- Inlet size
- 7/8 in
- Outlet connection type
- Solder, ODF
- Outlet size
- 7/8 in
- Orifice size
- 22.00 mm
- Cv value
- 6.900 gal/min
- MaxOPD 10W AC
- 38 bar
- MaxOPD 20W DC
- 20 bar
- MaxOPD coil BJ/BX
- 38 bar
- MWP PED compliant
- 49 bar
- MinODP
- 0.030 bar
- MOPD [bar/psi]
- Coil Dependent
- Medium temp. range note
- Defrost max 130°C/265°F
- Ambient temperature
- -40 - 80 °C
- Lubricants compatibility
- AB; MO; PAG; PAO; POE; PVE
- Fluid Group
- 1; 2
- PED category
- Art. 4, par. 3
- Approval
- EAC; LLC CDC EURO-TYSK; UL
- UL approved refrigerants
- R1234ze(E); R125; R134a; R152a; R22; R290; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R513B; R515A; R515B; R600; R600a
- UL mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 1.272 kg
- EAN
- 5702428952811
- Actuator system
- 13.5 mm
- Identical product
- 032L5092
Standards & Compliance
- Material
- Brass body, PTFE/HNBR seat
- Temperature Range
- -40°C to +105°C (media)
- Classification / Approval
- CE, UL, EAC
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility per datasheet. Verify against your system.
