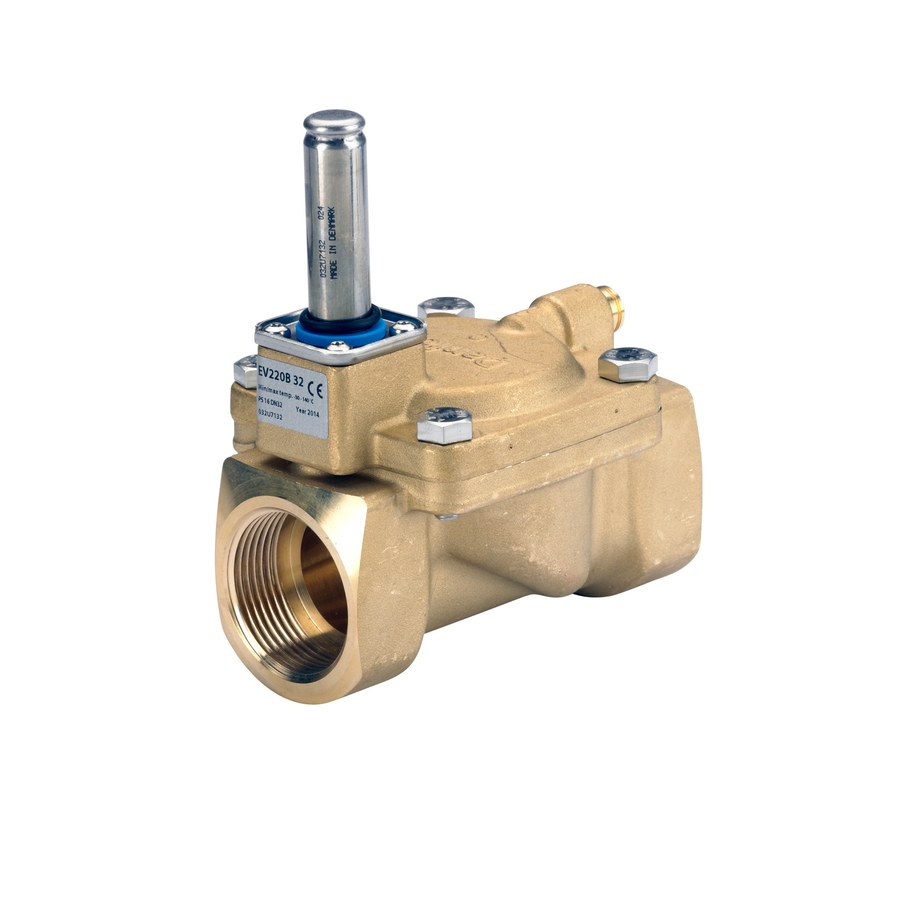

Danfoss EV220B 32 solenoid valve G 1 1/4 DN32 NC FKM 032U7133
Danfoss · HVAC & Refrigeration · Solenoid Valves
Danfoss EV220B 32 servo-operated (indirect) 2/2-way solenoid valve, normally closed, code number 032U7133. Brass valve body with FKM seals, G 1 1/4 (ISO 228-1) port, DN32, Kv 18 m³/h. For oil and compressed air; differential pressure 0.3 bar to 10 bar, media temperature 0 °C to 100 °C. Built-in pilot filter, adjustable closing time and a diaphragm servo that opens on a minimum 0.3 bar differential. Supplied as the valve body; the operating coil and connector are ordered separately (clip-on coil, enclosure up to IP67).
Specifications
- Part number
- 032U7133
- HS code
- 8481.80
- Material
- Brass body, FKM seals
- Pressure rating
- 0.3 bar to 10 bar differential
- Temperature range
- 0 °C to 100 °C (media)
- IP rating
- up to IP67 (with coil fitted)
- Standard size
- DN32
- Thread standard
- ISO 228-1 (G 1 1/4)
Compatibility
Confirm code number, seal material and required coil voltage/connector before ordering. EV220B opens on a minimum 0.3 bar differential pressure.
Standards
- EN 60730-1
- EN 60730-2-8
- LVD 2014/35/EU
- PED 2014/68/EU
Approvals
