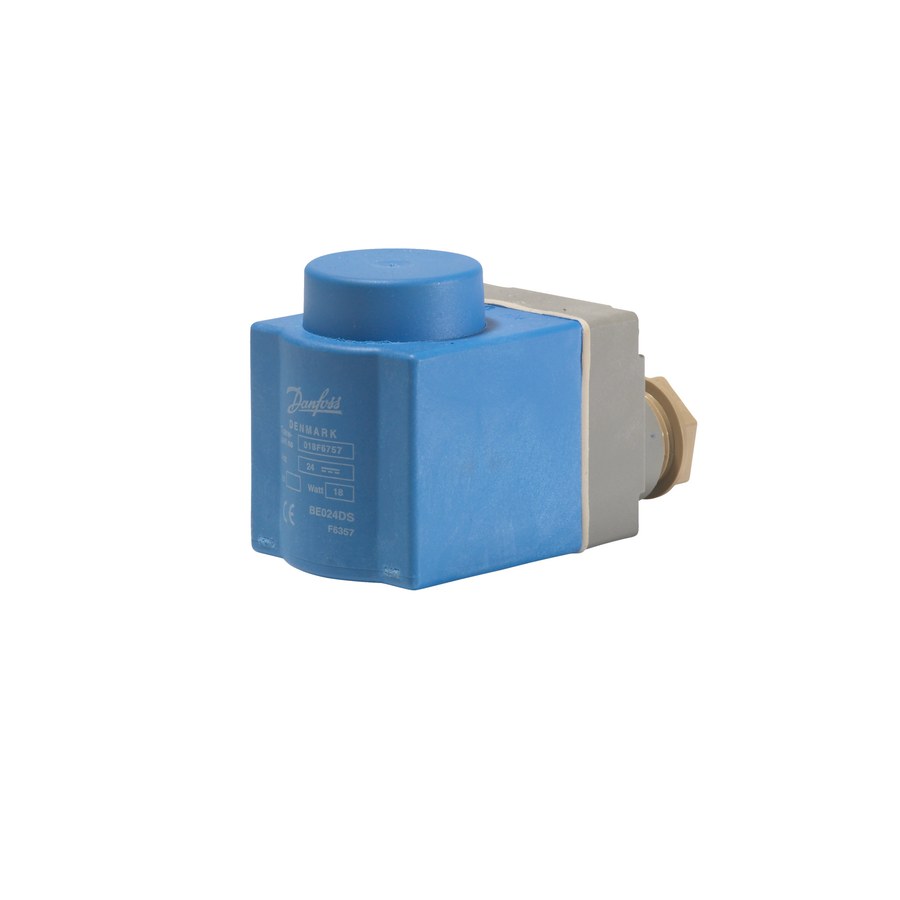

Danfoss BE024DS solenoid valve coil 24V DC clip-on terminal box IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BE024DS clip-on solenoid coil for EV-series valves, 24 V DC, terminal box connection (Pg 13.5), IP67, Class H insulation. Encapsulated coil for the EV210B/EV220B/EV250B valve range. Valve body ordered separately.
Technical Specifications
- Type
- BE024DS clip-on solenoid coil
- Supply
- 24 V DC
- Power
- 16 W (DC)
- Connection
- Terminal box (Pg 13.5)
- Enclosure
- IP67
- Insulation
- Class H to IEC 60085
- Ambient
- -40 to +50 °C
- Actuator size
- 13.5 mm, clip-on
- Weight
- 0.321 kg (net)
- Packing
- multi-pack (32 pcs)
- Fits
- EV210B, EV212B, EV220B, EV222B, EV224B, EV227B, EV250B, EV251B
- Code number
- 018F6757
- Product group
- Solenoid valves
- Type designation
- BE024DS
- Ambient temperature range
- -40 °C to 50 °C
- Approval
- CE; EAC; LLC CDC TYSK
- CE mark
- Yes
- REACH candidate-list substances
- No
- EAN
- 5702428033633
- Cable diameter
- 6.0 mm to 11.0 mm
- Coil connection
- Connection Box
- Coil design standard
- VDE 0580
- Coil fastening
- Clip-on
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Blue
- Conductor area
- 0.75 - 1.5 mm2
- Duty rating
- Continuous
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Terminal box
- Electrical connection size
- Pg 13.5
- Enclosure rating IP
- IP67
- In scope of WEEE
- Yes
- Power consumption [W] DC
- 16.0 W
- Rel. Humidity
- 0 % to 100 %
- Spare part number
- 018F6757
- Supply voltage [V] DC
- 24.00 V
- Compliance
- EN 60730-1
- EU RoHS compliance
- Yes
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +50 °C
- IP Rating
- IP67
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
