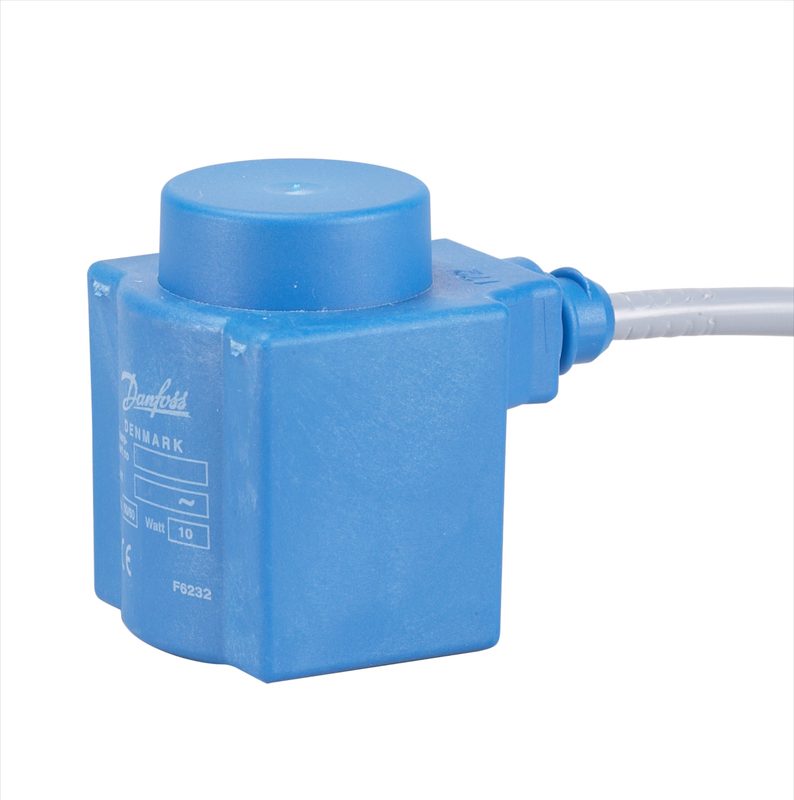

Danfoss BF230AS solenoid valve coil 230V AC clip-on cable 1 m IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BF230AS clip-on solenoid coil for EV-series valves, 220-230 V AC, 50 Hz, fixed 1 m 3-core cable connection, IP67, Class H insulation. Encapsulated coil for the EV210B/EV220B/EV250B valve range. Valve body ordered separately.
Technical Specifications
- Type
- BF230AS clip-on solenoid coil
- Supply
- 220-230 V AC, 50 Hz
- Power
- 12 W / 22 VA
- Connection
- Fixed cable, 1 m, 3 core (3 x 0.75 mm2), cable dia 6.6 mm
- Enclosure
- IP67
- Insulation
- Class H to IEC 60085
- Ambient
- -40 to +80 °C
- Relative humidity
- 0-100 % RH
- Actuator size
- 13.5 mm, clip-on
- Duty
- continuous
- Design standard
- VDE 0580
- Weight
- 0.297 kg net / 0.354 kg gross
- Packing
- multi-pack (24 pcs)
- Fits
- EV210B, EV212B, EV220B, EV222B, EV224B, EV227B, EV250B, EV251B
- Code number
- 018F6251
- Product group
- Solenoid valves
- Type designation
- BF230AS
- Ambient temperature range
- -40 °C to 80 °C
- Approval
- LLC CDC TYSK
- REACH candidate-list substances
- No
- EAN
- 5702428024815
- Cable diameter
- 6.6 mm
- Cable length
- 40.00 in, 1.000 m
- Coil connection
- Cable
- Coil design standard
- VDE 0580
- Coil fastening
- Clip-on
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Blue
- Conductor area
- 3 x 0.75 mm2
- Duty rating
- Continuous
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Cable
- Electrical connector
- 3 core cable
- Enclosure rating IP
- IP67
- Frequency
- 50 Hz
- Identical product
- 018F8201
- In scope of WEEE
- Yes
- Power consumption [W] 50Hz
- 12.0 W
- Rel. Humidity
- 0 % to 100 %
- Spare part number
- 018F6251
- Voltage
- 230 V
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +80 °C
- IP Rating
- IP67
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. BF = fixed cable connection (not a terminal box). Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
