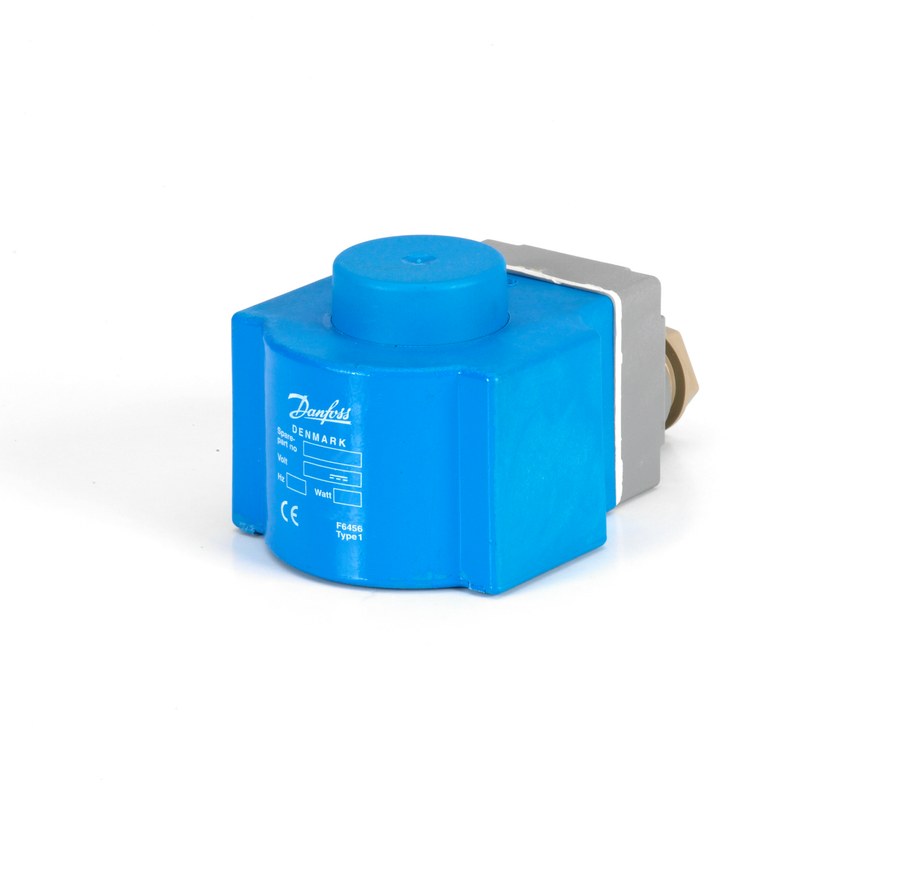

Danfoss BG024AS solenoid valve coil 24V AC clip-on terminal box IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BG024AS clip-on solenoid coil for EV-series valves, 24 V AC, 50 Hz, terminal box with screwed cable entry, IP67, Class H insulation. Higher-power coil for the EV210B/EV220B/EV250B valve range. Valve body ordered separately.
Technical Specifications
- Type
- BG024AS clip-on solenoid coil
- Supply
- 24 V AC, 50 Hz
- Power
- 11 W / 21 VA (AC)
- Connection
- Terminal box, screwed cable entry
- Enclosure
- IP67
- Insulation
- Class H to IEC 60085
- Ambient
- -40 to +80 °C
- Actuator size
- 13.5 mm, clip-on
- Duty
- continuous
- Weight
- 0.488 kg (net)
- Packing
- multi-pack (24 pcs)
- Fits
- EV210B, EV212B, EV220B, EV222B, EV224B, EV227B, EV250B, EV251B
- Code number
- 018F6807
- Product group
- Solenoid valves
- Type designation
- BG024AS
- Ambient temperature range
- -40 °C to 80 °C
- Approval
- CE; EAC; LLC CDC TYSK
- CE mark
- Yes
- REACH candidate-list substances
- No
- EAN
- 5702428027601
- Coil connection
- Connection Box
- Coil design standard
- VDE 0580
- Coil fastening
- Clip-on
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Blue
- Duty rating
- Continuous
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Terminal box
- Electrical connection size
- Pg 13.5
- Electrical connector
- Screwed cable entry
- Enclosure rating IP
- IP67
- Frequency
- 50 Hz
- In scope of WEEE
- Yes
- Power consumption [W] 50Hz
- 11.0 W
- Rel. Humidity
- 0 % to 100 %
- Spare part number
- 018F6807
- Supply voltage [V] AC
- 24 V
- Supply voltage 50Hz Max
- 24 V
- Compliance
- EN 60730-1
- EU RoHS compliance
- Yes
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +80 °C
- IP Rating
- IP67
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
