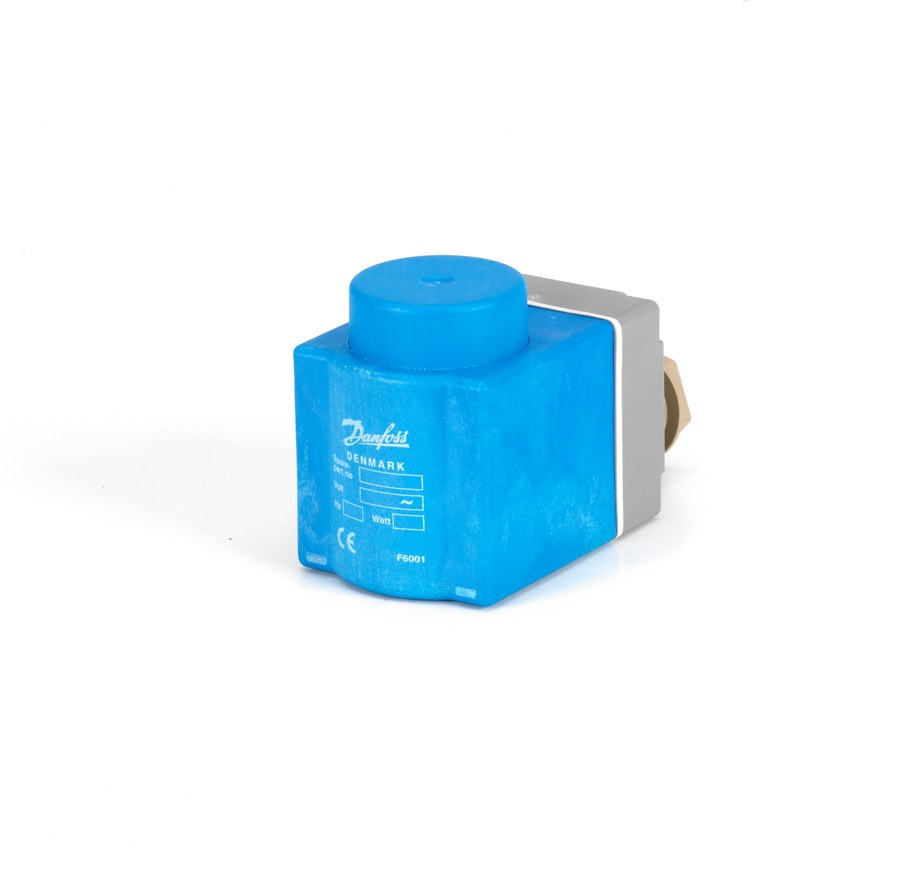

Danfoss BE230AS solenoid valve coil 230V AC clip-on terminal box IP67

Danfoss BE230AS clip-on solenoid coil for EV-series valves, 220-230 V AC, 50 Hz, terminal box connection (Pg 13.5), IP67, Class H insulation. Encapsulated coil for the EV210B/EV220B/EV250B valve range. Valve body ordered separately.

Type

BE230AS clip-on solenoid coil

Supply

220-230 V AC, 50 Hz

Power

12 W / 22 VA (AC), 11 W (DC hold)

Connection

Terminal box (Pg 13.5)

Enclosure

IP67

Insulation

Class H to IEC 60085

Ambient

-40 to +80 °C

Actuator size

13.5 mm, clip-on

Weight

0.315 kg (net)

Packing

multi-pack (32 pcs)

Fits

EV210B, EV212B, EV220B, EV222B, EV224B, EV227B, EV250B, EV251B

Code number

018F6701

Product group

Solenoid valves

Type designation

BE230AS

Ambient temperature range

-40 °C to 80 °C

Approval

CE; EAC; LLC CDC TYSK

CE mark

Yes

REACH candidate-list substances

No

EAN

5702428519144

Cable diameter

6.0 mm to 11.0 mm

Coil connection

Connection Box

Coil design standard

VDE 0580

Coil fastening

Clip-on

Coil winding insulation class

Class H to IEC 85

Colour

Blue

Conductor area

0.75 - 1.5 mm2

Duty rating

Continuous

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Terminal box

Electrical connection size

Pg 13.5

Enclosure rating IP

IP67

Frequency

50 Hz

Identical product

018F8701

In scope of WEEE

Yes

Power cons Dual 50Hz

0 mW, 11.0 W

Power consumption [W] 50Hz

12.0 W

Rel. Humidity

0 % to 100 %

Spare part number

018F6176

Supply voltage [V] AC

220 V to 230 V

Supply voltage 50Hz Max

230 V

Material

Encapsulated coil, Class H insulation

Temperature Range

-40 to +80 °C

IP Rating

IP67

HS Code

8505.90
