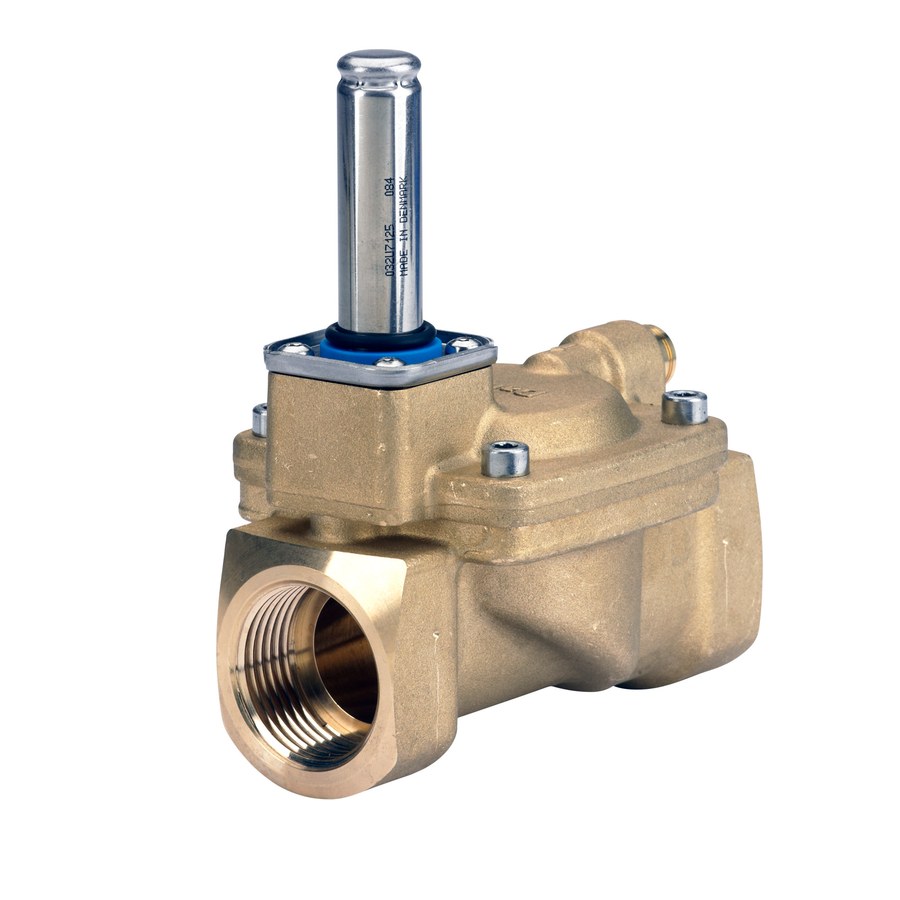

Danfoss EV220B 25 solenoid valve G 1 DN25 NC EPDM
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EV220B 25 servo-operated 2/2-way solenoid valve, G 1 port (DN25), normally closed, brass body, EPDM seal, Kv 11 m³/h, for water, brine and neutral media. Coil ordered separately. Provides on-off electrical control of fluid flow in refrigeration, hydraulic or pneumatic lines.
Technical Specifications
- Type
- EV220B 25 solenoid valve
- Port
- G 1 (DN25, ISO 228-1)
- Config
- NC, 2/2-way, servo-operated (diaphragm)
- Body
- Brass
- Seal
- EPDM
- Kv
- 11 m³/h
- Pressure
- 0.3-16 bar differential
- Media temp
- -30 to +120 °C
- Media
- Water, brine, neutral media
- Coil
- ordered separately
- Code number
- 032U7125
- Product group
- Solenoid valves
- Type designation
- EV220B 25
- Function
- NC
- Connection Internal/External
- Internal
- Connection material
- Brass
- Connection size
- 1
- Connection standard
- ISO 228-1
- Connection type
- G
- Orifice size
- 25.00 mm
- Orifice size fraction
- 1 in
- Cv value
- 12.700 gal/min
- Max media viscosity
- 50 cSt
- Max. test pressure
- 24.0 bar
- Max. working pressure
- 16.0 bar
- Ambient temperature max.
- 80 °C
- Fluid Group
- 1
- Approval
- DNVGL-CG-0339; GL
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 1.325 kg
- EAN
- 5702423018543
- Actuator
- B
- Actuator size
- 13.5 mm, 0.53 in
- Actuator system
- 13.5 mm
- Application
- Open
- Differential pressure
- 0.300 bar to 16.000 bar
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Est. time to open, water
- 300 ms
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
Standards & Compliance
- Size / Series
- DN25
- Material
- Brass, EPDM
- Thread Standard
- ISO 228-1 (G)
- Pressure Rating
- 0.3-16 bar
- Temperature Range
- -30 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Valve body only — coil and connector ordered separately. Verify port size, voltage, differential pressure and media compatibility before ordering.
