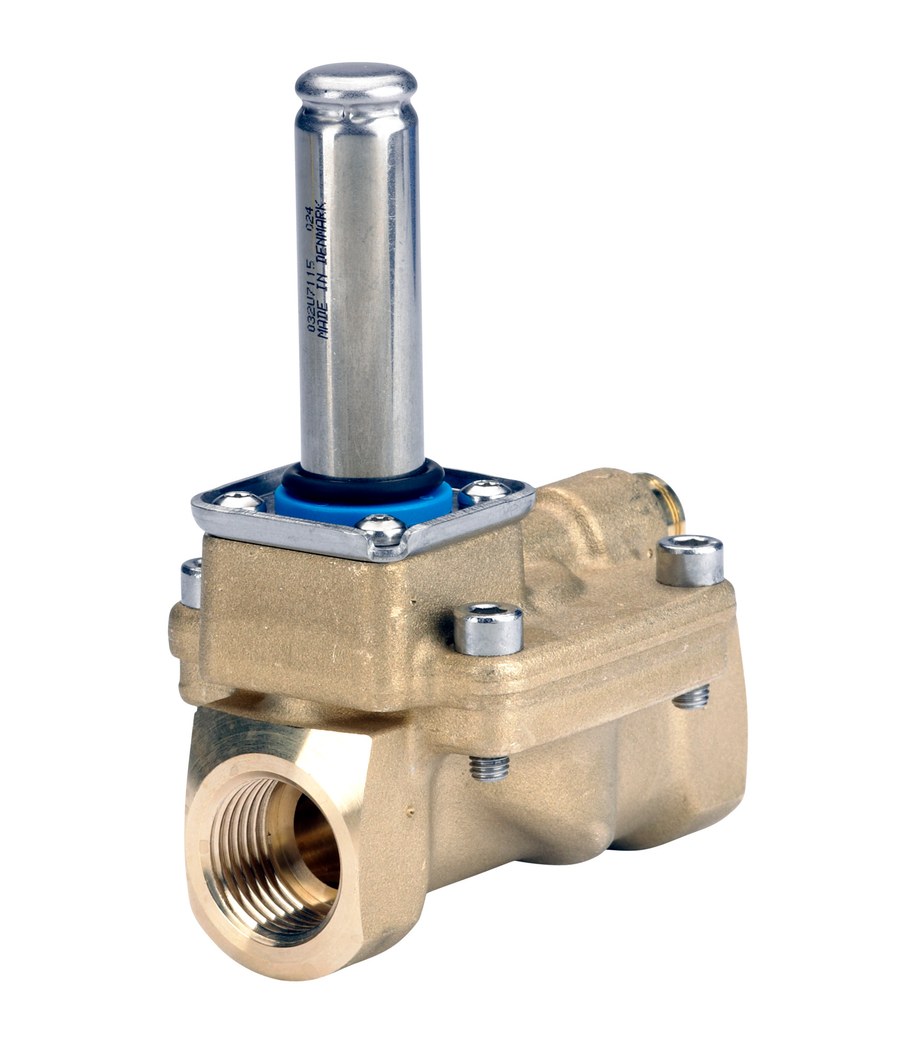

Danfoss EV220B 15 solenoid valve G 1/2 DN15 NC EPDM
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EV220B 15 servo-operated (indirect) 2/2-way solenoid valve, normally closed, code number 032U7115. Brass valve body with EPDM seals, G 1/2 (ISO 228-1) port, DN15, Kv 4 m³/h. For water, brine, neutral liquids and gases; differential pressure 0.3 bar to 16 bar, media temperature -30 °C to 120 °C. Built-in pilot filter, adjustable closing time and a diaphragm servo that opens on a minimum 0.3 bar differential. Supplied as the valve body; the operating coil and connector are ordered separately (clip-on coil, enclosure up to IP67).
Technical Specifications
- Type
- Danfoss EV220B 15 Code number: 032U7115 Construction: 2/2-way, servo-operated (indirect), diaphragm Function: NC (normally closed) Port connection: G 1/2 (ISO 228-1, internal thread) Nominal size: DN15 Kv value: 4 m³/h Differential pressure: 0.3 bar to 16 bar Min. opening differential: 0.3 bar Media temperature: -30 °C to 120 °C Seal material: EPDM Valve body: brass Suitable media: water, brine, neutral liquids and gases Pilot filter: built-in (standard) Coil: ordered separately (clip-on); enclosure up to IP67 with coil fitted Directives: LVD 2014/35/EU (EN 60730-1, EN 60730-2-8), PED 2014/68/EU Approval: CE Product group: Solenoid valves Type designation: EV220B 15 Body material: Brass Connection Internal/External: Internal Connection material: Brass Connection size: 1/2 Connection standard: ISO 228-1 Connection type: G Orifice size: 15.00 mm Orifice size fraction: 5/8 in Cv value: 4.600 gal/min Max media viscosity: 50 cSt Max. test pressure: 24.0 bar Max. working pressure: 16.0 bar Ambient temperature max.: 80 °C Fluid Group: 1 REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.69 kg EAN: 5702423006496 Actuator: B Actuator size: 13.5 mm, 0.53 in Actuator system: 13.5 mm Application: Open
Standards & Compliance
- Size / Series
- DN15
- Material
- Brass body, EPDM seals
- Thread Standard
- ISO 228-1 (G 1/2)
- Pressure Rating
- 0.3 bar to 16 bar differential
- Temperature Range
- -30 °C to 120 °C (media)
- IP Rating
- up to IP67 (with coil fitted)
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Confirm code number, seal material and required coil voltage/connector before ordering. EV220B opens on a minimum 0.3 bar differential pressure.
