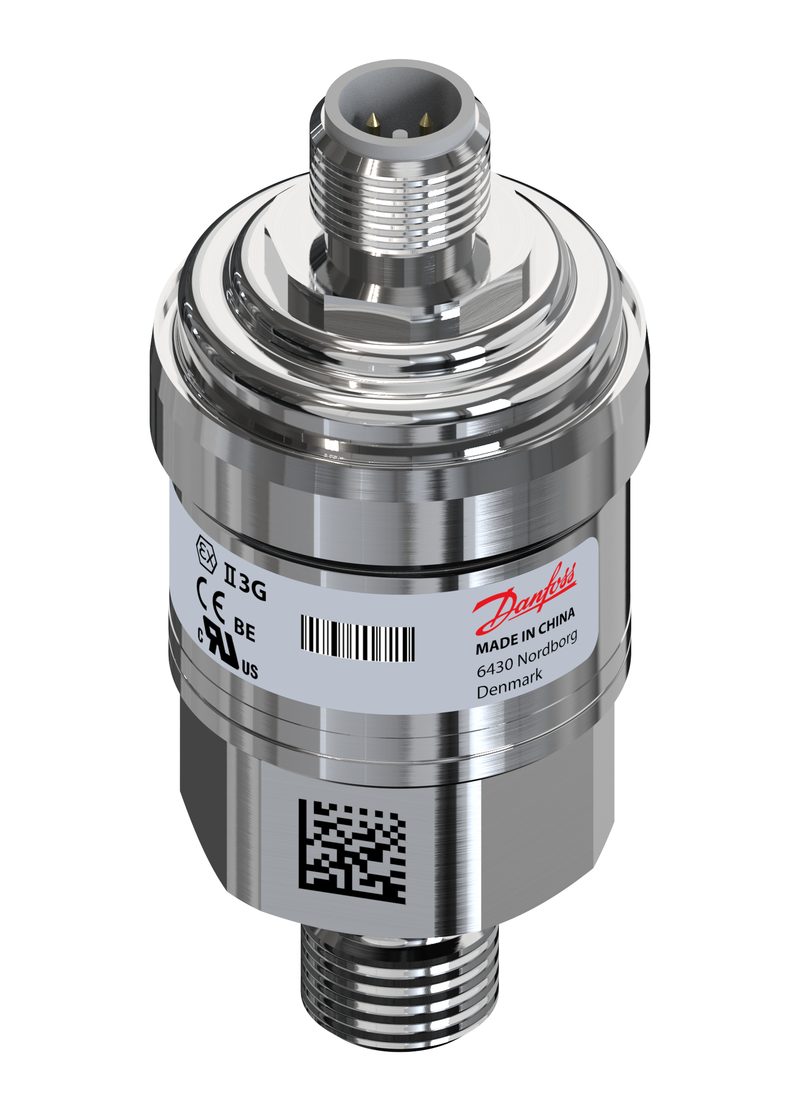

Danfoss DST P310 pressure transmitter -1 to 99 bar 4-20 mA

Danfoss DST P310 pressure transmitter, code 076G1020. Measuring range -1 to 99 bar (-14.5 to 1435.5 psi). Output 4-20 mA, supply 9-32 V DC. Piezo-resistive silicon MEMS sensing element, sealed-gauge reference. Process connection 1/4-18 NPT male; electrical connection M12 x 1, 4-pin, IEC 61076-2-101; enclosure IP67. Supplied as OEM original where available, or a verified compatible equivalent.

Type

DST P310

Code number

076G1020

Measuring range

-1 to 99 bar (-14.5 to 1435.5 psi)

Output signal

4-20 mA

Supply voltage

9-32 V DC

Accuracy

±0.5% FS typical, ±1% FS maximum (total error band)

Sensing

piezo-resirigide silicon MEMS, sealed-gauge reference

Process connection

1/4-18 NPT male

Electrical connection

M12 x 1, 4-pin, IEC 61076-2-101

Enclosure

IP67

Media temperature

-40°C to +85°C

Ambient temperature

-40°C to +85°C

Weight

0.137 kg

Product group

Sensors

Approval

C UL US UL Recognized; CE

UL mark

Yes

CE mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

EAN

5702424593810

Accuracy, max.

1.00 %

Accuracy, typical

0.5 %

Adj. zero point and span

No

Compensated temp. range

-40 °C to 125 °C

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

Flush diaphragm

No

High Clipping Level

22.40

Intrinsically safe

No

Low Clipping level

3.60

Negative / common

Pin 2

Non-linearity BFSL

0.50 %

Overload pressure max.

600.0 bar

Positive / supply

Pin 1

Pressure connection HEX

27.0 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Material

316L stainless steel wetted parts (depending on pressure port)

Pressure Rating

Overload 600 bar; response time <=4 ms

Temperature Range

-40°C to +85°C

IP Rating

IP67

Classification / Approval

CE, cULus (UL Recognized)

HS Code

9026.20
