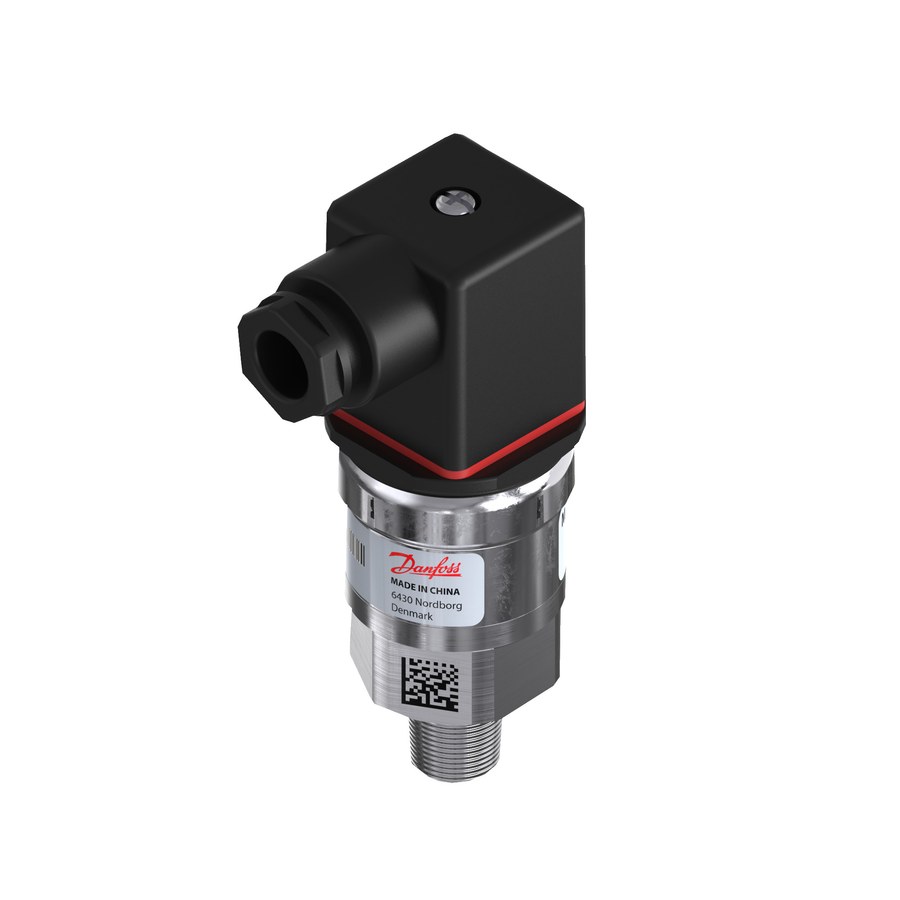

Danfoss MBS 3000 pressure transmitter 0-10 bar 4-20mA 1/4-18 NPT
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss 060G1136, catalog identifier for the specific configuration. Danfoss MBS 3000 compact pressure transmitter for general industrial applications. 0-10 bar (0-145 PSI) gauge pressure with 4-20 mA output signal, 1/4-18 NPT (ANSI/ASME B1.20.1) pressure connection. Used in process instrumentation and safety-loop tag positions for pressure, temperature, level, flow, gas or vibration measurement. Manufacturer: Danfoss. Manufacturer part number: 060G1136. Available on quote-to-invoice terms via cBallast. Lead time and freight are quoted per RFQ against destination Incoterm.
Specifications
- Part number
- 060G1136
- HS code
- 9026.20
- Material
- 316L stainless steel wetted parts
- Temperature range
- -40°C to +85°C (medium)
Compatibility
Standard 4-20 mA two-wire output. Confirm pressure range, thread (1/4-18 NPT (ANSI/ASME B1.20.1)) and electrical connector before substitution.
Standards
- ANSI/ASME B1.20.1
- EN 175301-803-A
- IEC 60770
- IEC 61298-2
- EN 61326-1
Approvals
