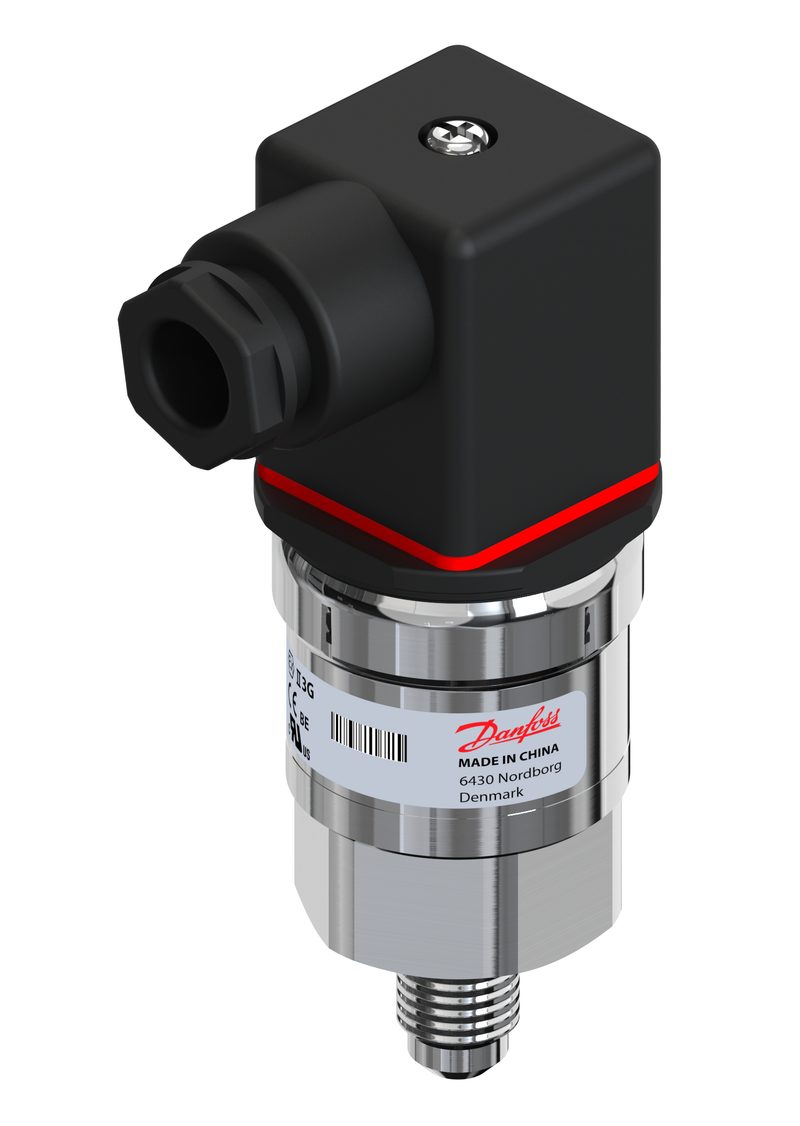

Danfoss DST P310 pressure transmitter -1 to 12 bar ratiometric 0.5-4.5 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss DST P310 pressure transmitter, code 076G1016. Measuring range -1 to 12 bar (-14.5 to 174 psi). Output ratiometric 0.5-4.5 V, supply 4.5-5.5 V DC. Piezo-resistive silicon MEMS sensing element, sealed-gauge reference. Process connection 7/16-20 UNF male, 1/4 in flare; electrical connection angular connector EN 175301-803-A, Pg 9; enclosure IP65. Supplied as OEM original where available, or a verified compatible equivalent.
Technical Specifications
- Type
- DST P310
- Code number
- 076G1016
- Measuring range
- -1 to 12 bar (-14.5 to 174 psi)
- Output signal
- ratiometric 0.5-4.5 V
- Supply voltage
- 4.5-5.5 V DC
- Accuracy
- ±0.5% FS typical, ±1% FS maximum (total error band)
- Sensing
- piezo-resirigide silicon MEMS, sealed-gauge reference
- Process connection
- 7/16-20 UNF male, 1/4 in flare
- Electrical connection
- angular connector EN 175301-803-A, Pg 9
- Enclosure
- IP65
- Media temperature
- -40°C to +125°C
- Ambient temperature
- -40°C to +85°C
- Weight
- 0.15 kg
- Product group
- Sensors
- Approval
- ATEX; C UL US UL Recognized; CE
- Approval standard
- 6967179; E227388; E31024
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- EAN
- 5715162468517
- Accuracy, max.
- 1.00 %
- Accuracy, typical
- 0.5 %
- Adj. zero point and span
- No
- Compensated temp. range
- -40 °C to 120 °C
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- Fault signal level
- 2.00
- Flush diaphragm
- No
- High Clipping Level
- 99.00
- Intrinsically safe
- No
- Low Clipping level
- 4.00
- Negative / common
- Pin 2
- Overload pressure max.
- 33.0 bar
- Positive / output
- Pin 3
- Positive / supply
- Pin 1
- Pressure connection notes
- Flare 1/4 in
- Pressure connection size
- 7/16-20
- Pressure connection standard
- ISO 11926-2/3
Standards & Compliance
- Material
- 316L stainless steel wetted parts (depending on pressure port)
- Temperature Range
- -40°C to +125°C
- IP Rating
- IP65
- Classification / Approval
- CE, cULus (UL Recognized), ATEX Ex ec IIA T4 Gc
- HS Code
- 9026.20
Compatibility & Fitment
Verify code number, measuring range, output signal (ratiometric / 4-20 mA), process connection and electrical connection before ordering.
