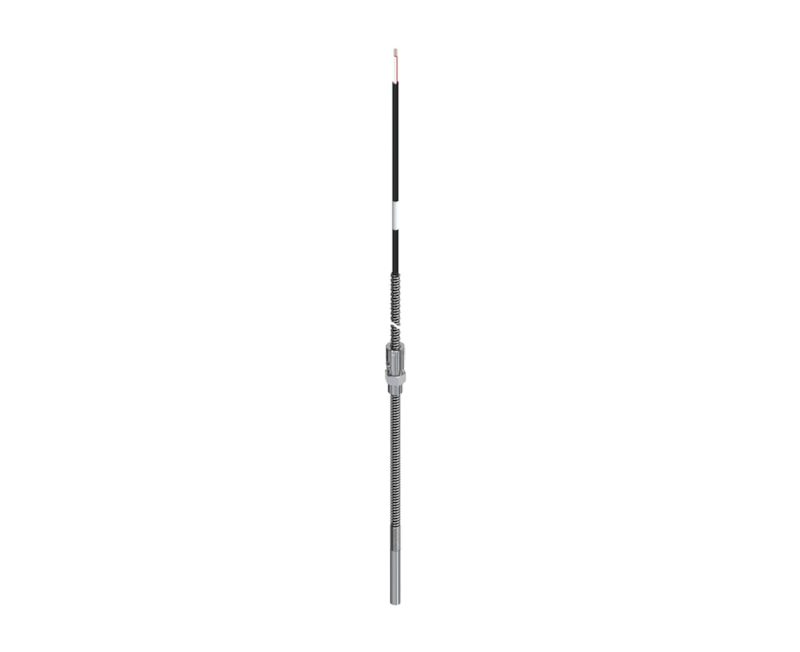

Danfoss MBT 5310 temperature sensor, Pt 100, 50 mm insertion, M 12X1
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5310 insertion temperature sensor, code 084Z4218 (type designation MBT 5310-00-400-1402-1000). Direct resistance/Ohm (resistance / direct RTD) output sensor for refrigeration, HVAC and industrial temperature measurement. Sensor element: Pt 100 (100 ohm at 0 °C) platinum RTD, tolerance Class B. Insertion length 50 mm. Process connection M 12x1 (ISO 965), Stainless steel. Measuring range -40 to 150 °C. Output Ohm (resistance / direct RTD). Electrical connection Cable, 3 wire. Net weight 0.487 kg / gross 0.498 kg. Supplied multi pack, 4 pc. CE marked. EAN 5702428046442. OEM P/N 084Z4218.
Technical Specifications
- Type
- Danfoss MBT 5310 — Temperature sensor
- Type designation
- MBT 5310-00-400-1402-1000
- Code number
- 084Z4218
- Product group
- Sensors
- Sensor element
- Pt 100 (100 ohm at 0 °C) platinum RTD
- Element tolerance
- Class B
- Element standard
- EN 60751
- Insertion length
- 50 mm
- Process connection
- M 12x1 (ISO 965)
- Process connection material
- Stainless steel
- Measuring range
- -40 to 150 °C
- Output signal
- Ohm (resistance / direct RTD)
- Electrical connection
- Cable, 3 wire
- Packing format
- Multi pack
- Quantity per pack
- 4 pc
- Net weight
- 0.487 kg
- Gross weight
- 0.498 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702428046442
Standards & Compliance
- Standard
- EN 60751
- Size / Series
- 50 mm insertion
- Material
- Stainless steel protection tube
- Thread Standard
- ISO 965
- Temperature Range
- -40 to 150 °C
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection (M 12x1 (ISO 965)), insertion 50 mm matches the application before ordering.
