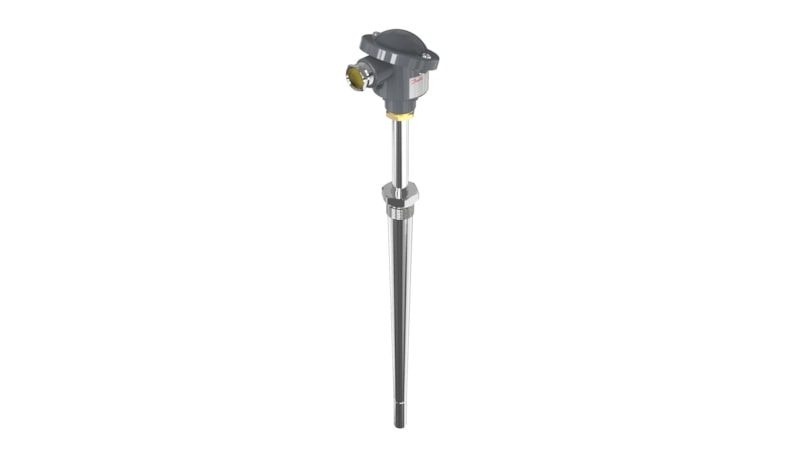

Danfoss MBT 5113 temperature sensor, Thermocouple, 300 mm insertion, G 3/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5113 insertion temperature sensor, code 084Z4227 (type designation MBT 5113-B002-300-10-H160). Direct resistance/RTD output sensor for refrigeration, HVAC and industrial temperature measurement. Sensor element: Thermocouple (EN 60584-2), tolerance Class 2. Insertion length 300 mm. Process connection G 3/4 (ISO 228-1-A), AISI 316 Ti. Measuring range 0 to 600 °C. Electrical connection Type B, Pg 16. Enclosure IP65. Net weight 0.637 kg / gross 0.642 kg. Supplied multi pack, 6 pc. CE marked. EAN 5702428533997. OEM P/N 084Z4227.
Technical Specifications
- Type
- Danfoss MBT 5113 — Temperature sensor
- Type designation
- MBT 5113-B002-300-10-H160
- Code number
- 084Z4227
- Product group
- Sensors
- Sensor element
- Thermocouple (EN 60584-2)
- Element tolerance
- Class 2
- Element standard
- EN 60584-2
- Insertion length
- 300 mm
- Process connection
- G 3/4 (ISO 228-1-A)
- Process connection material
- AISI 316 Ti
- Measuring range
- 0 to 600 °C
- Electrical connection
- Type B, Pg 16
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 6 pc
- Net weight
- 0.637 kg
- Gross weight
- 0.642 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702428533997
Standards & Compliance
- Standard
- EN 60584-2
- Size / Series
- 300 mm insertion
- Material
- AISI 316 Ti protection tube
- Thread Standard
- ISO 228-1-A
- Temperature Range
- 0 to 600 °C
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection (G 3/4 (ISO 228-1-A)), insertion 300 mm matches the application before ordering.
