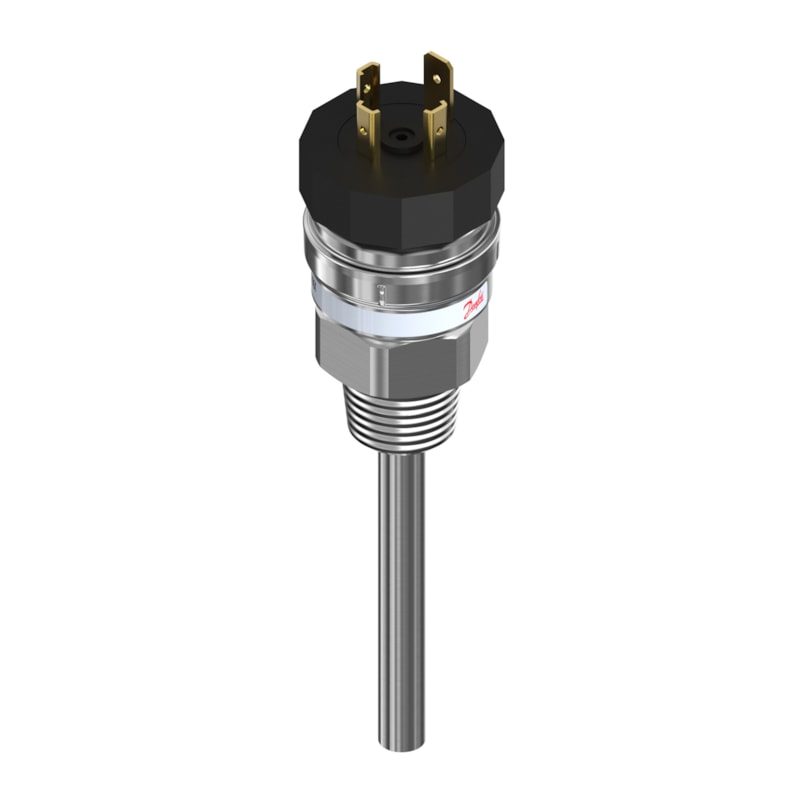

Danfoss MBT 3560 temperature transmitter, Pt 1000, 80 mm insertion, NPT 1/2-14 (code 084Z4240)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3560 insertion temperature transmitter, code 084Z4240 (type designation MBT 3560-0000-0080-97-115). Compact sensor with an integrated 2-wire, loop-powered transmitter delivering a factory-scaled 4-20 mA output for refrigeration, HVAC and machinery temperature control. Sensor element: Pt 1000 (1000 ohm at 0 °C) platinum RTD, tolerance < ± 1% FS. Insertion length 80 mm. Process connection NPT 1/2-14 (ANSI/ASME B1.20.1), Stainless steel. Transmitter setting range 0 to 150 °C. Output 4-20 mA (2-wire, loop-powered). Electrical connection Angular connector, 4 pin. Enclosure IP65. Net weight 0.135 kg / gross 0.183 kg. Supplied multi pack, 13 pc. CE marked. EAN 5715162735800. OEM P/N 084Z4240.
Technical Specifications
- Type
- Danfoss MBT 3560 — Temperature transmitter
- Type designation
- MBT 3560-0000-0080-97-115
- Code number
- 084Z4240
- Product group
- Sensors
- Sensor element
- Pt 1000 (1000 ohm at 0 °C) platinum RTD
- Element tolerance
- < ± 1% FS
- Insertion length
- 80 mm
- Process connection
- NPT 1/2-14 (ANSI/ASME B1.20.1)
- Process connection material
- Stainless steel
- Transmitter setting range
- 0 to 150 °C
- Output signal
- 4-20 mA (2-wire, loop-powered)
- Electrical connection
- Angular connector, 4 pin
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 13 pc
- Net weight
- 0.135 kg
- Gross weight
- 0.183 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5715162735800
Standards & Compliance
- Size / Series
- 80 mm insertion
- Material
- Stainless steel protection tube
- Thread Standard
- ANSI/ASME B1.20.1
- Temperature Range
- 0 to 150 °C
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
MBT built-in transmitter (4-20 mA, 2-wire). Confirm the 0 to 150 °C output scaling matches the receiving controller/PLC, a 10-32 V DC loop supply is available, and the insertion length (80 mm) / process thread (NPT 1/2-14 (ANSI/ASME B1.20.1)) suit the mounting boss.
