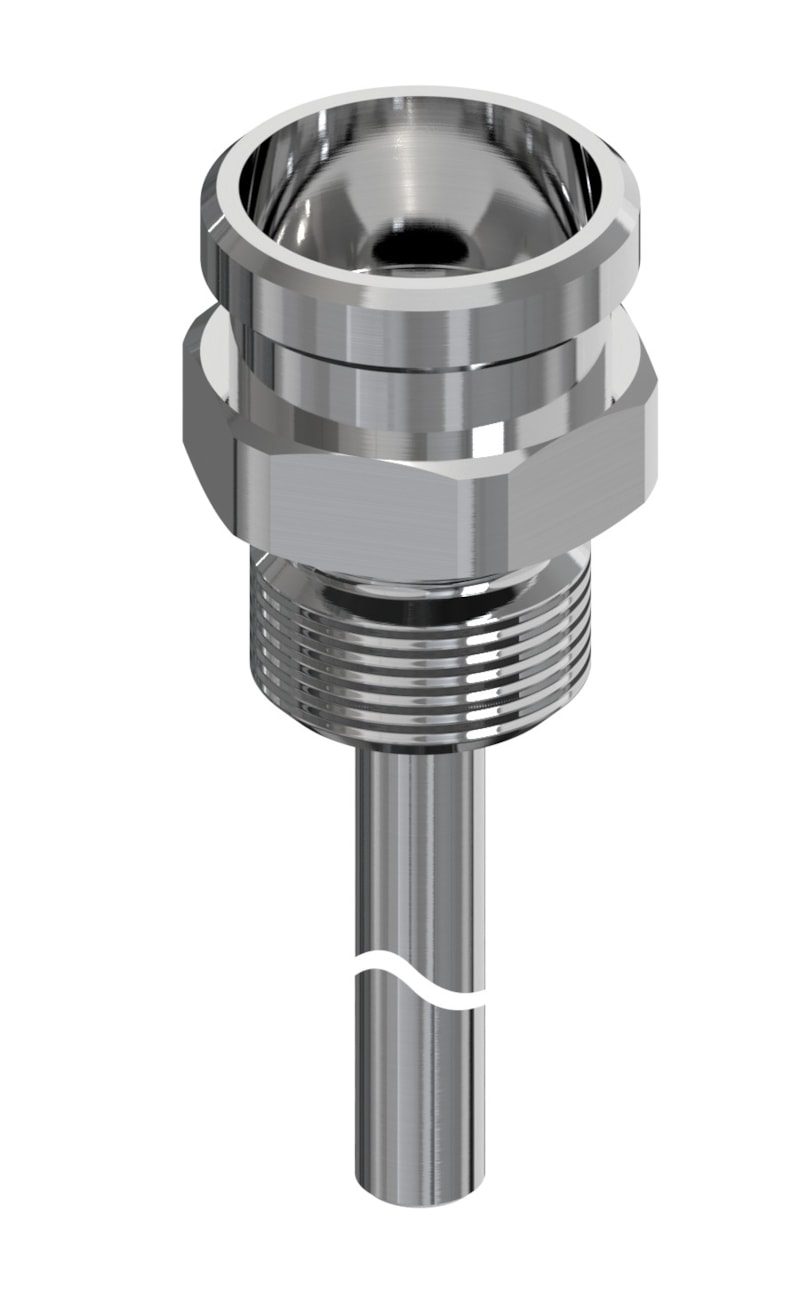

Danfoss MBT 120 sensor pocket (thermowell), 100 mm insertion, G 1/2 (code 084Z4422)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 120 sensor pocket (thermowell), code 084Z4422 (type designation MBT 120-010-0100-3). Screw-in protection pocket that isolates the temperature sensor from the process medium and allows the sensor/insert to be removed without breaking into the system. Insertion length 100 mm. Process connection G 1/2 (ISO 228-1-A), AISI 316 Ti. Net weight 0.081 kg / gross 0.088 kg. Supplied multi pack, 40 pc. CE marked. EAN 5702423191949. OEM P/N 084Z4422.
Technical Specifications
- Type
- Danfoss MBT 120 — Sensor pocket
- Type designation
- MBT 120-010-0100-3
- Code number
- 084Z4422
- Product group
- Accessories, sensors
- Insertion length
- 100 mm
- Process connection
- G 1/2 (ISO 228-1-A)
- Process connection material
- AISI 316 Ti
- Packing format
- Multi pack
- Quantity per pack
- 40 pc
- Net weight
- 0.081 kg
- Gross weight
- 0.088 kg
- Approvals
- CE
- EU RoHS
- Yes
- Lifecycle status
- Current
- EAN
- 5702423191949
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion length [in]
- 3.94 in
- Insertion length [mm]
- 100 mm
- Insertion type
- Fixed
- Process connection Male/Female
- Male
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- UL mark
- No
- Used for product
- MBT 5250
Standards & Compliance
- Size / Series
- 100 mm insertion
- Material
- AISI 316 Ti
- Thread Standard
- ISO 228-1-A
- Classification / Approval
- CE
- HS Code
- 9025.90
Compatibility & Fitment
Sensor pocket/thermowell. Confirm the pocket bore accepts the intended sensor/insert diameter and that the process thread (G 1/2 (ISO 228-1-A)) and insertion length (100 mm) match the boss.
