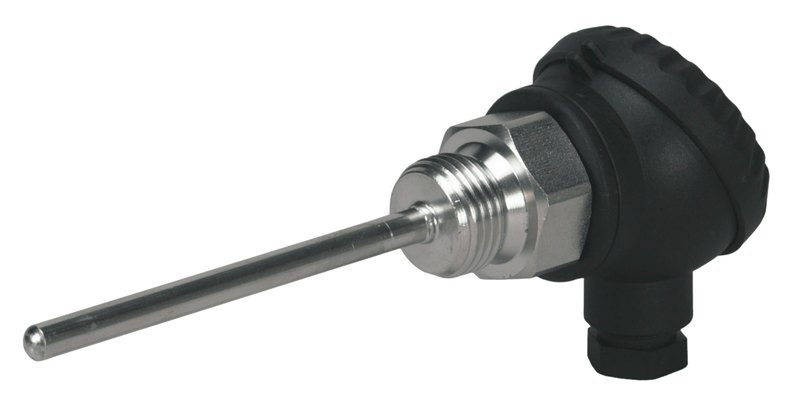

Danfoss ESMU-100 immersion temperature sensor Pt 1000 stainless steel 100 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ESMU-100 immersion temperature sensor with a Pt 1000 Ohm platinum element in a 100 mm AISI 316 stainless-steel stem, supplied with a G1/2A union and washer plus a PG9 terminal head. For direct or pocket-mounted flow/return temperature measurement in heating systems. Enclosure IP54. OEM P/N 087B1182. EAN 5702421064528. Verbatim technical data from store.danfoss.com (code 087B1182).
Technical Specifications
- Type
- ESMU-100
- Code number
- 087B1182
- Function
- Immersion temperature sensor
- Sensor element
- Pt (platinum resistance), Pt 1000
- Resistance
- 1000 Ohm
- Stem material
- Stainless steel AISI 316
- Sensor length
- 100 mm
- Sensor diameter
- 6 mm
- Mounting version
- G1/2A and washer (supplied with the product)
- Electrical connection
- Terminal plug for two wires in head, PG9 cable entry (supplied)
- Media temperature range
- 0 to +140 °C
- Nominal pressure
- 25 bar
- Time constant
- 2 s (water), 7 s (air)
- Grade of enclosure
- IP54
- Net weight
- 0.132 kg
- Gross weight
- 0.132 kg
- EU RoHS
- Yes
- China RoHS
- Out of scope
- REACH candidate-list
- None
- EAN
- 5702421064528
Standards & Compliance
- Material
- AISI 316 stainless-steel stem, Pt 1000 platinum element
- Pressure Rating
- 25 bar
- Temperature Range
- 0 to +140 °C
- IP Rating
- IP54
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss ESMU-100 immersion temperature sensor. Confirm sensor element (Pt 1000) and stem/mounting match the controller input before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ESMU-250 immersion temperature sensor Pt 1000 stainless steel 250 mm
087B1183
Danfoss

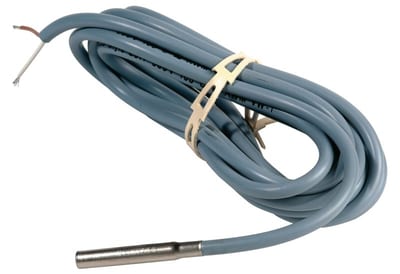

Danfoss ESMB-12 universal temperature sensor Pt 1000
087B1184
Danfoss

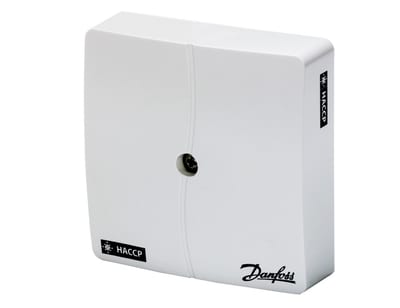

Danfoss AK-HS 1000 box temperature sensor Pt 1000 5.5 m
084N1007
Danfoss

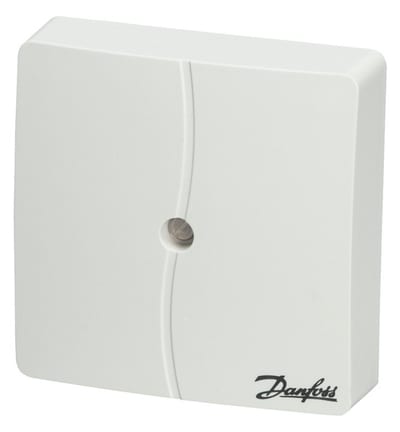

Danfoss ESMT outdoor temperature sensor Pt 1000
