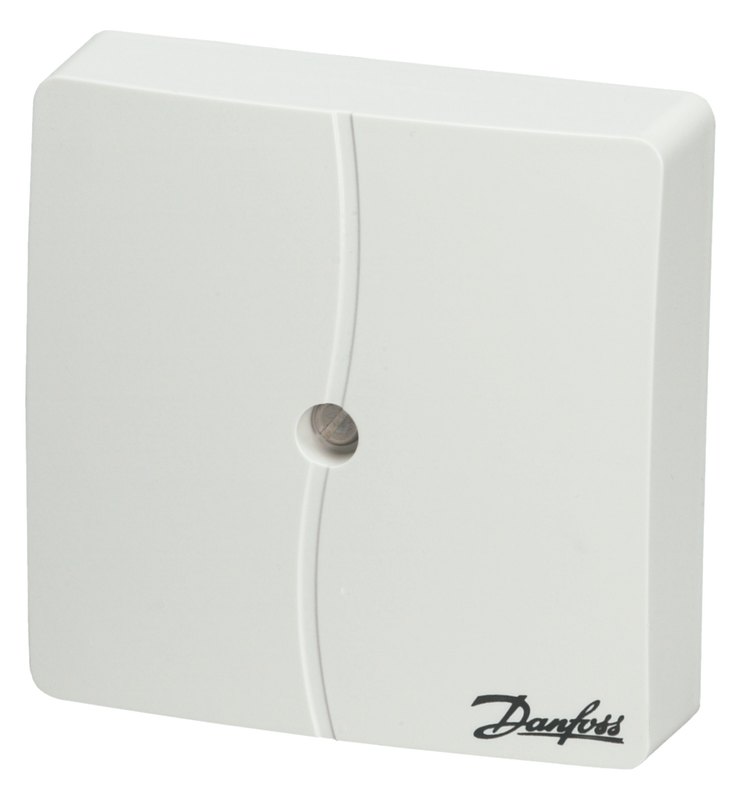

Danfoss ESMT outdoor temperature sensor Pt 1000 industrial pack
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ESMT outdoor (ambient) temperature sensor with a Pt 1000 Ohm platinum element to EN 60751, Class B, in a plastic wall-mount housing. Supplied as a 24 pc industrial pack. Measuring range -30 to +50 °C, 2-wire connection. Enclosure IP54. OEM P/N 084N1013. EAN 5702421011423. Verbatim technical data from store.danfoss.com (code 084N1013).
Technical Specifications
- Type
- ESMT
- Code number
- 084N1013
- Function
- Outdoor temperature sensor
- Sensor element
- Pt (platinum resistance)
- Resistance
- 1000 Ohm
- Element standard
- EN 60751
- Tolerance class
- Class B
- Measuring range
- -30 to +50 °C
- Ambient temperature max.
- 50 °C
- Electrical connection
- 2-wire (2 terminals)
- Housing material
- Plastic
- Sensor insert
- Fixed
- Grade of enclosure
- IP54
- Approval
- CE
- Packing format
- Industrial pack
- Quantity per pack
- 24 pc
- Net weight
- 0.071 kg
- Gross weight
- 0.084 kg
- EU RoHS
- Yes with exemptions (6(c))
- China RoHS
- Out of scope
- REACH candidate-list
- Lead (CAS 7439-92-1)
- SCIP dossier
- d022a76c-d55d-4108-8458-5efb3ea22afc
- EAN
- 5702421011423
Standards & Compliance
- Standard
- EN 60751
- Material
- Plastic housing, Pt 1000 platinum element
- Temperature Range
- -30 to +50 °C
- IP Rating
- IP54
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss ESMT outdoor temperature sensor. Confirm sensor element (Pt 1000) and stem/mounting match the controller input before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ESMT outdoor temperature sensor NTC 12 kOhm
084N1021
Danfoss
Danfoss MBT 400 box temperature sensor Pt 1000
084N1025
Danfoss
Danfoss MBT 400 box temperature sensor NTC 10 kOhm
084N1026
Danfoss
Danfoss stainless-steel pocket for ESMU-100 copper sensor
087B1190
Danfoss
Danfoss stainless-steel pocket for ESMU-250 copper sensor
087B1191
Danfoss
Danfoss stainless-steel pocket for ESMB-12 sensor 100 mm
087B1192
Danfoss
Danfoss stainless-steel pocket for ESMB-12 sensor 250 mm
087B1193
Danfoss

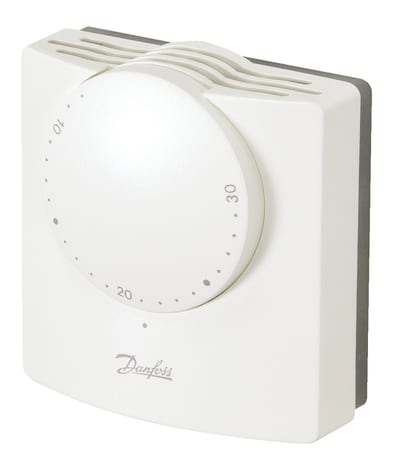

Danfoss RMT 230 electro-mechanical room thermostat 230 V
