Danfoss MBT 400 box temperature sensor Pt 1000
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 400 box (room/air) temperature sensor with a Pt 1000 Ohm platinum element to EN 60751, Class B, in a plastic housing. For ambient/air temperature measurement in refrigeration and HVAC plant. Measuring range -50 to +50 °C, 2-wire connection. Enclosure IP54. OEM P/N 084N1025. EAN 5702428967013. Verbatim technical data from store.danfoss.com (code 084N1025).
Technical Specifications
- Type
- MBT 400
- Code number
- 084N1025
- Function
- Box temperature sensor
- Danfoss range
- HVAC & Food Retail
- Sensor element
- Pt (platinum resistance)
- Resistance
- 1000 Ohm
- Element standard
- EN 60751
- Tolerance class
- Class B
- Measuring range
- -50 to +50 °C
- Electrical connection
- 2-wire (2 terminals)
- Sensor insert
- Fixed
- Grade of enclosure
- IP54
- Approval
- CE
- Packing format
- Multi pack
- Quantity per pack
- 30 pc
- Net weight
- 0.071 kg
- Gross weight
- 0.086 kg
- EU RoHS
- Yes
- China RoHS
- Out of scope
- REACH candidate-list
- None
- EAN
- 5702428967013
Standards & Compliance
- Standard
- EN 60751
- Material
- Plastic housing, Pt 1000 platinum element
- Temperature Range
- -50 to +50 °C
- IP Rating
- IP54
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss MBT 400 box temperature sensor. Confirm sensor element (Pt 1000) and stem/mounting match the controller input before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 400 box temperature sensor NTC 10 kOhm
084N1026
Danfoss
Danfoss stainless-steel pocket for ESMU-100 copper sensor
087B1190
Danfoss
Danfoss stainless-steel pocket for ESMU-250 copper sensor
087B1191
Danfoss
Danfoss stainless-steel pocket for ESMB-12 sensor 100 mm
087B1192
Danfoss
Danfoss stainless-steel pocket for ESMB-12 sensor 250 mm
087B1193
Danfoss
Danfoss RMT 230 electro-mechanical room thermostat 230 V
087N1110
Danfoss
Danfoss RMT-230 R.THERM electro-mechanical room thermostat 230 V
087N1100
Danfoss

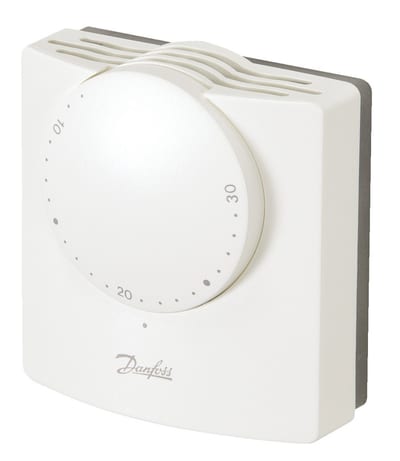

Danfoss RMT-230T R.TH. electro-mechanical room thermostat 230 V
