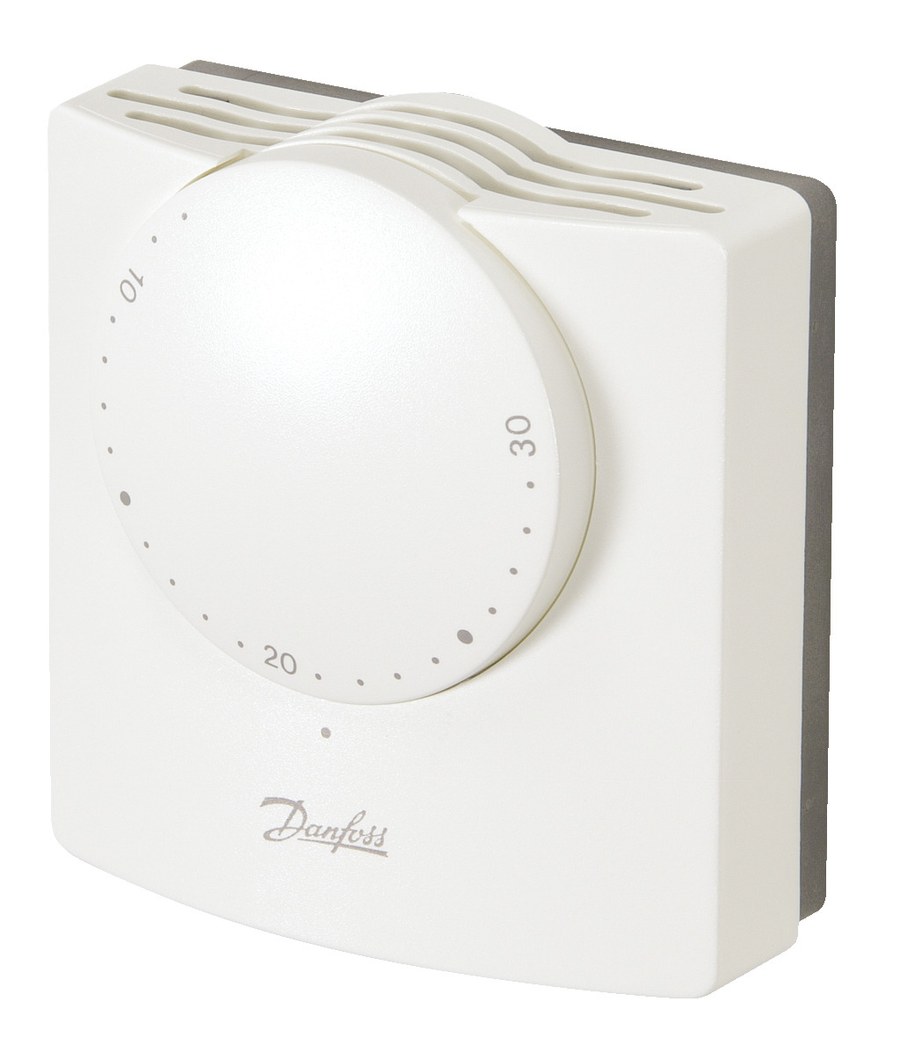

Danfoss RMT-230 R.THERM electro-mechanical room thermostat 230 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RMT-230 R.THERM, an 230 V electro-mechanical room thermostat with accelerator (anticipating) resistor and SPDT contact. Supply voltage 230 V a.c. The dial adjusts a set-point of +8 to +30 °C with a 1 °C switching differential; the changeover (SPDT) relay is rated 10 A resistive / 4 A inductive. OEM P/N 087N1100. EAN 5702420019062. Verbatim technical data from store.danfoss.com (code 087N1100).
Technical Specifications
- Type
- RMT-230 R.THERM
- Code number
- 087N1100
- Product group
- Electro-mechanical room thermostat
- Category
- Mechanical dial thermostat
- Supply voltage
- 230 V a.c.
- Contact system
- SPDT (changeover)
- Output relay rating (resirigide)
- 10 A
- Output relay rating (inductive)
- 4 A
- Set-point range
- +8 to +30 °C
- Switching differential (max)
- 1 °C
- Accelerator (anticipating) resistor
- Yes
- Built-in thermometer
- No
- Night set-back
- No
- Dimensions (H x W x D)
- 80 x 80 x 40 mm
- Net weight
- 0.138 kg
- Gross weight
- 0.144 kg
- EU RoHS
- Yes
- China RoHS
- Out of scope
- REACH candidate-list
- None
- WEEE
- In scope (EEE category 5)
- Warranty
- 5 years
- EAN
- 5702420019062
Standards & Compliance
- Temperature Range
- +8 to +30 °C (set-point)
- Classification / Approval
- CE
- HS Code
- 9032.10
Compatibility & Fitment
Danfoss RMT-230 R.THERM room thermostat. Confirm system voltage (230 V a.c.) and required features (accelerator resistor: Yes, built-in thermometer: No, night set-back: No) before ordering; RMT-230 and RMT-24 are NOT interchangeable across supply voltages.
