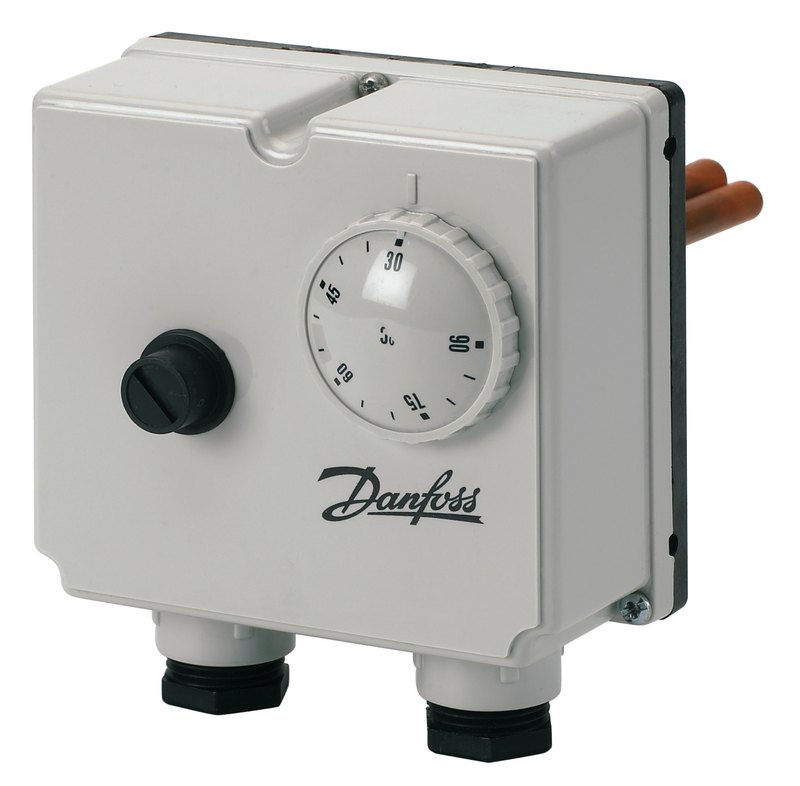

Danfoss ST-2 safety thermostat
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ST-2 combined safety thermostat for district heating/cooling circulation water, integrating a safety temperature limiter (STB, manual-reset lockout) plus temperature regulator (TR) in one housing with two temperature sensors. Safety limiter STB: 95 °C (fixed), manual reset. Regulator TR setting: 30 to 90 °C. Sensor pocket brass Ms 58 / copper, R ½ connection, 9 mm dia x 100 mm sensor, PN 10 bar, IP40, Pg 20 cable entry. OEM P/N 087N1051. EAN 5702421715024. Verbatim technical data from store.danfoss.com (code 087N1051).
Technical Specifications
- Type
- ST-2
- Code number
- 087N1051
- Product group
- Safety thermostats
- Function
- safety temperature limiter (STB, manual-reset lockout) plus temperature regulator (TR)
- Safety limiter STB
- 95 °C (fixed), manual reset
- Regulator TR setting
- 30 to 90 °C
- Differential STB
- 12 (±3) K; Differential TR: 4 (±1) K
- Number of temperature sensors
- 2
- Cut-out accuracy
- 0 to 6 K
- Permissible media
- District heating/cooling circulation water
- Nominal pressure
- 10 bar
- Sensor connection
- R ½
- Sensor pocket material
- Brass Ms 58 / copper
- Sensor diameter
- 9 mm
- Sensor length
- 100 mm
- Max sensor temperature
- 130 °C
- Contacts
- Ag 1000/1000
- Contact rating (ohmic)
- 10 A
- Contact rating (inductive)
- 2.5 A
- Contact rating (three-phase)
- 7 A
- Cable entry
- Pg 20
- Grade of enclosure
- IP40
- Mounting orientation
- No restriction
- Ambient temperature (max)
- 80 °C
- Net weight
- 0.458 kg
- Gross weight
- 0.458 kg
- EU RoHS
- Yes (with exemption 6(c))
- China RoHS
- Out of scope
- REACH candidate-list
- Lead (CAS 7439-92-1)
- EAN
- 5702421715024
Standards & Compliance
- Material
- Sensor pocket brass Ms 58 / copper; contacts Ag 1000/1000
- Pressure Rating
- 10 bar
- Temperature Range
- STB 95 °C manual-reset + TR 30-90 °C
- IP Rating
- IP40
- Classification / Approval
- CE
- HS Code
- 9032.10
Compatibility & Fitment
Danfoss ST-2. ST-1 (087N1050) is an auto-reset safety monitor; ST-2 (087N1051) is a manual-reset safety limiter — select per the plant safety concept (EN 14597). Confirm sensor pocket length and R ½ connection.
Product Documentation
More from Danfoss
Danfoss

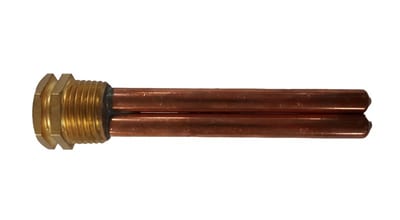

Danfoss sensor pocket for ST-1 / ST-2 safety thermostat
087N1201
Danfoss
Danfoss ECA 99 transformer 230 / 24 V
087B1156
Danfoss

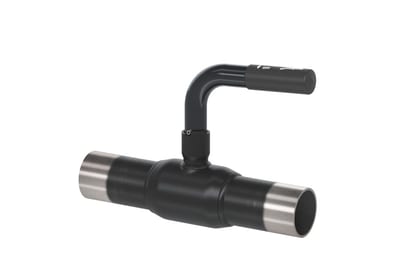

Danfoss JIP-WW ball valve DN 15 PN 40 — reduced bore, handle
065N1100
Danfoss

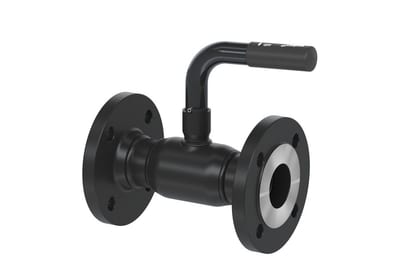

Danfoss JIP-FF ball valve DN 15 PN 40 — reduced bore, handle
065N1101
Danfoss

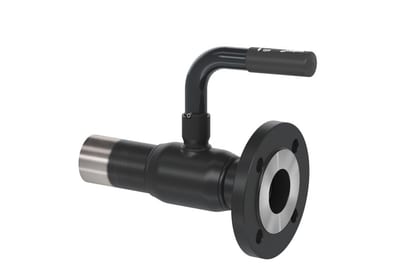

Danfoss JIP-FW ball valve DN 15 PN 40 — reduced bore, handle
065N1102
Danfoss
Danfoss JIP-WW ball valve DN 20 PN 40 — full bore, handle
065N1105
Danfoss

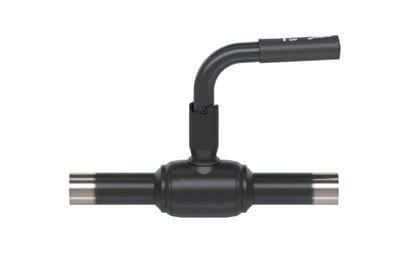

Danfoss JIP-WW ball valve DN 25 PN 40 — full bore, handle
