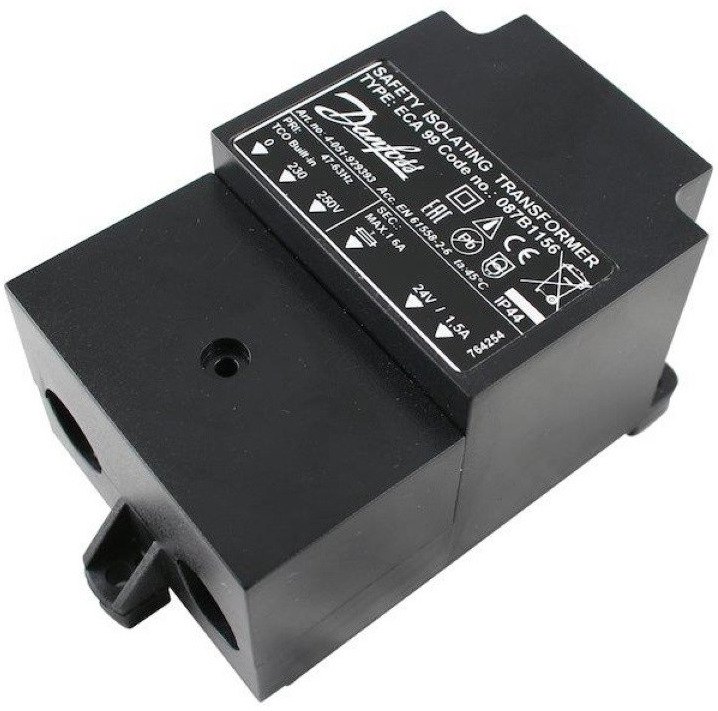

Danfoss ECA 99 transformer 230 / 24 V

Danfoss ECA 99 mains transformer supplying 24 V a.c. from a 230 V a.c. mains supply, used to power 24 V ECL Comfort electronic controllers and their 24 V accessories. Output voltage 24 V a.c., ambient 0 to +50 °C. OEM P/N 087B1156. EAN 5702421640470. Verbatim technical data from store.danfoss.com (code 087B1156).

Type

ECA 99

Code number

087B1156

Product group

Accessories — electronic controllers

Function

Mains transformer 230 V a.c. -> 24 V a.c.

Mains supply

230 V a.c.

Output voltage

24 V a.c.

Ambient temperature

0 to +50 °C

Storage / transport temperature

-40 to +70 °C

Net weight

1.034 kg

Gross weight

1.047 kg

EU RoHS

Yes

REACH candidate-list

None

EAN

5702421640470

Ambient temperature [°C] [max]

50 °C

Ambient temperature [°C] [min]

0 °C

Description

ECA 99 TRANSFORMER 24 V

EU RoHS compliance

Yes

Label product

Yes

Mounting version

230 V a.c. Mains supply

Output voltage [V] AC

24 V

REACH Candidate List substances

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Supply voltage [V] AC

24 V

Transport temperature [°C] [Max]

70 °C

Transport temperature [°C] [Min]

-40 °C

Temperature Range

0 to +50 °C (ambient)

Classification / Approval

CE

HS Code

8504.31
