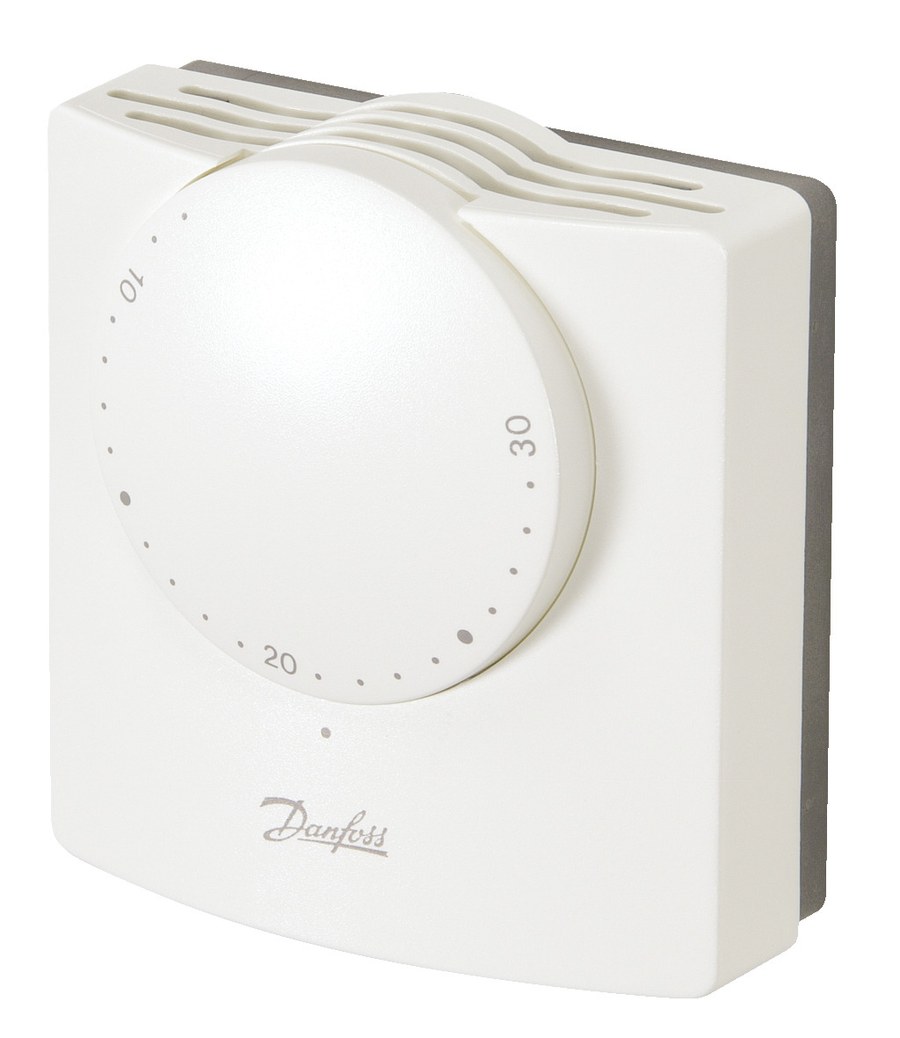

Danfoss RMT-24 T.THERM. electro-mechanical room thermostat 24 V

Danfoss RMT-24 T.THERM., an 24 V electro-mechanical room thermostat with accelerator, built-in thermometer and night set-back, SPDT contact. Supply voltage 24 V a.c. The dial adjusts a set-point of +8 to +30 °C with a 1 °C switching differential; the changeover (SPDT) relay is rated 10 A resistive / 4 A inductive. OEM P/N 087N1197. EAN 5702420019192. Verbatim technical data from store.danfoss.com (code 087N1197).

Type

RMT-24 T.THERM.

Code number

087N1197

Product group

Electro-mechanical room thermostat

Category

Mechanical dial thermostat

Supply voltage

24 V a.c.

Contact system

SPDT (changeover)

Output relay rating (resirigide)

10 A

Output relay rating (inductive)

4 A

Set-point range

+8 to +30 °C

Switching differential (max)

1 °C

Accelerator (anticipating) resistor

Yes

Built-in thermometer

Yes

Night set-back

Yes

Dimensions (H x W x D)

80 x 80 x 40 mm

Net weight

0.148 kg

Gross weight

0.154 kg

EU RoHS

Yes

China RoHS

Out of scope

REACH candidate-list

None

WEEE

In scope (EEE category 5)

Warranty

5 years

EAN

5702420019192

Temperature Range

+8 to +30 °C (set-point)

Classification / Approval

CE

HS Code

9032.10
