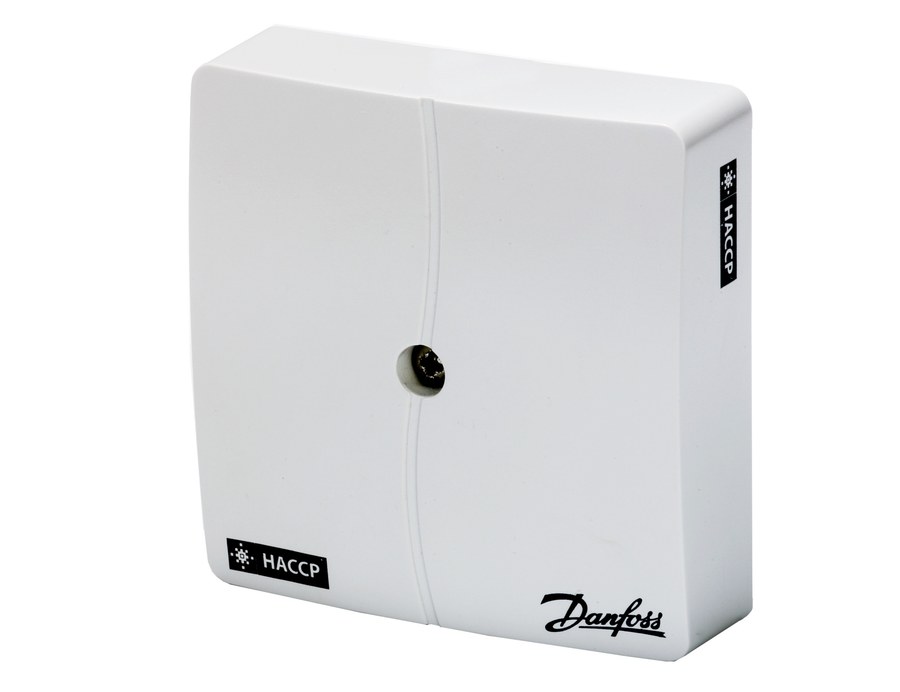

Danfoss AK-HS 1000 box temperature sensor Pt 1000 5.5 m
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AK-HS 1000 box (room/air) temperature sensor with a Pt 1000 Ohm platinum element to EN 60751, Class B, and a 5.5 m PVC cable. HACCP-compliant to EN 441 for food-retail cold-room and cabinet temperature measurement. Enclosure IP54. OEM P/N 084N1007. EAN 5702423264667. Verbatim technical data from store.danfoss.com (code 084N1007).
Technical Specifications
- Type
- AK-HS 1000
- Code number
- 084N1007
- Function
- Box temperature sensor
- Danfoss range
- HVAC & Food Retail
- Sensor element
- Pt (platinum resistance)
- Resistance
- 1000 Ohm
- Element standard
- EN 60751
- Tolerance class
- Class B
- Measuring range
- -30 to +50 °C
- Ambient temperature max.
- 60 °C
- Cable length
- 5.5 m
- Cable material
- PVC
- Cable temperature range
- -40 to +100 °C
- Electrical connection
- 2-wire
- Housing material
- Plastic
- Grade of enclosure
- IP54
- Compliance note
- HACCP, complies with EN 441
- Packing format
- Multi pack
- Quantity per pack
- 20 pc
- Net weight
- 0.241 kg
- Gross weight
- 0.252 kg
- EU RoHS
- Yes
- China RoHS
- Out of scope
- REACH candidate-list
- None
- EAN
- 5702423264667
Standards & Compliance
- Standard
- EN 60751
- Material
- PVC cable, Pt 1000 platinum element
- Temperature Range
- -30 to +50 °C
- IP Rating
- IP54
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss AK-HS 1000 box temperature sensor. Confirm sensor element (Pt 1000) and stem/mounting match the controller input before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ESMT outdoor temperature sensor Pt 1000
084N1012
Danfoss
Danfoss ESMT outdoor temperature sensor Pt 1000 industrial pack
084N1013
Danfoss
Danfoss ESMT outdoor temperature sensor NTC 12 kOhm
084N1021
Danfoss
Danfoss MBT 400 box temperature sensor Pt 1000
084N1025
Danfoss
Danfoss MBT 400 box temperature sensor NTC 10 kOhm
084N1026
Danfoss

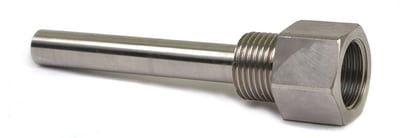

Danfoss stainless-steel pocket for ESMU-100 copper sensor
