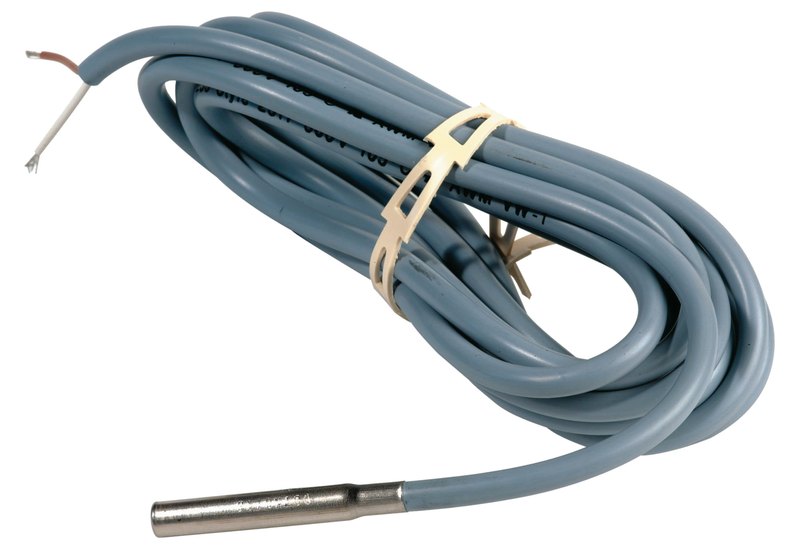

Danfoss ESMB-12 universal temperature sensor Pt 1000
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ESMB-12 universal temperature sensor with a Pt 1000 Ohm platinum element in a 45 mm stainless-steel stem, for pipe, flat-surface or pocket mounting. A 2 x 0.2 mm² 2-wire cable is fitted. Danfoss also lists this same ESMB-12 Pt 1000 sensor under order code 087B1185 (industrial-pack format). Enclosure IP54. OEM P/N 087B1184. EAN 5702421064566. Danfoss lists this sensor under interchangeable order code(s) 087B1185 (same construction; differing only in packing/order revision). Verbatim technical data from store.danfoss.com (code 087B1184).
Technical Specifications
- Type
- ESMB-12
- Code number
- 087B1184
- Function
- Universal temperature sensor
- Sensor element
- Pt (platinum resistance), Pt 1000
- Stem material
- Stainless steel
- Sensor length
- 45 mm
- Sensor diameter
- 5.7 mm
- Mounting version
- For pipe or flat surface or in pocket
- Electrical connection
- 2-wire cable (2 x 0.2 mm²)
- Media temperature range
- 0 to +100 °C
- Time constant
- 20 s
- Grade of enclosure
- IP54
- Net weight
- 0.08 kg
- Gross weight
- 0.086 kg
- EU RoHS
- Yes
- China RoHS
- Out of scope
- REACH candidate-list
- None
- EAN
- 5702421064566
- Interchangeable order codes
- 087B1185 (industrial pack)
- Product group
- Sensors
- Body material
- Stainless steel
- China RoHS compliance
- Out of scope
- Description
- ESMB-12, Pt 1000 Universal sensor
- Electrical connections terminals
- 2-wire cable (2 x 0,2 mm2)
- EU RoHS compliance
- Yes
- Label product
- Yes
- Media temperature [°C] [Max]
- 100 °C
- Media temperature [°C] [Min]
- 0 °C
- REACH Candidate List substances
- No
- Temperature sensor diameter [mm]
- 5.7 mm
- Temperature sensor length [mm]
- 45 mm
- Temperature sensors type
- Pt 1000
Standards & Compliance
- Material
- Stainless-steel stem, Pt 1000 platinum element
- Temperature Range
- 0 to +100 °C
- IP Rating
- IP54
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss ESMB-12 universal temperature sensor. Confirm sensor element (Pt 1000) and stem/mounting match the controller input before ordering.
