Danfoss ESM-10 room temperature sensor Pt 1000
Pricing
Request a quote
We reply within 24 hours
Product Description

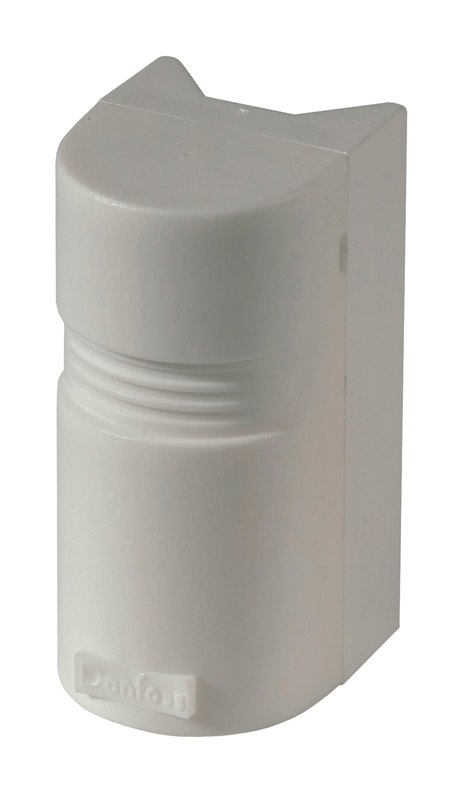

Danfoss ESM-10 wall-mounted room temperature sensor with a Pt 1000 Ohm platinum element, for room-reference measurement on ECL Comfort and other Danfoss heating controllers. Enclosure IP54. OEM P/N 087B1164. EAN 5702421011331. Verbatim technical data from store.danfoss.com (code 087B1164).
Technical Specifications
- Type
- ESM-10
- Code number
- 087B1164
- Function
- Room temperature sensor
- Sensor element
- Pt (platinum resistance), Pt 1000
- Resistance
- 1000 Ohm
- Mounting version
- Wall mounting with screws
- Body material
- ABS
- Electrical connection
- Terminal block for 2 wires in base part
- Media temperature range
- -30 to +50 °C
- Time constant
- 8 min
- Grade of enclosure
- IP54
- Net weight
- 0.023 kg
- Gross weight
- 0.036 kg
- EU RoHS
- Yes
- China RoHS
- Out of scope
- REACH candidate-list
- None
- EAN
- 5702421011331
- Product group
- Sensors
- China RoHS compliance
- Out of scope
- Description
- ESM-10, Pt 1000 room temperature sensor
- Electrical connections terminals
- Terminal block for 2 wires in base part
- EU RoHS compliance
- Yes
- Label product
- Yes
- Media temperature [°C] [Max]
- 50 °C
- Media temperature [°C] [Min]
- -30 °C
- REACH Candidate List substances
- No
- Sensor type
- Room
- Temperature sensors type
- Pt 1000
Standards & Compliance
- Material
- ABS housing, Pt 1000 platinum element
- Temperature Range
- -30 to +50 °C
- IP Rating
- IP54
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss ESM-10 room temperature sensor. Confirm sensor element (Pt 1000) and stem/mounting match the controller input before ordering.
