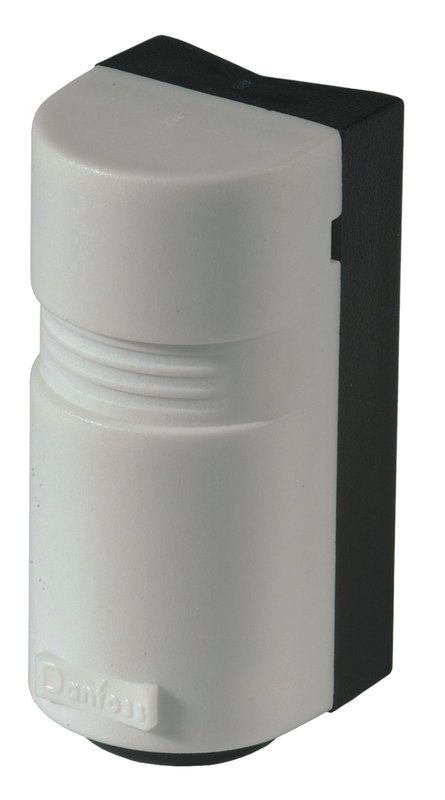

Danfoss ESM-11 surface / pipe temperature sensor Pt 1000
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ESM-11 surface (strap-on) temperature sensor with a Pt 1000 Ohm platinum element, supplied with a clamp for tube DN 15-65. Used for pipe-surface flow/return temperature measurement on ECL Comfort and other Danfoss heating controllers. Enclosure IP32. OEM P/N 087B1165. EAN 5702421011478. Verbatim technical data from store.danfoss.com (code 087B1165).
Technical Specifications
- Type
- ESM-11
- Code number
- 087B1165
- Function
- Surface (strap-on) temperature sensor
- Sensor element
- Pt (platinum resistance), Pt 1000
- Resistance
- 1000 Ohm
- Mounting version
- Clamp for tube DN 15-65 supplied
- Body material
- Polycarbonate
- Electrical connection
- Terminal block for 2 wires in base part
- Media temperature range
- 0 to +100 °C
- Time constant
- 3 s
- Grade of enclosure
- IP32
- Net weight
- 0.026 kg
- Gross weight
- 0.04 kg
- EU RoHS
- Yes
- China RoHS
- Out of scope
- REACH candidate-list
- None
- EAN
- 5702421011478
- Product group
- Sensors
- China RoHS compliance
- Out of scope
- Description
- ESM-11, Pt 1000 Surface sensor
- Electrical connections terminals
- Terminal block for 2 wires in base part
- EU RoHS compliance
- Yes
- Label product
- Yes
- Media temperature [°C] [Max]
- 100 °C
- Media temperature [°C] [Min]
- 0 °C
- REACH Candidate List substances
- No
- Temperature sensors type
- Pt 1000
Standards & Compliance
- Material
- Polycarbonate housing, Pt 1000 platinum element
- Temperature Range
- 0 to +100 °C
- IP Rating
- IP32
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss ESM-11 surface temperature sensor. Confirm sensor element (Pt 1000) and stem/mounting match the controller input before ordering.
Product Documentation
More from Danfoss
Danfoss

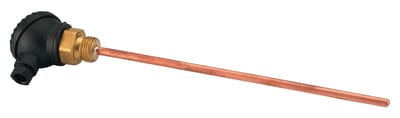

Danfoss ESMU-100 immersion temperature sensor Pt 1000 copper 100 mm
