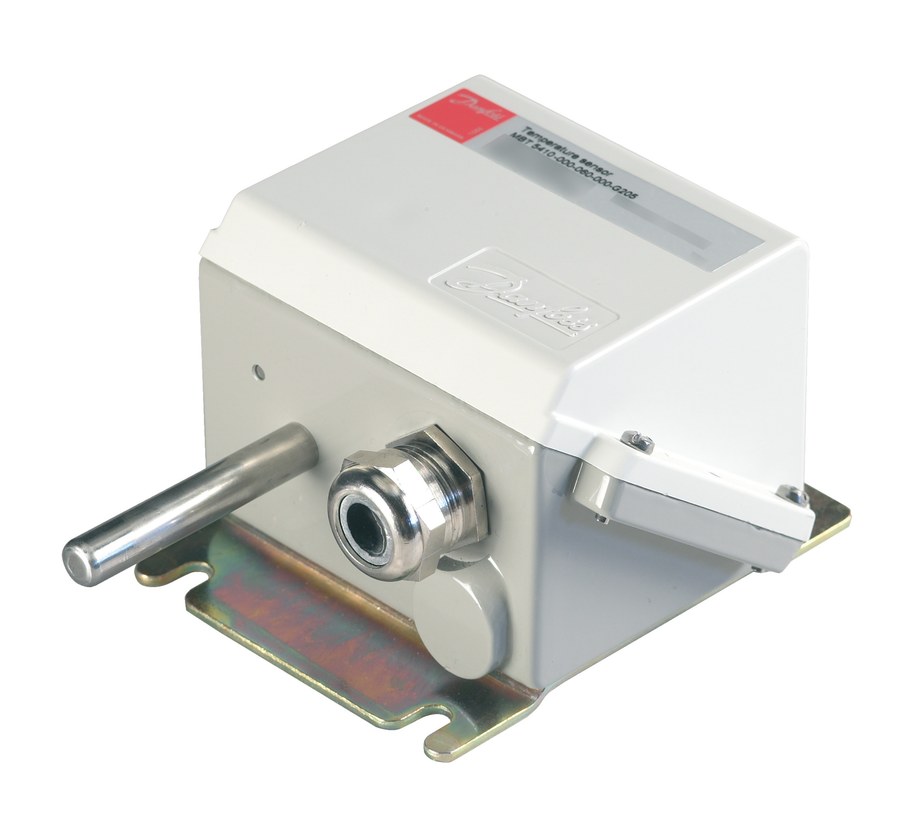

Danfoss MBT 5410 temperature sensor, Pt 100
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5410 insertion temperature sensor, code 084Z4368. Direct resistance/Ohm (resistance / direct RTD) output sensor for refrigeration, HVAC and industrial temperature measurement. Sensor element: Pt 100 (100 ohm at 0 °C) platinum RTD, tolerance EN60751 Class B. Measuring range -50 to 200 °C. Output Ohm (resistance / direct RTD). Electrical connection Cable, 2 wire. Net weight 0.005 kg / gross 0.006 kg. Supplied multi pack, 50 pc. CE marked. EAN 5702423206254. OEM P/N 084Z4368.
Technical Specifications
- Type
- Danfoss MBT 5410 — Temperature sensor
- Code number
- 084Z4368
- Product group
- Sensors
- Sensor element
- Pt 100 (100 ohm at 0 °C) platinum RTD
- Element tolerance
- EN60751 Class B
- Measuring range
- -50 to 200 °C
- Output signal
- Ohm (resistance / direct RTD)
- Electrical connection
- Cable, 2 wire
- Packing format
- Multi pack
- Quantity per pack
- 50 pc
- Net weight
- 0.005 kg
- Gross weight
- 0.006 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702423206254
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- Cable type
- Silicone
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 wire
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element tolerance
- EN60751 Class B
- Sensor element type
- Pt
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Temperature Range
- -50 to 200 °C
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection matches the application before ordering.
