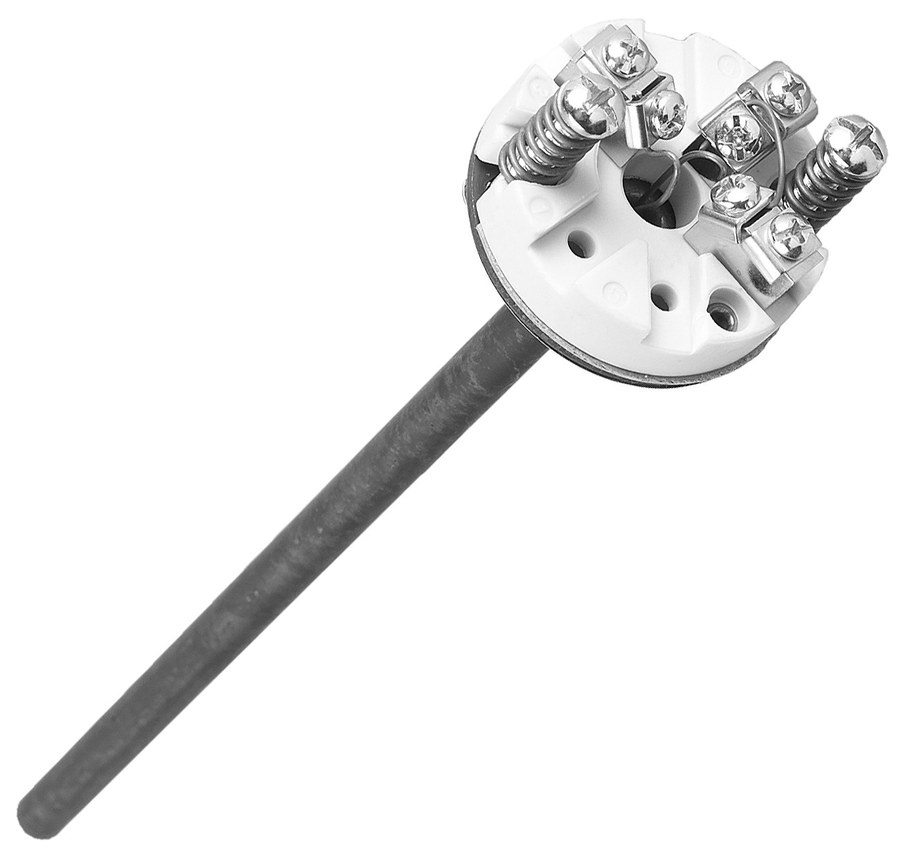

Danfoss MBT 113 temperature sensor, Thermocouple, 273 mm insertion
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 113 insertion temperature sensor, code 084Z4388 (type designation MBT 113-020-273-0000). Direct resistance/mV (thermocouple) output sensor for refrigeration, HVAC and industrial temperature measurement. Sensor element: Thermocouple (EN 60584-2), tolerance Class 2. Insertion length 273 mm. Output mV (thermocouple). Electrical connection Terminal block. Enclosure IP65. Net weight 0.13 kg / gross 0.166 kg. Supplied multi pack, 9 pc. CE marked. EAN 5702423178520. OEM P/N 084Z4388.
Technical Specifications
- Type
- Danfoss MBT 113 — Temperature sensor
- Type designation
- MBT 113-020-273-0000
- Code number
- 084Z4388
- Product group
- Sensors
- Sensor element
- Thermocouple (EN 60584-2)
- Element tolerance
- Class 2
- Element standard
- EN 60584-2
- Insertion length
- 273 mm
- Output signal
- mV (thermocouple)
- Electrical connection
- Terminal block
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 9 pc
- Net weight
- 0.13 kg
- Gross weight
- 0.166 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702423178520
- Ambient temperature max. [°C]
- 90 °C
- Ambient temperature max. [°F]
- 194 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 10.7 in
- Insertion length [mm]
- 273 mm
- Insertion type
- Fixed
- Number of terminals [pcs]
- 2 pc
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor element standard
- EN 60584-2
- Sensor element tolerance
- Class 2
- Temperature range [°C] [max]
- 600 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 1112 °F
- Temperature range [°F] [min]
- -58 °F
- Thermocouple
- 1 X NiCr-Ni, Type K
- Thermocouple design std.
- EN 61515
- Thermocouple tolerance
- EN 60584-2 Class 2
- Used for product
- MBT 153
- Wires [pcs]
- 2 pc
Standards & Compliance
- Standard
- EN 60584-2
- Size / Series
- 273 mm insertion
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection, insertion 273 mm matches the application before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 120 sensor pocket (thermowell), 100 mm insertion, G 1/2 (code 084Z4419)
Danfoss
Danfoss MBT 120 sensor pocket (thermowell), 50 mm insertion, G 1/2
084Z4420
Danfoss
Danfoss MBT 120 sensor pocket (thermowell), 80 mm insertion, G 1/2 (code 084Z4421)
Danfoss

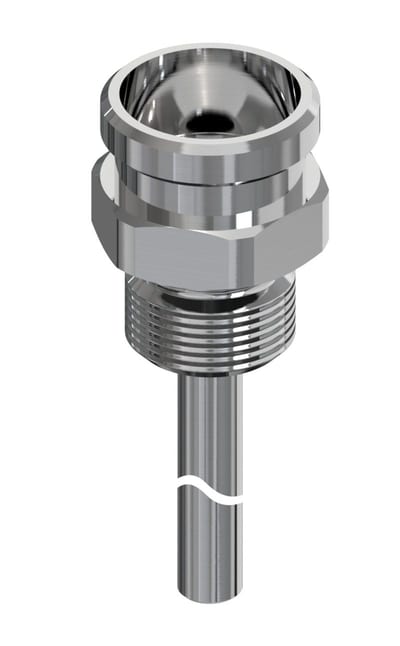

Danfoss MBT 120 sensor pocket (thermowell), 100 mm insertion, G 1/2 (code 084Z4422)
Danfoss
Danfoss Terminal box — temperature-sensor accessory
084Z4423
Danfoss

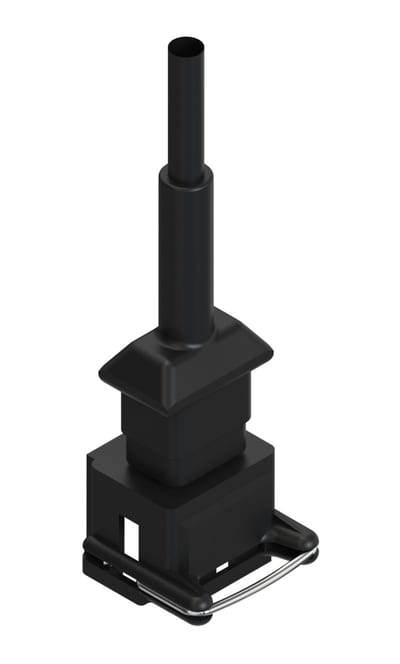

Danfoss Electrical connector — temperature-sensor accessory (code 084Z4459)
Danfoss

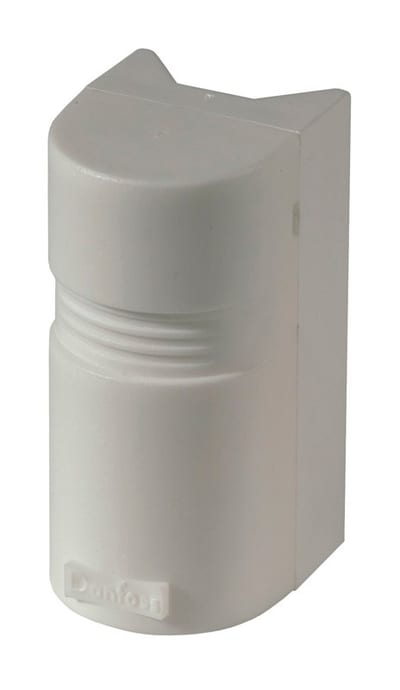

Danfoss ESM-10 room temperature sensor Pt 1000
087B1164
Danfoss

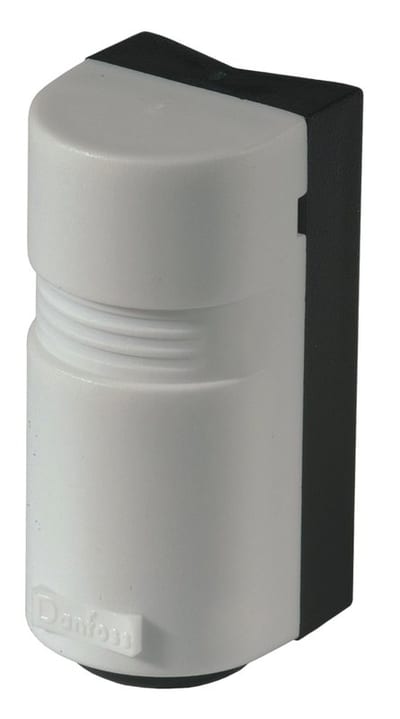

Danfoss ESM-11 surface / pipe temperature sensor Pt 1000
