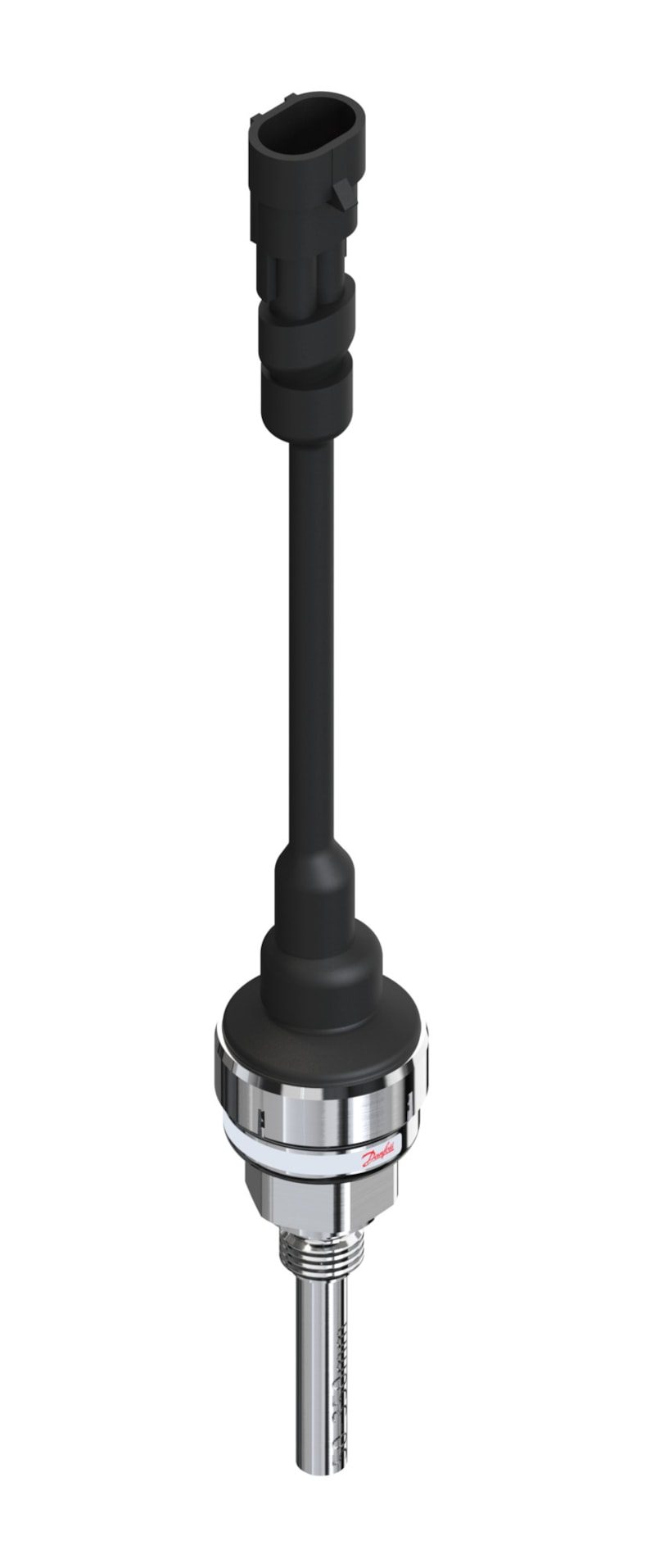

Danfoss MBT 3560 temperature transmitter, Pt 1000, 50 mm insertion, G 1/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3560 insertion temperature transmitter, code 084Z4236 (type designation MBT 3560-0000-0050-EC-A10). Compact sensor with an integrated 2-wire, loop-powered transmitter delivering a factory-scaled 4-20 mA output for refrigeration, HVAC and machinery temperature control. Sensor element: Pt 1000 (1000 ohm at 0 °C) platinum RTD. Insertion length 50 mm. Process connection G 1/4 (ISO 228-1-A), Stainless steel. Transmitter setting range -25 to 100 °C. Output 4-20 mA (2-wire, loop-powered). Electrical connection AMP SuperSeal, 2 pin. Enclosure IP65. Net weight 0.065 kg / gross 0.077 kg. Supplied industrial pack, 28 pc. CE marked. EAN 5702424536893. OEM P/N 084Z4236. Interchangeable order code: 084Z4237 (identical specification, alternative packing).
Technical Specifications
- Type
- Danfoss MBT 3560 — Temperature transmitter
- Type designation
- MBT 3560-0000-0050-EC-A10
- Code number
- 084Z4236
- Interchangeable order code
- 084Z4237
- Product group
- Sensors
- Sensor element
- Pt 1000 (1000 ohm at 0 °C) platinum RTD
- Insertion length
- 50 mm
- Process connection
- G 1/4 (ISO 228-1-A)
- Process connection material
- Stainless steel
- Transmitter setting range
- -25 to 100 °C
- Output signal
- 4-20 mA (2-wire, loop-powered)
- Electrical connection
- AMP SuperSeal, 2 pin
- Enclosure rating
- IP65
- Packing format
- Industrial pack
- Quantity per pack
- 28 pc
- Net weight
- 0.065 kg
- Gross weight
- 0.077 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702424536893
Standards & Compliance
- Size / Series
- 50 mm insertion
- Material
- Stainless steel protection tube
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -25 to 100 °C
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
MBT built-in transmitter (4-20 mA, 2-wire). Confirm the -25 to 100 °C output scaling matches the receiving controller/PLC, a 10-32 V DC loop supply is available, and the insertion length (50 mm) / process thread (G 1/4 (ISO 228-1-A)) suit the mounting boss.
Product Documentation
More from Danfoss
Danfoss

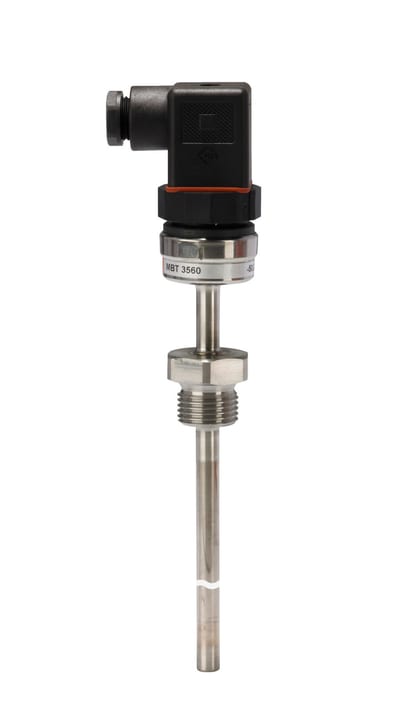

Danfoss MBT 3560 temperature transmitter, Pt 1000, 80 mm insertion, NPT 1/2-14 (code 084Z4239)
Danfoss

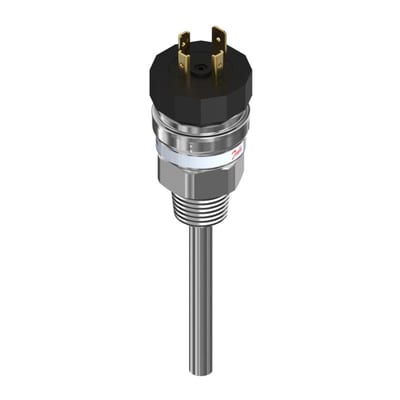

Danfoss MBT 3560 temperature transmitter, Pt 1000, 80 mm insertion, NPT 1/2-14 (code 084Z4240)
Danfoss

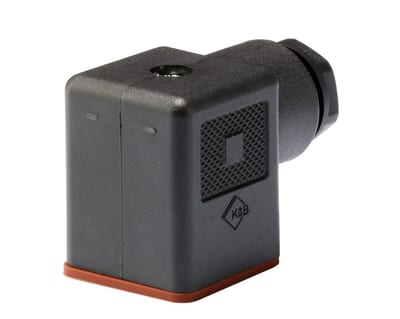

Danfoss Electrical connector — temperature-sensor accessory (code 084Z4364)
Danfoss

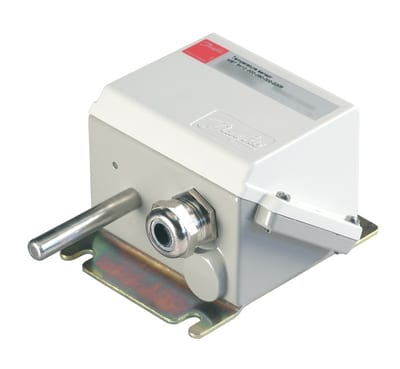

Danfoss MBT 5410 temperature sensor, Pt 100
084Z4368
Danfoss
Danfoss Cable gland spare part — temperature-sensor accessory
084Z4383
Danfoss

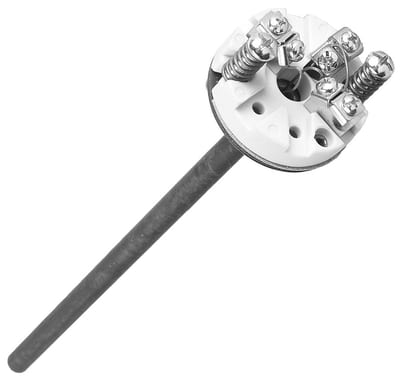

Danfoss MBT 113 temperature sensor, Thermocouple, 273 mm insertion
084Z4388
Danfoss

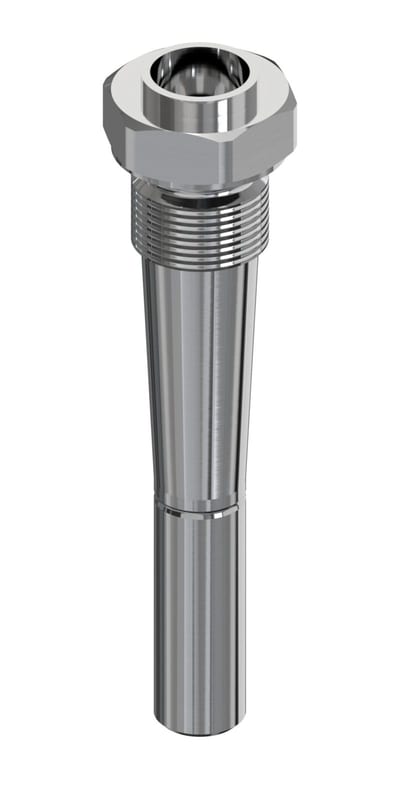

Danfoss MBT 120 sensor pocket (thermowell), 100 mm insertion, G 1/2 (code 084Z4419)
Danfoss

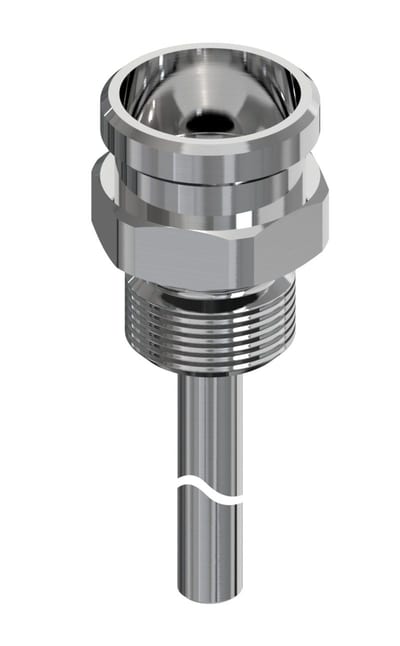

Danfoss MBT 120 sensor pocket (thermowell), 50 mm insertion, G 1/2
