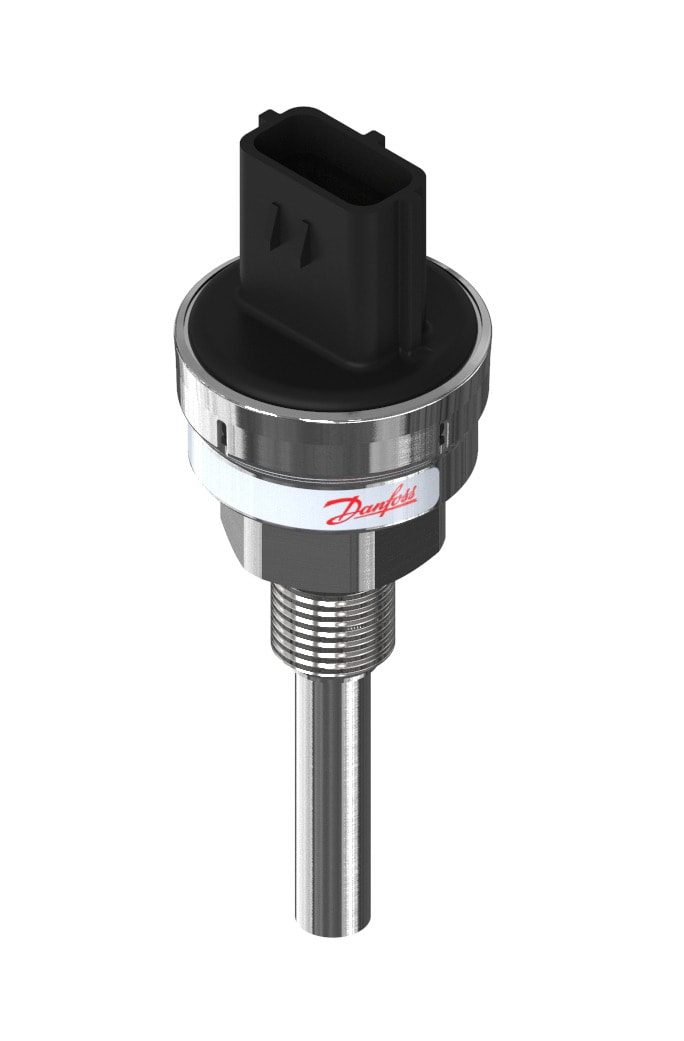

Danfoss MBT 3560 temperature transmitter, Pt 1000, 50 mm insertion, M 14X1.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3560 insertion temperature transmitter, code 084Z4230 (type designation MBT 3560-0100-0050-4B-415). Compact sensor with an integrated 2-wire, loop-powered transmitter delivering a factory-scaled 4-20 mA output for refrigeration, HVAC and machinery temperature control. Sensor element: Pt 1000 (1000 ohm at 0 °C) platinum RTD, tolerance < ± 1% FS. Insertion length 50 mm. Process connection M 14x1.5 (ISO 228-1-A), Stainless steel. Transmitter setting range -50 to 150 °C. Output 4-20 mA (2-wire, loop-powered). Electrical connection AMP EconoSeal, 3 pin. Enclosure IP67. Net weight 0.07 kg / gross 0.121 kg. Supplied multi pack, 13 pc. CE marked. EAN 5702428679510. OEM P/N 084Z4230.
Technical Specifications
- Type
- Danfoss MBT 3560 — Temperature transmitter
- Type designation
- MBT 3560-0100-0050-4B-415
- Code number
- 084Z4230
- Product group
- Sensors
- Sensor element
- Pt 1000 (1000 ohm at 0 °C) platinum RTD
- Element tolerance
- < ± 1% FS
- Insertion length
- 50 mm
- Process connection
- M 14x1.5 (ISO 228-1-A)
- Process connection material
- Stainless steel
- Transmitter setting range
- -50 to 150 °C
- Output signal
- 4-20 mA (2-wire, loop-powered)
- Electrical connection
- AMP EconoSeal, 3 pin
- Enclosure rating
- IP67
- Packing format
- Multi pack
- Quantity per pack
- 13 pc
- Net weight
- 0.07 kg
- Gross weight
- 0.121 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702428679510
Standards & Compliance
- Size / Series
- 50 mm insertion
- Material
- Stainless steel protection tube
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to 150 °C
- IP Rating
- IP67
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
MBT built-in transmitter (4-20 mA, 2-wire). Confirm the -50 to 150 °C output scaling matches the receiving controller/PLC, a 10-32 V DC loop supply is available, and the insertion length (50 mm) / process thread (M 14x1.5 (ISO 228-1-A)) suit the mounting boss.
