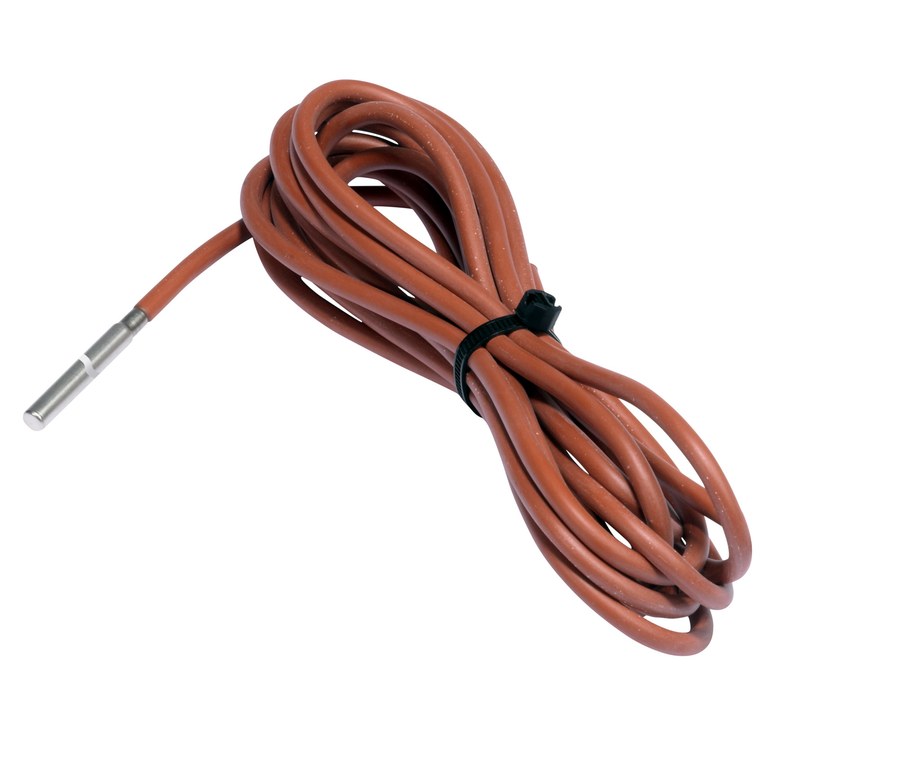

Danfoss MBT 153 temperature sensor, Pt 100
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 153 insertion temperature sensor, code 084Z4219 (type designation MBT 153-2002-0160). Direct resistance/Ohm (resistance / direct RTD) output sensor for refrigeration, HVAC and industrial temperature measurement. Sensor element: Pt 100 (100 ohm at 0 °C) platinum RTD, tolerance Class B. Measuring range -50 to 200 °C. Output Ohm (resistance / direct RTD). Electrical connection Cable, 2 wire. Enclosure IP68. Net weight 0.052 kg / gross 0.055 kg. Supplied multi pack, 20 pc. CE marked. EAN 5702428046459. OEM P/N 084Z4219.
Technical Specifications
- Type
- Danfoss MBT 153 — Temperature sensor
- Type designation
- MBT 153-2002-0160
- Code number
- 084Z4219
- Product group
- Sensors
- Sensor element
- Pt 100 (100 ohm at 0 °C) platinum RTD
- Element tolerance
- Class B
- Element standard
- EN 60751
- Measuring range
- -50 to 200 °C
- Output signal
- Ohm (resistance / direct RTD)
- Electrical connection
- Cable, 2 wire
- Enclosure rating
- IP68
- Packing format
- Multi pack
- Quantity per pack
- 20 pc
- Net weight
- 0.052 kg
- Gross weight
- 0.055 kg
- Approvals
- CE
- EU RoHS
- Yes
- Lifecycle status
- Current
- EAN
- 5702428046459
- Approval
- CE
- Cable length [in]
- 63 in
- Cable length [m]
- 1.6 m
- Cable tempr. range [°C] [max]
- 200 °C
- Cable tempr. range [°C] [min]
- -60 °C
- Cable tempr. range [°F] [max]
- 392 °F
- Cable tempr. range [°F] [min]
- -76 °F
- Cable type
- Silicone
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP68
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 305
- REACH Candidate List substances
- No
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Standard
- EN 60751
- Temperature Range
- -50 to 200 °C
- IP Rating
- IP68
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection matches the application before ordering.
Product Documentation
More from Danfoss
Danfoss

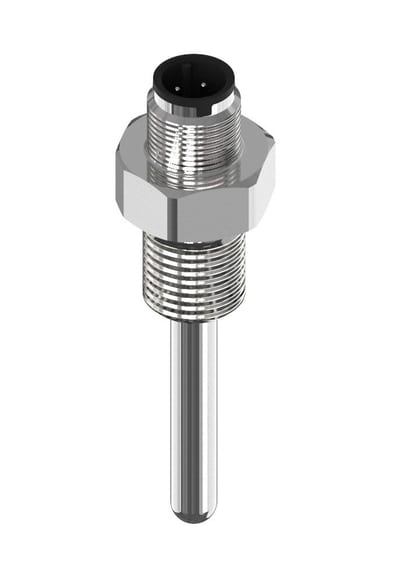

Danfoss MBT 3270 temperature sensor, Pt 100, 50 mm insertion, G 1/4
084Z4220
Danfoss

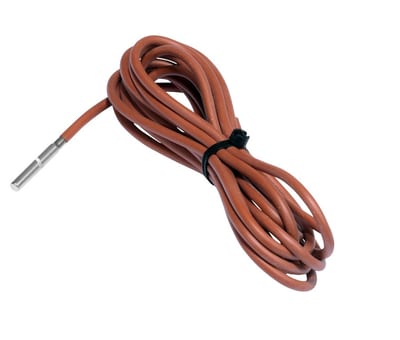

Danfoss MBT 153 temperature sensor, Pt 1000
