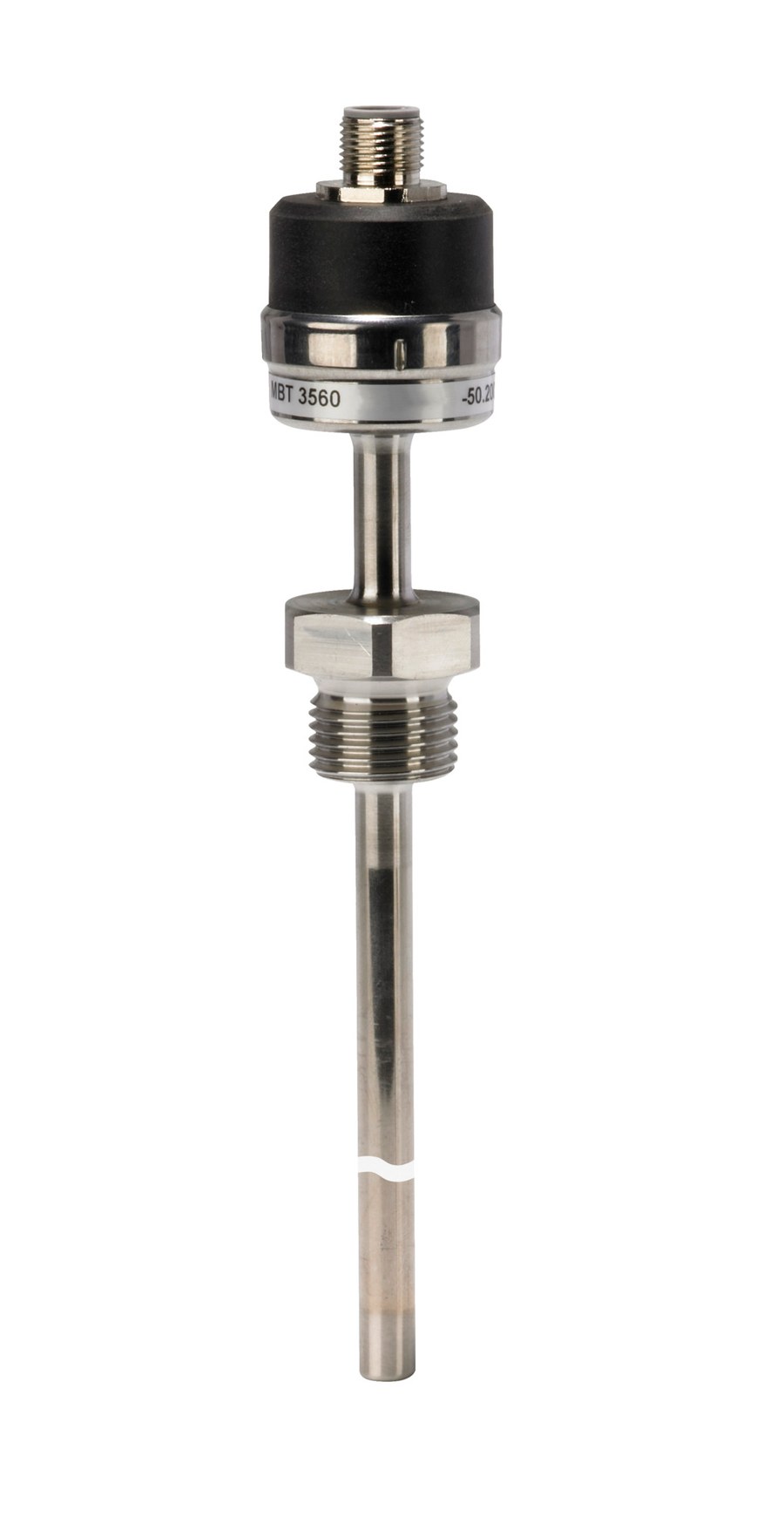

Danfoss MBT 3560 temperature sensor, Pt 1000, 100 mm insertion, M 12X1.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3560 insertion temperature sensor, code 084Z4224 (type designation MBT 3560-0001-0100-69415). Direct resistance/RTD output sensor for refrigeration, HVAC and industrial temperature measurement. Sensor element: Pt 1000 (1000 ohm at 0 °C) platinum RTD, tolerance < ± 1% FS. Insertion length 100 mm. Process connection M 12x1.5, Stainless steel. Measuring range -50 to 150 °C. Electrical connection M12 x 1, 4 pin. Enclosure IP65. Net weight 0.099 kg / gross 0.147 kg. Supplied multi pack, 13 pc. CE marked. EAN 5702428527385. OEM P/N 084Z4224.
Technical Specifications
- Type
- Danfoss MBT 3560 — Temperature sensor
- Type designation
- MBT 3560-0001-0100-69415
- Code number
- 084Z4224
- Product group
- Sensors
- Sensor element
- Pt 1000 (1000 ohm at 0 °C) platinum RTD
- Element tolerance
- < ± 1% FS
- Insertion length
- 100 mm
- Process connection
- M 12x1.5
- Process connection material
- Stainless steel
- Measuring range
- -50 to 150 °C
- Electrical connection
- M12 x 1, 4 pin
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 13 pc
- Net weight
- 0.099 kg
- Gross weight
- 0.147 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702428527385
Standards & Compliance
- Size / Series
- 100 mm insertion
- Material
- Stainless steel protection tube
- Temperature Range
- -50 to 150 °C
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection (M 12x1.5), insertion 100 mm matches the application before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 5116 temperature sensor, Pt 1000, 200 mm insertion, G 3/4 (code 084Z4225)
Danfoss
Danfoss MBT 5116 temperature sensor, Pt 1000, 100 mm insertion, G 3/4 (code 084Z4226)
Danfoss
Danfoss MBT 5113 temperature sensor, Thermocouple, 300 mm insertion, G 3/4
084Z4227
Danfoss
Danfoss MBT 5560 temperature transmitter, 109 mm insertion, G 1/4
084Z4228
Danfoss
Danfoss MBT 5560 temperature transmitter, Pt 1000, 50 mm insertion, G 1/2
084Z4229
Danfoss
Danfoss MBT 3560 temperature transmitter, Pt 1000, 50 mm insertion, M 14X1.5
084Z4230
Danfoss
Danfoss MBT 3560 temperature transmitter, Pt 1000, 40 mm insertion, M 14X1.5
084Z4234
Danfoss

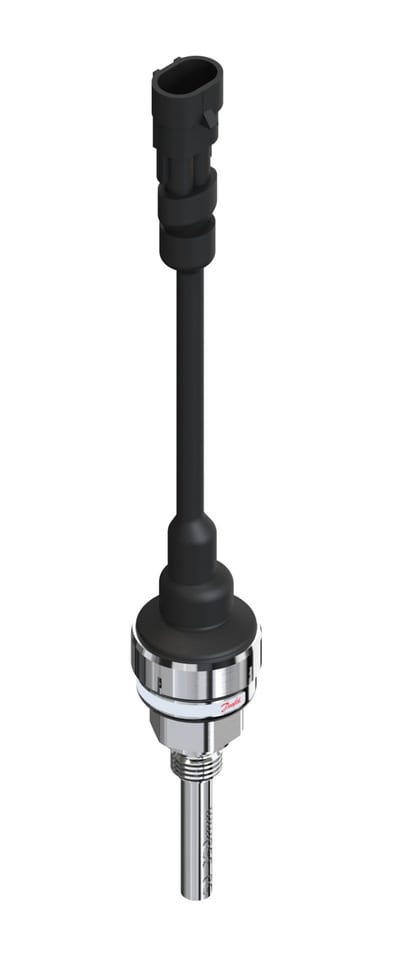

Danfoss MBT 3560 temperature transmitter, Pt 1000, 50 mm insertion, G 1/4
