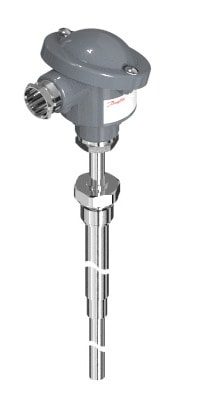

Danfoss MBT 5252 temperature sensor, Pt 100, 350 mm insertion, G 1/2
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5252 insertion temperature sensor, code 084Z4223 (type designation MBT 5252-0041-0350-0200-0000). Direct resistance/RTD output sensor for refrigeration, HVAC and industrial temperature measurement. Sensor element: Pt 100 (100 ohm at 0 °C) platinum RTD, tolerance Class B. Insertion length 350 mm. Process connection G 1/2 (ISO 228-1-A), Stainless steel. Measuring range -40 to 120 °C. Electrical connection Type B, Pg 16. Enclosure IP65. Net weight 0.621 kg / gross 0.631 kg. Supplied multi pack, 8 pc. CE marked. EAN 5702428508155. OEM P/N 084Z4223.
Technical Specifications
- Type
- Danfoss MBT 5252 — Temperature sensor
- Type designation
- MBT 5252-0041-0350-0200-0000
- Code number
- 084Z4223
- Product group
- Sensors
- Sensor element
- Pt 100 (100 ohm at 0 °C) platinum RTD
- Element tolerance
- Class B
- Element standard
- EN 60751
- Insertion length
- 350 mm
- Process connection
- G 1/2 (ISO 228-1-A)
- Process connection material
- Stainless steel
- Measuring range
- -40 to 120 °C
- Electrical connection
- Type B, Pg 16
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 8 pc
- Net weight
- 0.621 kg
- Gross weight
- 0.631 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702428508155
Standards & Compliance
- Standard
- EN 60751
- Size / Series
- 350 mm insertion
- Material
- Stainless steel protection tube
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -40 to 120 °C
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection (G 1/2 (ISO 228-1-A)), insertion 350 mm matches the application before ordering.
