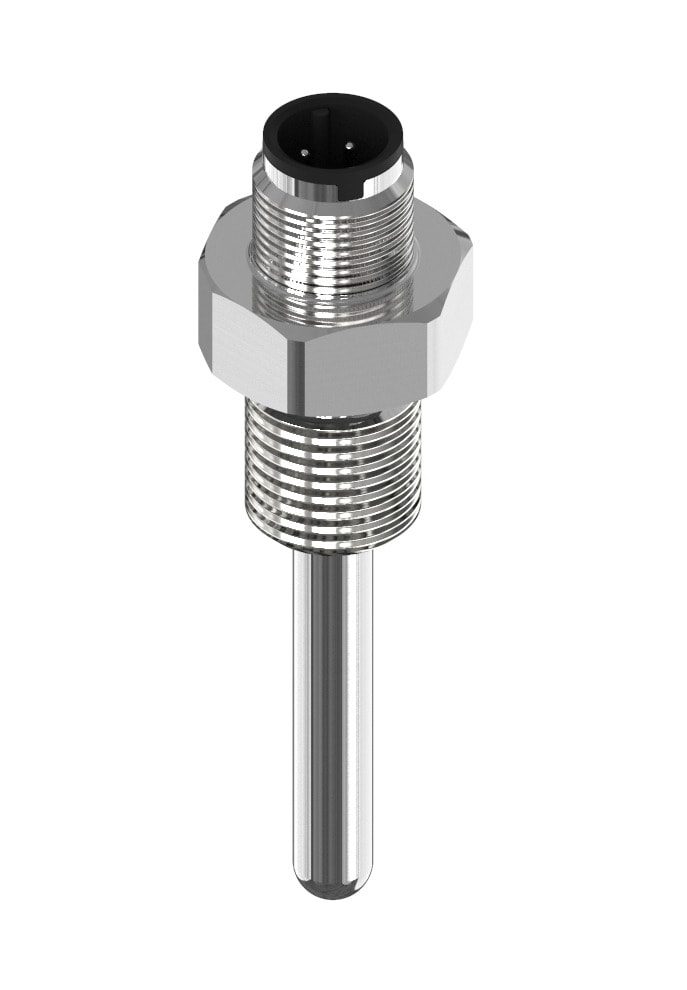

Danfoss MBT 3270 temperature sensor, Pt 100, 50 mm insertion, G 1/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 insertion temperature sensor, code 084Z4220 (type designation MBT 3270-0002-050-00H20). Direct resistance/Ohm (resistance / direct RTD) output sensor for refrigeration, HVAC and industrial temperature measurement. Sensor element: Pt 100 (100 ohm at 0 °C) platinum RTD, tolerance Class B. Insertion length 50 mm. Process connection G 1/4 (ISO 228-1-A), AISI 316. Measuring range -50 to 150 °C. Output Ohm (resistance / direct RTD). Electrical connection M12 x 1, 4 pin. Enclosure IP65. Net weight 0.034 kg / gross 0.035 kg. Supplied multi pack, 40 pc. CE marked. EAN 5715162830727. OEM P/N 084Z4220.
Technical Specifications
- Type
- Danfoss MBT 3270 — Temperature sensor
- Type designation
- MBT 3270-0002-050-00H20
- Code number
- 084Z4220
- Product group
- Sensors
- Sensor element
- Pt 100 (100 ohm at 0 °C) platinum RTD
- Element tolerance
- Class B
- Element standard
- EN 60751
- Insertion length
- 50 mm
- Process connection
- G 1/4 (ISO 228-1-A)
- Process connection material
- AISI 316
- Measuring range
- -50 to 150 °C
- Output signal
- Ohm (resistance / direct RTD)
- Electrical connection
- M12 x 1, 4 pin
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 40 pc
- Net weight
- 0.034 kg
- Gross weight
- 0.035 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5715162830727
Standards & Compliance
- Standard
- EN 60751
- Size / Series
- 50 mm insertion
- Material
- AISI 316 protection tube
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to 150 °C
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection (G 1/4 (ISO 228-1-A)), insertion 50 mm matches the application before ordering.
