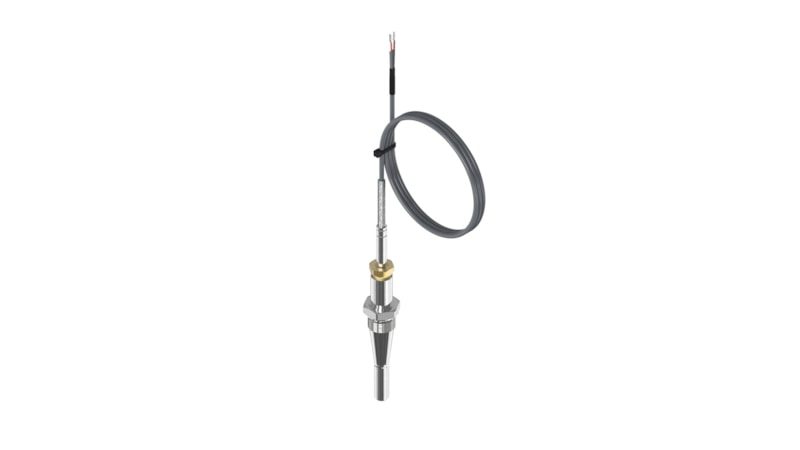

Danfoss MBT 5116 temperature sensor, Pt 1000, 100 mm insertion, G 3/4 (code 084Z4215)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5116 insertion temperature sensor, code 084Z4215 (type designation MBT 5116-C221-100-100-300). Direct resistance/Ohm (resistance / direct RTD) output sensor for refrigeration, HVAC and industrial temperature measurement. Sensor element: Pt 1000 (1000 ohm at 0 °C) platinum RTD, tolerance Class B. Insertion length 100 mm. Process connection G 3/4 (ANSI/ASME B1.20.1), AISI 316 Ti. Output Ohm (resistance / direct RTD). Electrical connection Cable, 2 wire. Enclosure IP65. Net weight 0.237 kg / gross 0.534 kg. Supplied multi pack, 9 pc. CE marked. EAN 5702428517904. OEM P/N 084Z4215.
Technical Specifications
- Type
- Danfoss MBT 5116 — Temperature sensor
- Type designation
- MBT 5116-C221-100-100-300
- Code number
- 084Z4215
- Product group
- Sensors
- Sensor element
- Pt 1000 (1000 ohm at 0 °C) platinum RTD
- Element tolerance
- Class B
- Element standard
- EN 60751
- Insertion length
- 100 mm
- Process connection
- G 3/4 (ANSI/ASME B1.20.1)
- Process connection material
- AISI 316 Ti
- Output signal
- Ohm (resistance / direct RTD)
- Electrical connection
- Cable, 2 wire
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 9 pc
- Net weight
- 0.237 kg
- Gross weight
- 0.534 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702428517904
Standards & Compliance
- Standard
- EN 60751
- Size / Series
- 100 mm insertion
- Material
- AISI 316 Ti protection tube
- Thread Standard
- ANSI/ASME B1.20.1
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection (G 3/4 (ANSI/ASME B1.20.1)), insertion 100 mm matches the application before ordering.
