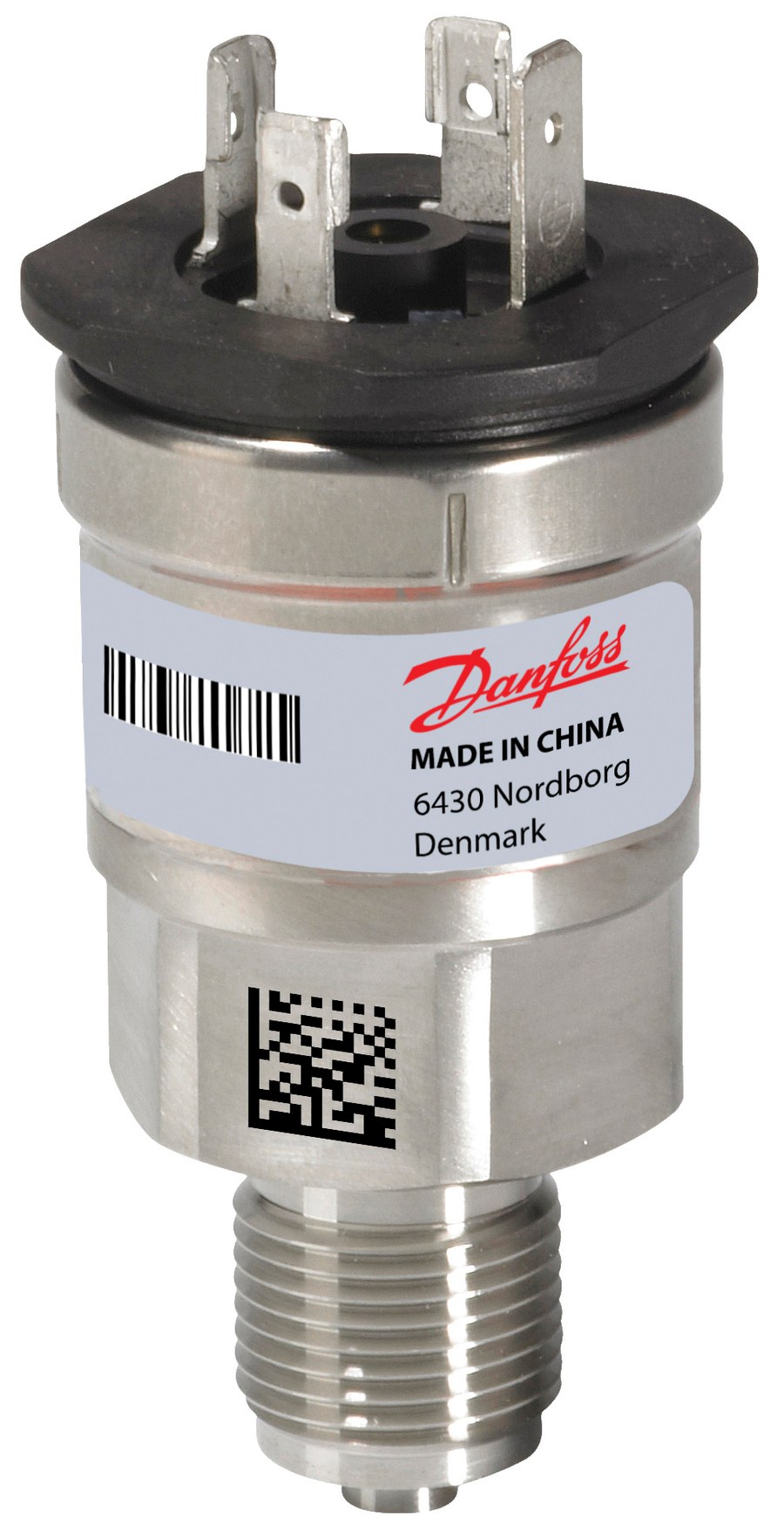

Danfoss MBS 3000 Pressure Transmitter 0-0.3 bar G1/4 angular 4-pin (060G6467)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6467. Measuring range 0 to 0.3 bar (0 to 4.35 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/4 male pressure connection; Angular connector 4-pin male (EN 175301-803-A). Reference gauge, enclosure IP65. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428931854. P/N 060G6467.
Specifications
- Part number
- 060G6467
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 0.3 bar (0 to 4.35 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP65
- Thread standard
- G 1/4 male
Compatibility
MBS 3000 low-range transmitter, 0 to 0.3 bar gauge, G1/4 port with 4-pin angular EN 175301-803-A plug.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
