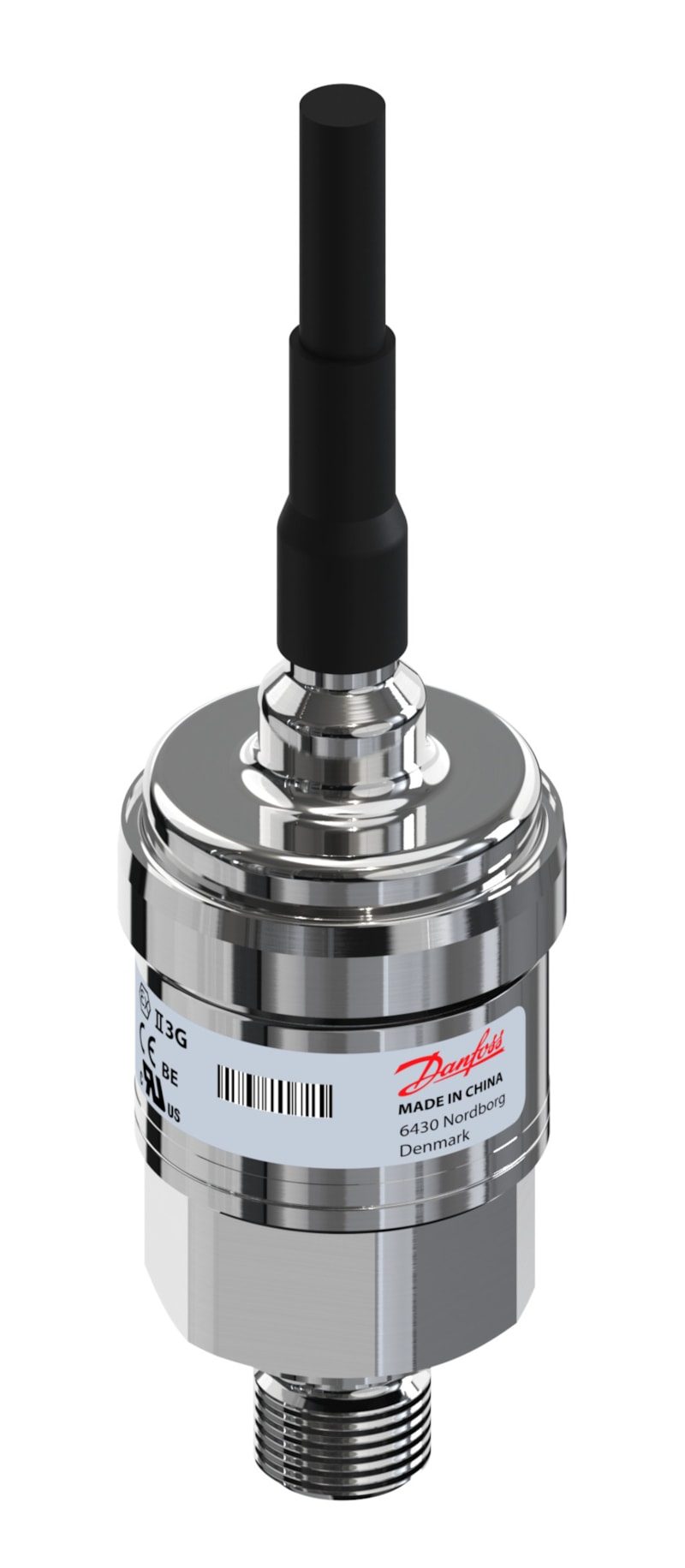

Danfoss MBS 3000 Pressure Transmitter 0-0.4 bar G1/4 cable 2m (060G6472)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6472. Measuring range 0 to 0.4 bar (0 to 5.8 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/4 male pressure connection; Cable outlet 2 m, screened. Reference gauge, enclosure IP67. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428933810. P/N 060G6472.
Specifications
- Part number
- 060G6472
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 0.4 bar (0 to 5.8 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP67
- Thread standard
- G 1/4 male
Compatibility
MBS 3000 low-range transmitter, 0 to 0.4 bar gauge, G1/4 port with 2 m screened cable outlet.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
