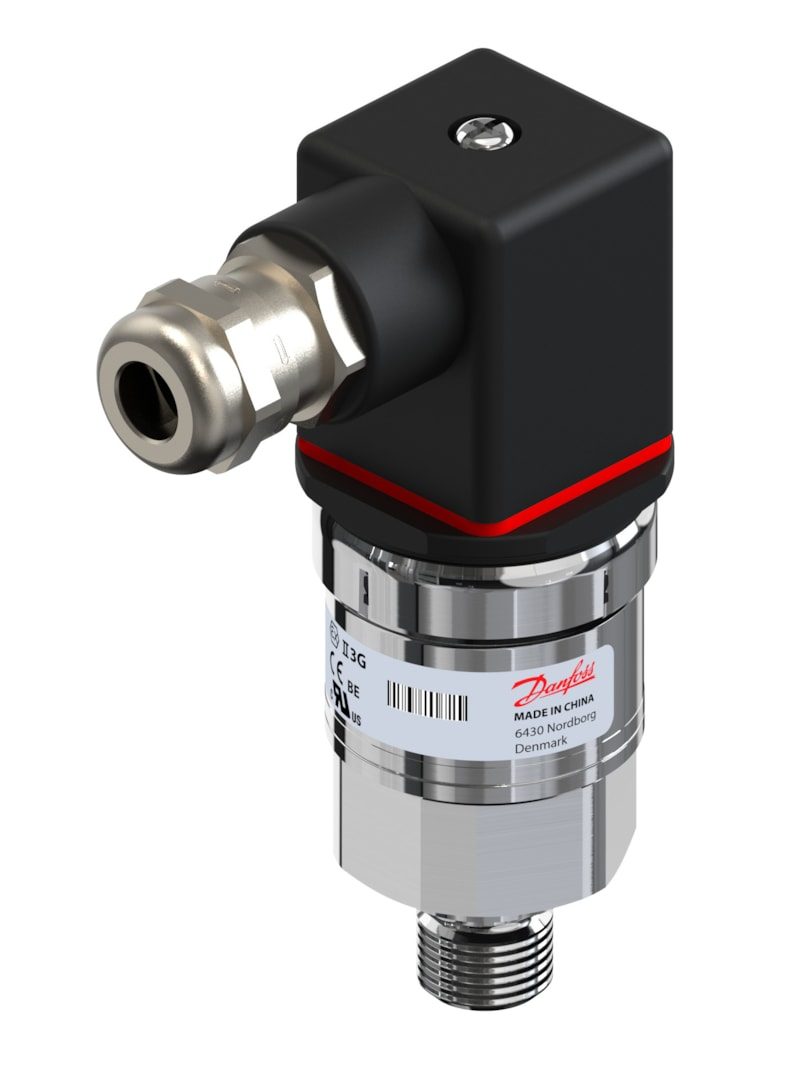

Danfoss MBS 3350 Pressure Transmitter 0-16 bar G1/4 PG9
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3350 pressure transmitter, genuine OEM code 060G6481. Measuring range 0 to 16 bar (0 to 232 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/4 male (ISO 1179-2, Form E) pressure connection; Angular connector Pg 9 male, steel cable gland (EN 175301-803-A). Reference gauge, enclosure IP65. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428937351.
Technical Specifications
- Type
- MBS 3350
- Range
- 0 to 16 bar (0 to 232 psi)
- Reference
- gauge
- Output
- 4-20 mA (2-wire)
- Supply
- 9-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- G 1/4 male (ISO 1179-2, Form E)
- Electrical connection
- Angular connector Pg 9 male, steel cable gland (EN 175301-803-A)
- Enclosure
- IP65
- Ambient temp
- -40 to +85 C
- Medium temp
- -40 to +125 C
- Response time
- 4 ms max
- Approvals
- C UL US; CE; UL; EAC; RoHS
- EAN
- 5702428937351
- Part number
- 060G6481
- Net weight
- 0.164 Kilogram
- Product group
- Sensors
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 100 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 212 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- PG9 steel cable gland
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702428937351
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.5 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 96 bar
- Overload pressure max. [psi]
- 1392 psi
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 3852-E
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 16 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 232 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- Yes
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3350-2211-J7GB04-2
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- G 1/4 male (ISO 1179-2, Form E)
- Pressure Rating
- 0 to 16 bar (0 to 232 psi)
- Temperature Range
- -40 to +125 C (medium)
- IP Rating
- IP65
- Classification / Approval
- C UL US; CE; UL; EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3350 heavy-duty transmitter, 0 to 16 bar gauge, G1/4 Form E port with angular Pg9 steel-gland plug.
