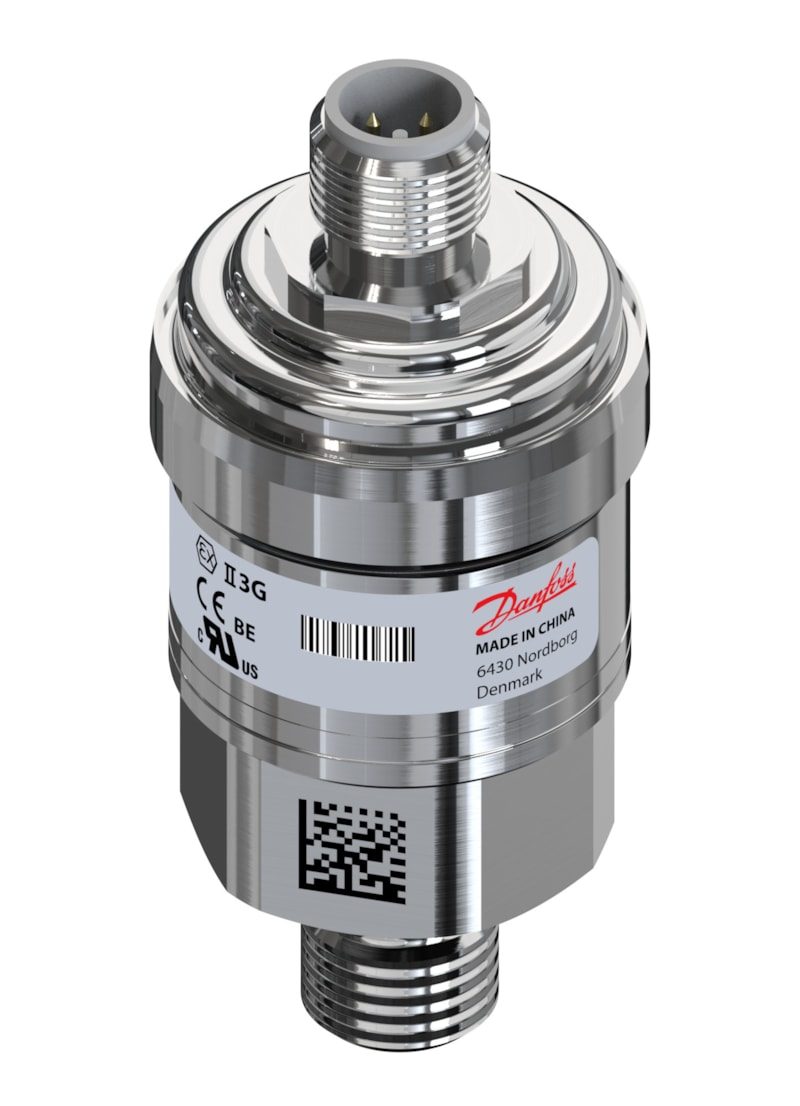

Danfoss MBS 3200 Pressure Transmitter 0-10 bar Absolute 1-10 V M12

Danfoss MBS 3200 pressure transmitter, genuine OEM code 060G6623. Measuring range 0 to 10 bar (0 to 145 psi), 1-10 V output, AISI 316L stainless steel wetted parts. G 1/4 male (DIN 3852-E, ISO 1179-2 Form E), 27 mm hex pressure connection; M12 x 1 male (4-pin, IEC 61076-2-101). Reference absolute, enclosure IP67. CE; UL Recognized; C UL US.; EAN 5702428997164.

Type

MBS 3200

Range

0 to 10 bar (0 to 145 psi)

Reference

absolute

Output

1-10 V

Supply

15-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

G 1/4 male (DIN 3852-E, ISO 1179-2 Form E), 27 mm hex

Electrical connection

M12 x 1 male (4-pin, IEC 61076-2-101)

Enclosure

IP67

Ambient temp

-25 to +90 C

Medium temp

-40 to +125 C

Response time

4 ms max

Approvals

CE; UL Recognized; C UL US

EAN

5702428997164

Part number

060G6623

Net weight

0.136 Kilogram

Product group

Sensors

+ output

Pin 3

+ supply

Pin 1

- common

Pin 4

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

90 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

194 °F

Ambient temperature range [°F] [min]

-13 °F

Approval

C UL US UL Recognized

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

11.35

In scope of WEEE

Yes

International Article Number

5702428997164

Intrinsically safe

No

Low Clipping level

0.1

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Voltage

Output signal [V] [max]

10 V

Output signal [V] [min]

1 V

Overload pressure max. [bar]

60 bar

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Absolute

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3200-2027-E3GB04-1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

15 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

G 1/4 male (DIN 3852-E, ISO 1179-2 Form E), 27 mm hex

Pressure Rating

0 to 10 bar (0 to 145 psi)

Temperature Range

-40 to +125 C (medium)

IP Rating

IP67

Classification / Approval

CE; UL Recognized; C UL US

HS Code

9026.20
