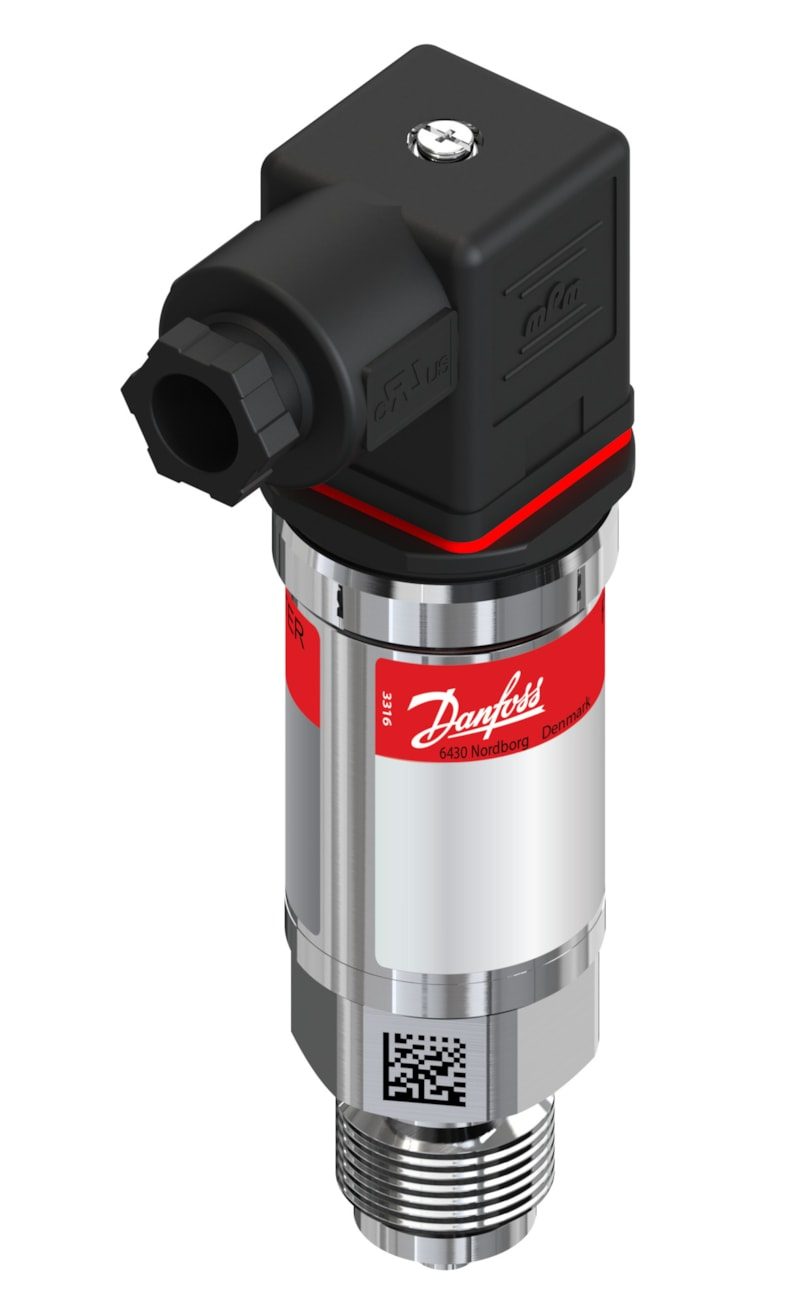

Danfoss MBS 4251 Pressure Transmitter 0-4 bar Absolute G1/2 (060G6632)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 4251 pressure transmitter, genuine OEM code 060G6632. Measuring range 0 to 4 bar (0 to 58 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/2 male (EN 837), 27 mm hex pressure connection; Angular connector (EN 175301-803-A, Pg 9). Reference absolute, enclosure IP65. ATEX Ex ia IIC; CE; UL Recognized; C UL US. P/N 060G6632; EAN 5702428998697.
Specifications
- Part number
- 060G6632
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 4 bar (0 to 58 psi)
- Temperature range
- 0 to +100 C (compensated) (medium)
- IP rating
- IP65
- Thread standard
- G 1/2 male (EN 837), 27 mm hex
Compatibility
MBS 4251 intrinsically-safe absolute transmitter, 0-4 bar, G1/2 EN837 port, Ex ia IIC.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
